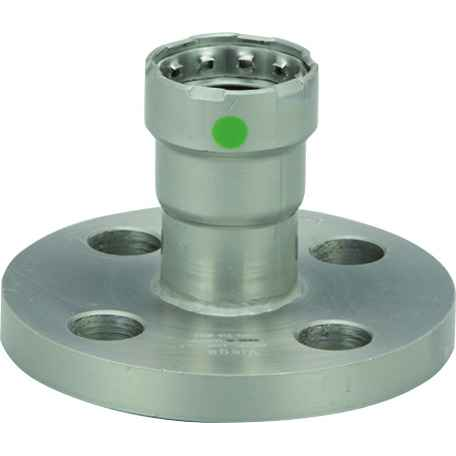

25760 Viega MegaPress flange Smart Connect technology Carbon steel, 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P
- Material Type:
- Carbon Steel
- Product Dimension:
- 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Flanges
- Product Type:
- Tee
- Product Length:
- 4.134"
- Product Height:
- 2.539"
- Product Weight:
- 1.08 lbs
- Product Width:
- 4.134"
- Product Material:
- Carbon steel
Viega 25760 – Frequently Asked Questions
1) What size pipe does the Viega MegaPress 25760 fitting work with?
The Viega MegaPress 25760 is a 1/2 inch carbon steel fitting, so it presses onto 1/2 inch carbon steel pipe. It is a press-connect part, not threaded or welded, so you need the matching 1/2 inch MegaPress jaw on your press tool to make the joint.
2) Can I use a MegaPress carbon steel fitting on copper or stainless pipe?
No. The 25760 is built from carbon steel for carbon steel (black iron) pipe systems. Copper tube takes a ProPress copper fitting and stainless takes a stainless press fitting; mixing a carbon steel press fitting onto copper is the wrong material pairing and is not what this part is made for.
3) Do I still need to thread or weld pipe if I use the Viega 25760?
No cutting oil, threading, or welding. MegaPress joints are made cold with a press tool, which is the main reason crews use them for retrofit work in occupied buildings where a hot work permit or a torch is a problem. Prep is cut square, deburr, mark insertion depth, press.
4) What does Viega Smart Connect mean on this fitting?
Smart Connect is Viega's feature that lets an unpressed connection leak visibly during pressure testing, so an installer finds a missed joint on test rather than after the walls close up. It is built into the 25760 MegaPress fitting.
5) How much clearance do I need to install the Viega 25760?
The fitting itself measures 4.134 x 4.134 x 2.539 inches and weighs 1.08 lbs. Plan your rough-in around that envelope plus room for the press tool jaw to swing around the pipe, which is usually the tighter constraint in a joist bay or behind a unit heater.
