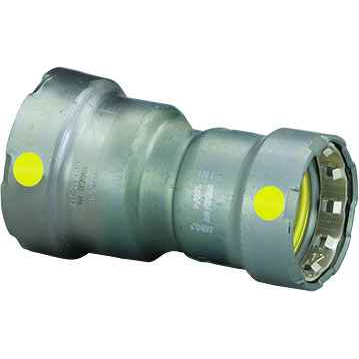

25936 Viega MegaPressG reducer Smart Connect technology Carbon steel, 1'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Carbon Steel
- Product Dimension:
- 1'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 3.791"
- Product Height:
- 1.78"
- Product Weight:
- 0.485 lbs
- Product Width:
- 1.78"
- Product Material:
- Carbon steel
Viega 25936 – Frequently Asked Questions
1) What sizes does the Viega MegaPressG 25936 reducer connect?
The 25936 is a 1 inch by 1/2 inch carbon steel reducing fitting, so it takes a 1 inch press run down to a 1/2 inch branch or outlet. Both ends are press connections (P1 x P2), not threaded, so the pipe ends get pressed with a MegaPress jaw rather than cut and threaded.
2) Is the Viega 25936 for gas or for water lines?
MegaPressG is Viega's gas-rated press system, and the 25936 is a MegaPressG carbon steel fitting. The G designation is what separates it from standard MegaPress fittings used on water and hydronic lines. If you are pressing black iron gas pipe, this is the right family; for potable water on carbon steel you would be looking at the non-G MegaPress line.
3) Can I thread this Viega reducer onto existing black pipe?
No. The 25936 has press ends on both sides (P1 x P2), so it slips over prepared pipe and is crimped with a press tool and the correct jaw. There are no threads on it. If you need to tie into an existing threaded run, you need a press x FNPT or press x MNPT adapter at that point, then run press fittings from there.
4) What does Smart Connect technology do on this Viega fitting?
Smart Connect is the feature built into the 25936 that makes an unpressed connection leak intentionally during pressure testing, so an installer can spot a joint that got skipped before the system is charged. On a gas line with dozens of joints behind a wall, that is the whole point of the feature.
5) How much room do I need to fit the Viega 25936 in a tight joist bay?
The fitting itself measures 3.791 inches long and 1.78 inches in both height and width, and weighs 0.485 lbs. Remember to allow clearance beyond that for the press jaw to close around the ring, which is the real constraint in a tight bay, not the fitting body.
