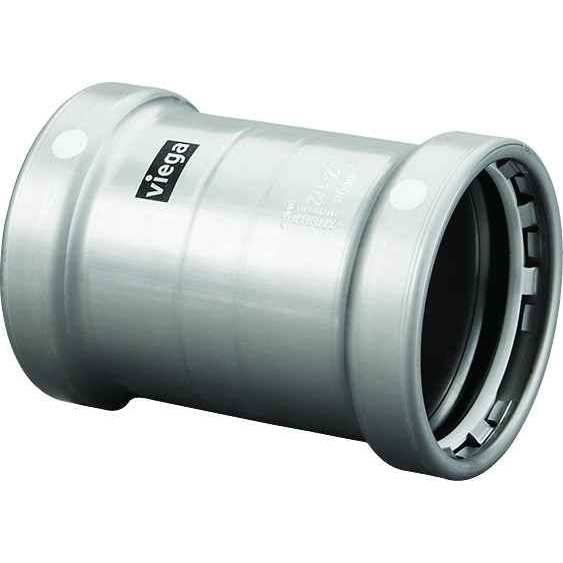

26695 Viega MegaPress coupling No stop Smart Connect technology Carbon steel, 4'' x 4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Country Of Origin:
- Made In Germany
- Material Type:
- Carbon Steel
- Product Dimension:
- 4'' x 4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.913"
- Product Height:
- 5.193"
- Product Weight:
- 3.945 lbs
- Product Width:
- 5.193"
Viega 26695 – Frequently Asked Questions
1) What size pipe does the Viega MegaPress 26695 coupling join?
The MegaPress 26695 is a 4 inch by 4 inch carbon steel coupling, so it joins two runs of 4 inch pipe end to end. Both ends are press connections (P1 x P2), not threaded or grooved.
2) What does "no stop" mean on a MegaPress coupling, and when do I need that version?
A no-stop coupling has no internal shoulder in the middle, so the fitting can slide fully onto one pipe end and then be pushed back over the joint. That is what you use for a repair or a tie-in where neither pipe end can be moved apart. A coupling with a stop is for new work where you can bring both ends into the fitting and seat them against the shoulder. The 26695 is the no-stop 4 inch by 4 inch version.
3) What is Smart Connect on the Viega 26695 and does it change how I press it?
Smart Connect is Viega's unpressed-connection feature: an unpressed fitting will leak visibly during pressure test so it gets caught before the system is buttoned up. It does not change the press procedure. You still deburr, mark insertion depth, seat the pipe fully, and run one complete press cycle with the correct 4 inch jaw.
4) What part number do I order for the Viega 4 inch no-stop MegaPress coupling?
Order Viega part 26695. That is the manufacturer part number for the 4 inch by 4 inch carbon steel MegaPress no-stop coupling, and the fitting is made in Germany.
5) Do I need anything else besides the coupling to make the joint?
The sealing element comes installed in the fitting, so nothing is added to the coupling itself. What you supply is the press tool with a 4 inch MegaPress jaw or ring and actuator, plus pipe prep tools: a square cut, a deburred end inside and out, and a depth mark on the pipe. Since the 26695 is a no-stop body, mark both insertion depths and center the coupling on the joint before pressing.
