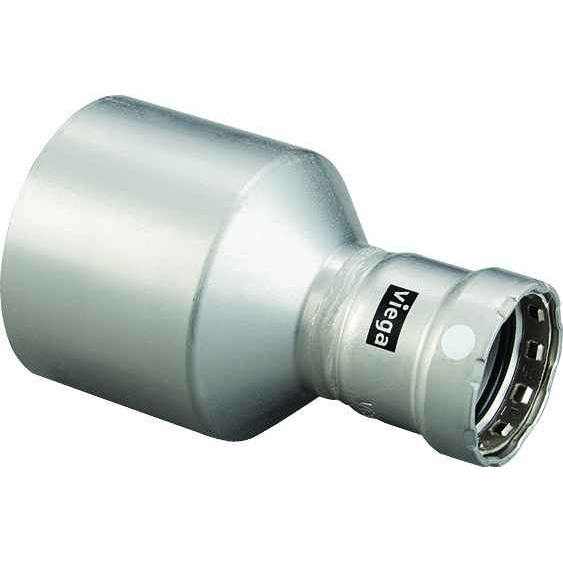

26755 Viega MegaPress reducer Smart Connect technology Carbon steel, 4'' x 3''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Country Of Origin:
- Made In Germany
- Material Type:
- Carbon Steel
- Product Dimension:
- 4'' x 3''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.331"
- Product Height:
- 5.193"
- Product Weight:
- 3.262 lbs
- Product Width:
- 5.193"
Viega 26755 – Frequently Asked Questions
1) What do the FTG and P ends mean on the Viega 26755 MegaPress reducer?
The 26755 is an FTG x P fitting. The FTG end is sized to slip inside a fitting socket rather than over pipe, and the P end is a press socket that goes over the pipe and gets crimped with a press tool. So one side mates into another fitting, the other side takes pipe.
2) Can I use the Viega MegaPress 26755 on copper or PEX?
No. It is a carbon steel MegaPress fitting, meant for black iron / carbon steel pipe systems. Copper lines need a copper press fitting and PEX needs a PEX system fitting. Using a carbon steel press fitting on copper is the wrong material pairing.
3) Is the Viega 26755 a 4 inch to 3 inch reducing fitting?
Yes, it reduces 4 inch to 3 inch. That is the size pairing on this part, so it is the one to grab when you are stepping a 4 inch carbon steel run down to 3 inch.
4) How much room do I need to fit the Viega 26755 MegaPress reducer in a tight chase?
Plan on 7.331 inches of length and 5.193 inches in both height and width. On large-diameter press fittings the bigger constraint is usually swinging the press tool jaw or ring around the socket, so allow clear working space around the crimp point, not just the fitting envelope.
5) Does the Viega 26755 need to be soldered or threaded?
Neither. MegaPress is a cold press joint, made with a press tool and jaw on the pipe, no flame, no threading, no cutting oil. That is the main reason crews use it on occupied buildings where a hot work permit is a problem.
6) What is Smart Connect on the Viega 26755?
Smart Connect is Viega's unpressed-joint feature: a connection that has not been pressed will leak visibly during pressure testing, so an installer can find the missed crimp before the walls close up. It is on the 26755 MegaPress reducer as supplied.
7) Where is the Viega 26755 MegaPress fitting made?
Made in Germany. For submittal packages on government and institutional jobs that ask for country of origin, that is the value to record alongside the Viega part number 26755.
