Thomas & Betts B225R-UPC 2G 25 CU IN OLD WORK BOX

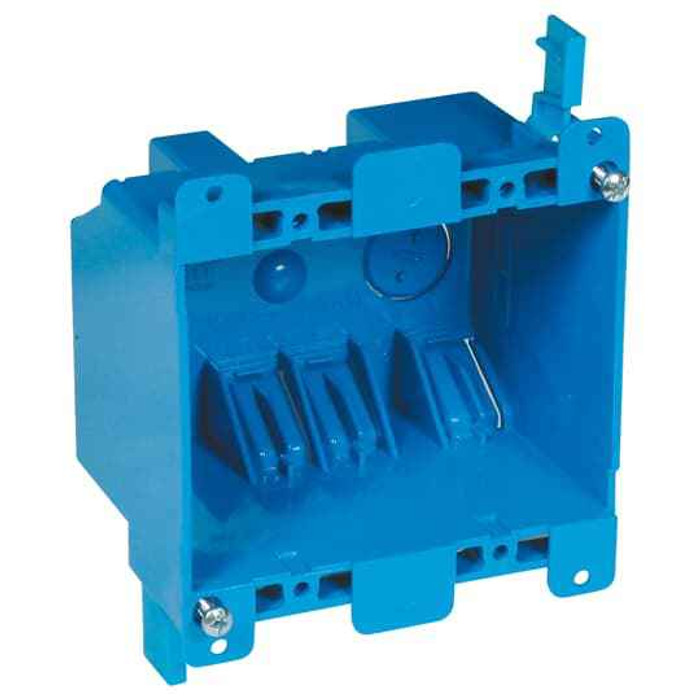

Carlon Outlet Box 2-Gang 25 Cubic Inch PVC Old Work Electrical Box

(No reviews yet) Write a Review

Model: B225R-UPC
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$91.54
$6.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Outlet Box 2-Gang 25 Cubic Inch PVC Old Work Electrical Box

Professional Electrical Box Solution for Retrofit Applications

The Thomas & Betts 2-Gang 25 Cubic Inch PVC Old Work Electrical Box delivers reliable outlet box performance for retrofit electrical installations. This PVC electrical box provides dependable performance designed for electrical contractors, industrial facilities, and commercial installations, offering the trusted performance and quality that professionals expect from America's established electrical infrastructure manufacturer.

Professional Features & Benefits

Construction Performance

  • 25 Cubic Inch Capacity - Provides ample wiring space for 2-gang electrical device installations with professional wire management
  • PVC Construction - Delivers corrosion resistance and durability for long-term electrical box performance in various environments
  • 2-Gang Configuration - Accommodates dual electrical devices with proper spacing and professional installation requirements
  • Old Work Design - Engineered for retrofit applications in existing walls with secure mounting capabilities

Installation Advantages

  • Retrofit Application - Designed specifically for old work installations in existing construction
  • Professional Mounting - Provides secure attachment methods for reliable electrical box installation
  • Code Compliance - Meets electrical standards for safe and compliant electrical installations

Technical Specifications

Volume: 25 cubic inches, Material: PVC, Configuration: 2-Gang, Application: Old Work, Product Type: Outlet Boxes, Product Group: Electrical Boxes, Department: Electrical, Standards: UL E11461

Installation & Usage

  1. Mark and cut appropriate opening in existing wall for 2-gang electrical box installation
  2. Insert electrical box into wall opening ensuring proper fit and alignment
  3. Secure mounting tabs or brackets according to manufacturer specifications
  4. Route electrical cables through appropriate knockouts or cable entries
  5. Install electrical devices ensuring proper connection and grounding
  6. Verify all connections meet electrical code requirements before energizing circuit

Professional Applications

Ideal for:

  • Retrofit Installations - Old work applications in existing residential and commercial buildings
  • Electrical Renovations - Upgrading electrical systems in established structures with minimal wall damage
  • Commercial Construction - Professional electrical installations requiring 2-gang outlet configurations
  • Residential Upgrades - Adding electrical outlets and switches in existing home electrical systems
  • Industrial Facilities - Electrical box installations in manufacturing and industrial environments
  • Contractor Applications - Professional electrical work requiring reliable and code-compliant electrical boxes
  • Facility Maintenance - Electrical system maintenance and upgrades in commercial and industrial facilities
  • Electrical Infrastructure - Building electrical systems requiring durable and professional electrical boxes

PVC Construction Advantage

Thomas & Betts selection of PVC material provides excellent corrosion resistance and durability for electrical box applications, ensuring long-term performance in various environmental conditions while maintaining electrical safety standards.

Why Choose Thomas & Betts Quality?

With decades of established experience in electrical infrastructure, Thomas & Betts maintains unwavering commitment to professional quality standards and trusted reliability for electrical contractors and facility managers. This electrical box represents the proven engineering and manufacturing excellence that has made Thomas & Betts a cornerstone of American electrical infrastructure development.

Manufacturer Resources

Product Specs

Idea Granular Category Code Igcc :
4433 >> Outlet box
Product Group:
Electrical Boxes
Product Type:
Outlet Boxes
Selling Unit Of Measure:
each
Standards:
UL E11461
Volume:
25 in³
Department:
Electrical
Product Subgroup:
Electrical Boxes
Product Color:
Blue
Product Material:
PVC

Carlon B225R-UPC – Frequently Asked Questions

1) Will the Thomas & Betts B225R-UPC old work box fit in an existing finished wall, or does it need to be nailed to a stud?
Old work is exactly what the B225R-UPC is for. You cut the opening in existing drywall or plaster, drop the box in, and secure it against the back face of the wall material, no stud access and no opening up the wall. If you are framing new construction and have studs exposed, you want a new work box with a nail-on bracket instead, because that mounts to the stud and sets the box depth off the framing before the drywall goes on.
2) How many wires can I legally put in a 25 cubic inch 2-gang electrical box?
Volume is 25 cubic inches, and that number is what drives your box fill calculation. Under the NEC fill allowances, 14 AWG counts 2.00 cubic inches per conductor and 12 AWG counts 2.25, with each device (receptacle or switch) counting double its largest conductor and all grounds together counting as one. So a 2-gang box at 25 cubic inches gives real room for two devices plus a couple of cable runs. Do the count for your own conductor size before you stuff it, since a 2-gang box with two devices and three or four cables gets tight fast.
3) Is the Thomas & Betts B225R-UPC box UL listed for commercial and institutional work?
Yes, it carries UL listing under file E11461. For an MRO or institutional spec that calls for a listed nonmetallic outlet box, that file number is what your inspector or spec reviewer is looking for.
4) Can I use a PVC old work box for a metal-clad or armored cable run?
No. The B225R-UPC is PVC, a nonmetallic box, and nonmetallic boxes are used with nonmetallic-sheathed cable where the equipment grounding conductor in the cable carries the ground. MC and AC cable, and any conduit run that relies on the raceway for grounding continuity, need a metallic box with a proper connector and grounding means. If your existing wall has MC in it, order a steel old work box instead.
5) Will a 2-gang PVC box hold a receptacle and a switch side by side, or two switches?
Any two standard-size devices. The 2-gang configuration gives two device positions on standard yoke spacing, so a receptacle beside a switch, two switches, two receptacles, or a device plus a low-voltage insert all mount the same way. Cover plate is a standard 2-gang plate matched to whatever pair of devices you install.
6) Is the blue Thomas & Betts B225R-UPC box the same kind of box as the blue boxes already in my apartment walls?
Most likely, yes. Blue is the standard color convention for nonmetallic PVC device boxes, and this one is blue PVC in a 2-gang, 25 cubic inch size. If you are a property manager pulling out a damaged 2-gang box in a unit and the existing one is blue plastic, this is the same family of part, in the old work version so you can swap it without cutting the wall open to the studs.
7) Do I need to buy anything else with the Thomas & Betts B225R-UPC to finish the install?
The box is sold each, so plan on the rest of the job separately: a 2-gang cover plate, the devices themselves, and cable staples or clamps as your method requires. Nonmetallic boxes typically use built-in cable entries rather than separate connectors, so you route the cable through the entry and secure it per code. If you need several openings done, order the count you need since each line is a single box.
8) Will a PVC electrical box hold up in a damp basement or a corrosive industrial area?
PVC is the reason to pick it over steel in those spots. The material does not rust or corrode the way a painted steel box does in humid basements, laundry areas, or plants where there is chemical exposure in the air. That said, this is a dry-location device box for interior walls, not a weatherproof enclosure. Anything wet or exposed to the weather needs an in-use rated outdoor box, not a nonmetallic old work box.
