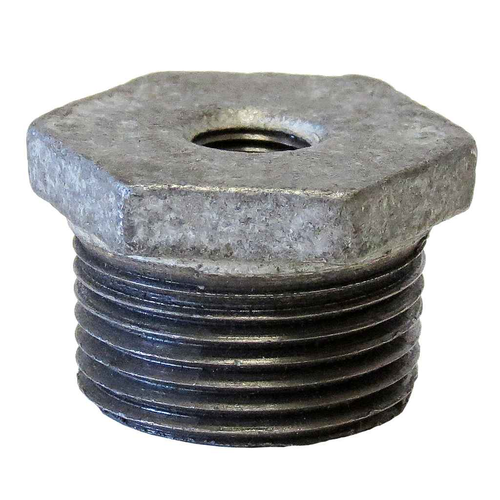

2X11/2 GALV MI HEX BUSHING
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- MPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 1.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Bushings
- Product Type:
- Bushing
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.65 lbs
ASC Engineered Solutions 319907689 – Frequently Asked Questions
1) What sizes does the ASC Engineered Solutions galvanized hex bushing reduce between?
It takes a 2 inch male pipe thread down to a 1-1/2 inch female pipe thread. The large end (2 inch) threads into a 2 inch female port or coupling, and the 1-1/2 inch female end accepts your 1-1/2 inch male pipe or nipple. Part number 319907689.
2) Are the threads on this 2 x 1-1/2 hex bushing standard NPT?
Yes. Threads are cut to ASME B1.20.1, which is the standard NPT taper thread spec, so the bushing mates with any standard NPT iron pipe, nipple, or fitting in those sizes. Use pipe dope or PTFE tape on the taper as usual.
3) Can I use this malleable iron bushing on a fire sprinkler system?
It is UL/FM listed, which is the approval fire protection contractors need for sprinkler and standpipe piping. Body is malleable iron to ASTM A-197 with a hot dip galvanized finish to ASTM A-153, and it is a standard (STD) pressure class per ASME B16.3. Confirm the class against the pressure on your riser drawing.
4) Is a galvanized hex bushing OK for outdoor or wet-service pipe runs?
The hot dip galvanized coating is applied to ASTM A-153, the standard for zinc coating on iron hardware, so it is suited to damp, outdoor, and other corrosive-service runs where black malleable iron would rust. Pair it with galvanized pipe and fittings; mixing galvanized and black in the same run defeats the purpose.
5) Will this bushing meet a spec calling for ASME B16.3 malleable iron threaded fittings?
Yes. Dimensions and pressure class both follow ASME B16.3, the standard for malleable iron threaded fittings, with material to ASTM A-197 and threads to ASME B1.20.1. That is the combination most commercial mechanical specs cite for threaded iron fittings.
6) How much does the 2 x 1-1/2 inch galvanized hex bushing weigh for a freight estimate?
0.65 lbs each. Handy if you are pricing out a bulk order of reducers for a job and need a shipping weight.
