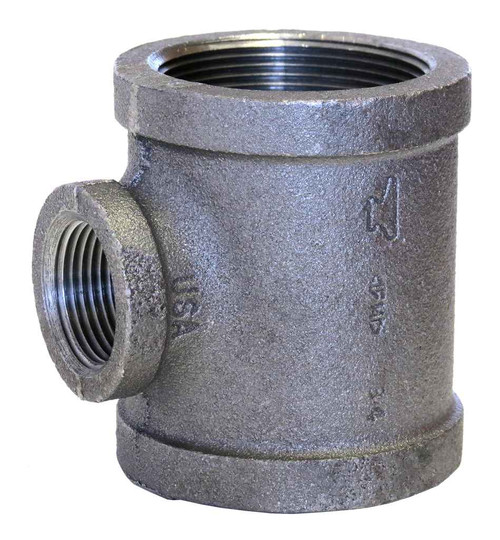

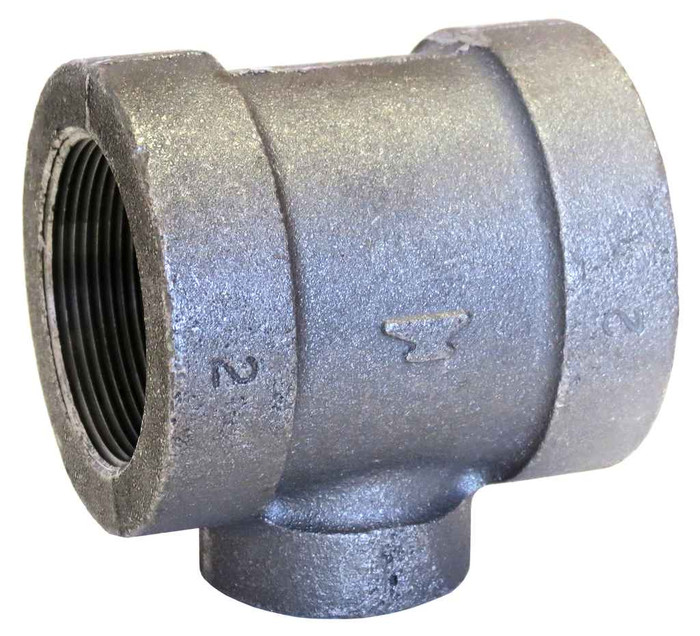

2X11/2X2 XH BLK MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 1.5
- Size 3:
- 2
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 4.5 lbs
ASC Engineered Solutions 310526207 – Frequently Asked Questions
1) What are the port sizes on the ASC 310526207 malleable iron tee?
It's a reducing tee: the two run ends are 2 inch and the branch is 1-1/2 inch. All three openings are female pipe thread (FPT), cut to ASME B1.20.1, so it threads onto standard NPT male pipe ends or nipples. Use it where a 2 inch line needs a 1-1/2 inch takeoff without adding a separate bushing.
2) Is this an extra heavy (Class 300) tee or a standard weight fitting?
Extra heavy. The strength rating on the ASC 310526207 tee is XH, which is the heavier malleable iron class, dimensioned and pressure rated to ASME B16.3. Standard weight (Class 150) black malleable fittings are a different part and are not interchangeable on a spec that calls for extra heavy.
3) Do I need a bushing or reducer to land 1-1/2 inch pipe on this tee?
No. The branch is already tapped 1-1/2 inch FPT, so 1-1/2 inch threaded pipe or a nipple goes straight in. Adding a 2 x 1-1/2 bushing to a straight 2 inch tee would give you extra joints and an extra leak path for no benefit.
4) What material spec does this ASC tee meet for a submittal?
The casting meets ASTM A-197 malleable iron, with dimensions and pressure class to ASME B16.3 and threads to ASME B1.20.1. That trio is what most mechanical specs for threaded malleable fittings call out, and the fitting is also UL/FM rated.
5) Will this tee interchange with the 2 x 1-1/2 x 2 malleable tee already in my system?
If the existing fitting is an extra heavy threaded malleable tee, yes, because both are dimensioned to ASME B16.3 with B1.20.1 threads, so center-to-end lengths and thread engagement match. It will not interchange with grooved or welded fittings, and the ends are female only, so you need male pipe or nipples on all three sides.
