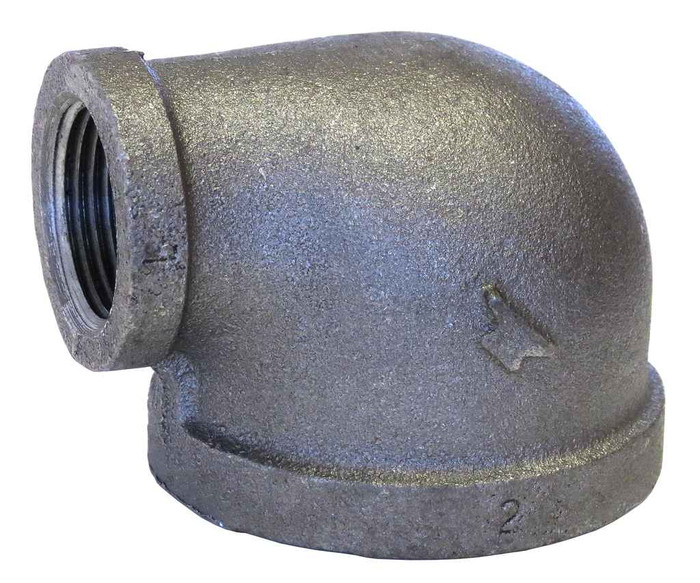

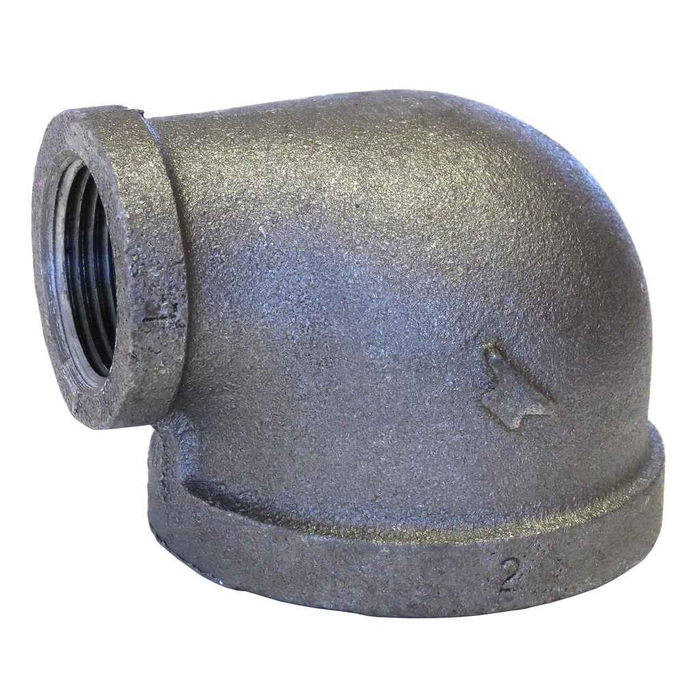

2X3/4 BLK MI 90 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 0.75
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 1.3 lbs
ASC Engineered Solutions 310010806 – Frequently Asked Questions
1) Is the ASC 2 x 3/4 black malleable iron 90 elbow a reducing elbow, and which end is which size?
It's a reducing 90 degree elbow: one end is 2 inch, the other is 3/4 inch, so it turns the run 90 degrees and steps the pipe size down in the same fitting. Both ends are female pipe thread (FPT), so it threads onto male-threaded pipe nipples or male adapters, not onto female ends.
2) Can I use a black malleable iron elbow on a potable water line?
No. Black malleable iron fittings like this one are for gas, fire protection, compressed air, steam, and similar non-potable service. The black finish is an uncoated mill finish with no corrosion protection, so on domestic water it rusts and discolors the water. For potable water, use galvanized, copper, brass, or PEX fittings instead.
3) Is this ASC elbow UL listed and FM approved for a sprinkler system?
Yes, this 2 x 3/4 black malleable iron 90 is carried as UL/FM, which is what a fire protection inspector looks for on threaded fittings in a sprinkler line. It is standard (STD) pattern, pressure rated per ASME B16.3.
4) Is this a Class 150 standard fitting or an extra heavy 300 fitting?
Standard pattern. The strength class is STD, dimensioned and pressure rated to ASME B16.3, which covers Class 150 standard and Class 300 extra heavy malleable iron threaded fittings. If your spec calls for 300 lb extra heavy, this is not the right fitting.
5) Will a reducing elbow with ASME B16.3 dimensions drop into the same space as the one I'm pulling out?
It should. Center-to-end dimensions on malleable iron threaded fittings are standardized by ASME B16.3, so a 2 x 3/4 reducing 90 from any B16.3 manufacturer takes up the same laying length. That means you can swap this into an existing threaded run without re-cutting nipples, as long as the one you removed was also a standard pattern 2 x 3/4 reducing 90.
6) What is the ASC part number for the 2 x 3/4 black malleable iron 90 degree elbow?
The manufacturer part number is 310010806 from ASC Engineered Solutions. That is the number to quote for the 2 x 3/4 black malleable reducing 90.
