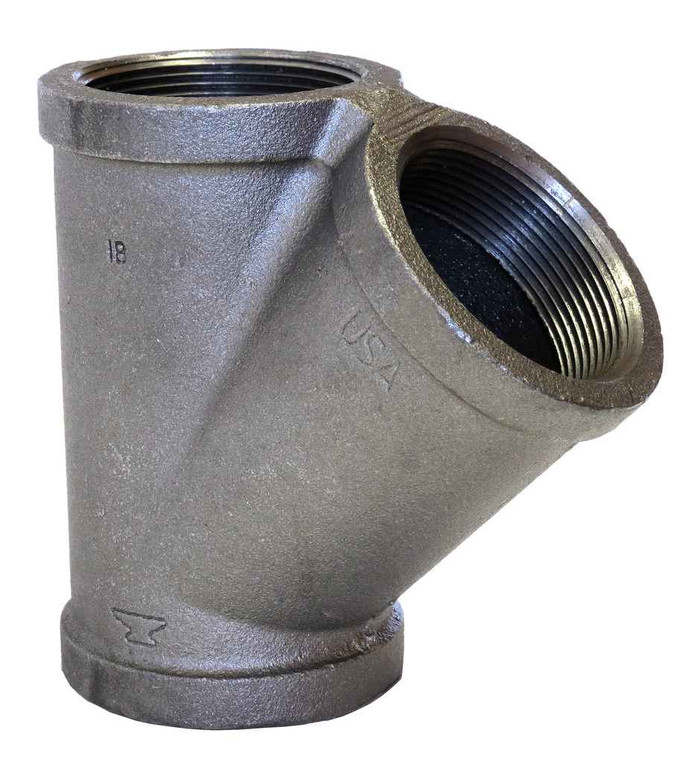

3 BLK MI WYE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 3
- Size 2:
- 3
- Size 3:
- 3
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Other Fittings
- Product Type:
- Fitting
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 9.18 lbs
ASC Engineered Solutions 310068002 – Frequently Asked Questions
1) What size and thread type are the openings on the ASC 3 inch black malleable iron wye?
All three openings are 3 inch FPT, so it takes standard tapered female pipe threads on every branch. Threads are cut to ASME B1.20.1 (NPT), which means it mates with ordinary threaded black steel or malleable iron pipe of the same size. No reducing branch here, it is a straight 3 x 3 x 3 pattern.
2) Can I use a black malleable iron wye on a potable water line?
No. This is black malleable iron, which is used for gas, fire protection, air and non-potable service. Black iron rusts in wet potable service and is not a lead-free fitting. For domestic water you want copper, brass, CPVC or PEX, or galvanized at minimum for non-potable wet lines.
3) Which standards does this ASC malleable iron wye meet for a submittal?
Three specs cover it: dimensions and pressure rating to ASME B16.3, material to ASTM A-197 malleable iron, and threads to ASME B1.20.1. It is also UL/FM. That set is usually what an engineer wants to see on a threaded fittings submittal.
4) Is this a Class 150 standard fitting or an extra heavy 300 pattern?
Standard pattern, which in ASME B16.3 malleable iron is the Class 150 range. If your drawing calls for Class 300 extra heavy, this is not the part, and the two are not dimensionally interchangeable in a made-up run.
5) What do I need besides the fitting to make up the joints on a 3 inch threaded wye?
The wye ships bare with three 3 inch female NPT ports and nothing else. You supply the pipe or nipples threaded to ASME B1.20.1, plus thread sealant or PTFE tape rated for the service (gas-rated sealant if it is a fuel gas line). At 3 inch you also need a pipe wrench with enough bite and a backup wrench so you do not twist the fitting on the run.
6) How heavy is a 3 inch malleable iron wye, and can one person set it?
It weighs 9.18 lbs bare. That is a one-hand lift on the bench, but with 3 inch pipe threaded into two or three of the ports you are well past a one-person overhead hang. Plan supports on both sides of the fitting before you make up the joints.
7) How do I order the right ASC wye, what is the part number?
The manufacturer part number is 310068002, an ASC Engineered Solutions 3 inch black malleable iron wye with 3 x 3 x 3 FPT ends. Quote that number to be sure you get the black standard-pattern wye and not a galvanized or reducing version.
