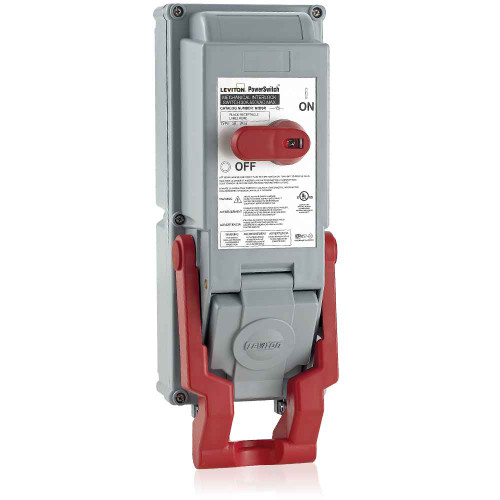

Leviton MIDSR-23 PowerSwitch Mechanically Interlocked Safety Disconnect Switch with Locking Receptacle Bracket, 30A, Rated IP54 & IP66.
Model: LEV-MIDSR-23
PowerSwitch Mechanically Interlocked Safety Disconnect Switch with Locking Receptacle Bracket, 30A, Rated IP54 & IP66.
Features
Bottom hinge mechanism pivots 180 degrees for easy access during...
Leviton
$894.73
$7.39

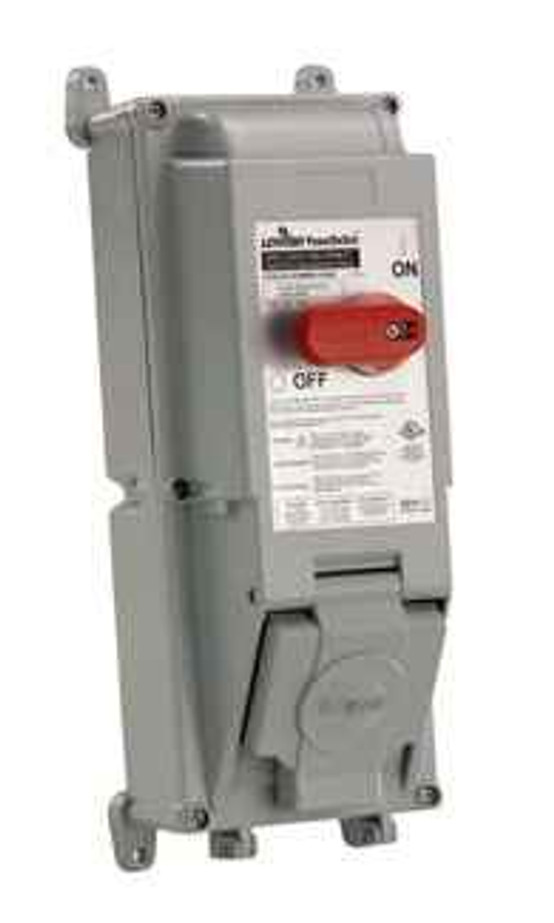

30 Amp Non-Fused PowerSwitch Safety Disconnect Switch with Locking Receptacle Bracket, Rated IP54 & IP66.
Features
- EDSR-23 supplied with: a) Ground Bracket and Green Wire b) 5 pieces of wire accommodating all receptacle - switch connections (1-white, 1-green, 3-black) c) Receptacle Voltage Labels: After receptacle installation, select the matching amperage/voltage combination label and affix to enclosure label. d) Wetguard seal package for use with corrosion resistant receptacles and Wetguard Plugs
- 4 Mounting feet included (5 position settings)
- Space provided for bottom or top conduit entry
- Captive Stainless Steel screws won't fall out when cover is open
- Rated to IP66, Type 4X standards when used with Wetguard seal package and Plugs
- Accepts 20A or 30A, up to 600V, V-0 Max Locking Receptacles (sold separately)
- Bottom hinge mechanism pivots 180 degrees for easy access during installation and maintenance
- Rated to IP54, Type 3R standards when cover is closed
Manufacturer Resources
Technical Information
Product Specs
- Body Material:
- Valox 357
- Handle Material:
- Valox 357
- Hp Rating:
- Receptacle Dependant
- Ip Rating:
- IP 54 Splashproof
- Standards And Certifications:
- UL/CSA
- Product Group:
- Power Distribution
- Department:
- Electrical
- Product Subgroup:
- Safety Switches & Disconnects
- Amperage Rating:
- 30A
- Flammability Class:
- Rated V-0 per UL 94
- Pole:
- 2, 3, or 4
- Product Voltage:
- 600 VAC
- Product Details:
- Non-Fused
- Product Color:
- Grey
- Product Type:
- Disconnect Switch
- Country of Origin:
- Mexico
- Voltage Rating:
- 600V
Leviton EDSR-23 – Frequently Asked Questions
1) Does the Leviton EDSR-23 disconnect switch come with a receptacle, or do I order that separately?
The EDSR-23 ships as the switch and enclosure with a locking receptacle bracket, but the receptacle itself is a separate order. The bracket accepts 20A or 30A locking receptacles rated up to 600V with a V-0 flammability rating. Leviton includes the parts to marry the two: a ground bracket with green wire, five pre-cut wires for the receptacle-to-switch connections (1 white, 1 green, 3 black), amperage/voltage labels to apply once you know which receptacle went in, and a Wetguard seal package for corrosion resistant receptacles and Wetguard plugs. So budget for a receptacle and, if the location is wet, Wetguard plugs on top of the switch.
2) Is the Leviton EDSR-23 rated for outdoor or washdown use?
Two ratings apply depending on how it is built up. With the cover closed, the EDSR-23 meets IP54 and Type 3R, which covers rain and splash on an exterior wall. Add the included Wetguard seal package plus corrosion resistant receptacles and Wetguard plugs, and it goes to IP66 and Type 4X, which is the washdown and hosedown level for food processing, car wash bays and marine-adjacent work. The 4X part matters for corrosive atmospheres, and the body and handle are Valox 357 rather than metal, so there is nothing to rust.
3) How many poles is the Leviton EDSR-23 30 amp disconnect, and will it switch a three phase 480V motor circuit?
The EDSR-23 is offered in 2, 3 or 4 pole configuration and is rated 600 VAC, 30 amps, so a 480V three phase feed is inside its ratings. It is non-fused, meaning it is a motor-circuit disconnecting means only, not overcurrent protection. Your branch circuit still needs its own fuses or breaker upstream. Horsepower rating depends on which locking receptacle you install, not on the switch body.
4) What is the difference between a Leviton EDSR-23 disconnect and a Square D TeSys GS fuse disconnect switch?
The EDSR-23 is a non-fused 30 amp 600 VAC safety disconnect switch, so it breaks the circuit but carries no fuses and relies on upstream overcurrent protection. The Square D TeSys GS is a fuse disconnect switch rated 3-pole, 30A, 600V, so the fuses live in the switch itself. If the drawing calls for fused disconnection at the equipment, the TeSys GS covers it; if overcurrent protection is already handled at the panel, the non-fused EDSR-23 does the disconnecting means.
5) What can I use instead of the Leviton EDSR-23 for a motor disconnect in a washdown or corrosive area?
The Square D MD is a 3-pole motor disconnect switch in a NEMA 4X enclosure, built for the motor disconnecting means at the equipment. The EDSR-23 reaches Type 4X only when the Wetguard seal package and Wetguard plugs are used, and its horsepower rating depends on which locking receptacle is installed in it, since it accepts 20A or 30A locking receptacles up to 600V that are sold separately. Where the load is hard-wired to a motor, the Square D MD is the direct route; where the equipment cord-connects and you want plug disconnection, the EDSR-23 with a receptacle is.
6) Can I run conduit into the top of the Leviton EDSR-23 enclosure, or does it have to come in from the bottom?
Either. Space is provided for bottom or top conduit entry on the EDSR-23 enclosure, so you can feed it from an overhead run or from below without a workaround. Four mounting feet are included with five position settings, which lets you set the standoff off the wall or skid. The bottom hinge pivots a full 180 degrees so the cover swings clear while you are landing conductors and again later for service.
7) Is the Leviton EDSR-23 UL listed, and what is the plastic rated to for flammability?
UL and CSA both apply to the EDSR-23. The enclosure and handle are Valox 357, rated V-0 per UL 94, which is the self-extinguishing class specifiers usually want to see on a non-metallic enclosure in an occupied building. Note the receptacle you install must also be V-0 max to keep the assembly consistent.
8) Will the Leviton EDSR-23 take a 20 amp locking receptacle, or only 30 amp?
Both. The receptacle bracket in the EDSR-23 accepts 20A or 30A locking receptacles up to 600V. The switch itself is a 30 amp device, so a 20A receptacle simply runs below the switch rating. Choose the receptacle to match the equipment cord cap, then apply the matching amperage/voltage label from the label set to the enclosure so the next person servicing it knows the configuration without opening the cover.
9) Is the Square D TeSys VLS rotary handle disconnect a substitute for the Leviton EDSR-23?
They solve different halves of the job. The Square D TeSys VLS is a protruding rotary handle disconnect switch with a 65 x 65 mm handle, an operator-and-switch arrangement typically mounted through an enclosure door. The EDSR-23 is a complete non-fused enclosed unit in a grey Valox 357 body with a matching Valox 357 handle, rated IP54 splashproof with the cover closed, and it carries a bracket for a locking receptacle. If you already have the enclosure and need a rotary operator on it, the VLS is the part; if you need the enclosed switch itself with a receptacle position, the EDSR-23 is.
10) Which 30 amp 600 volt disconnect should I standardize on across a facility, the Leviton EDSR-23 or the Square D TeSys GS?
Both are 30 amp, 600 volt class disconnects, and the choice comes down to pole count and protection. The Square D TeSys GS is fixed at 3-pole and carries fuses. The EDSR-23 is non-fused and covers 2, 3, or 4 pole configurations, is UL/CSA listed, and its enclosure is rated V-0 per UL 94 for flammability. A facility running mixed 2-pole and 4-pole loads consolidates on fewer part numbers with the EDSR-23; a facility that wants local fusing at every drop standardizes on the fused TeSys GS.
11) I need a disconnect rated for outdoor rooftop HVAC equipment - does the Leviton EDSR-23 work or do I need the Square D MD?
The EDSR-23 meets IP54 and Type 3R with the cover closed, and reaches IP66 and Type 4X when the Wetguard seal package and Wetguard plugs are used, with space for bottom or top conduit entry and four mounting feet with five position settings. The Square D MD arrives as a 3-pole motor disconnect in a NEMA 4X enclosure without the receptacle bracket arrangement. For rooftop equipment where a rain-tight Type 3R disconnect is acceptable and the unit cord-connects, the EDSR-23 covers it as supplied; where the specification demands 4X out of the box on a hard-wired 3-pole motor, the Square D MD is the match.
12) Do the cover screws on the Leviton EDSR-23 fall out when you open it up on a ladder?
No. The cover screws on the EDSR-23 are captive stainless steel, so they stay with the cover when it is open. Combined with the 180 degree bottom hinge, you can open it one handed at height without chasing hardware into a mechanical room floor. Stainless also holds up in the same wet and corrosive locations the Type 4X rating targets.
13) What color is the Leviton EDSR-23 disconnect enclosure?
Grey, in Valox 357 for both the body and the handle. That is a non-metallic housing, which is what keeps it viable in corrosive and washdown areas where a painted steel enclosure would start rusting at the fastener holes.
