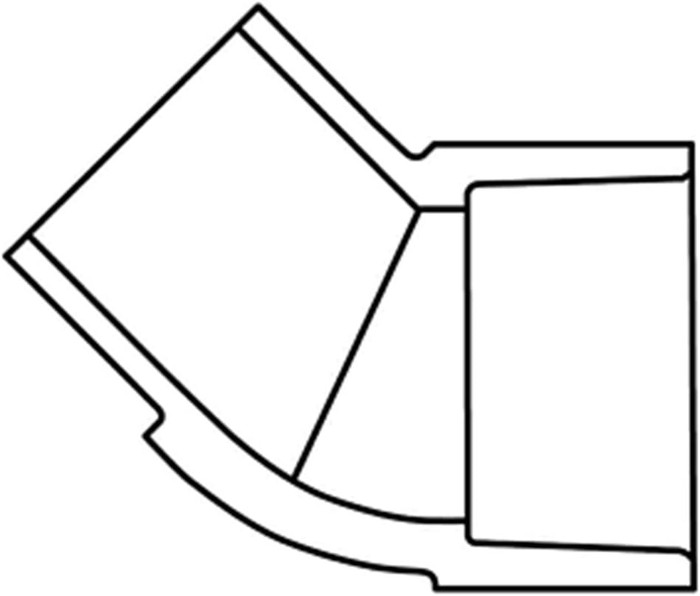

Spears 427-007BC 3/4" PVC 45° Street Elbow, Schedule 40, Spigot x Socket
The Spears 427-007BC is a 3/4" PVC 45° street elbow with a spigot x socket connection, molded from Schedule 40 PVC for corrosion-resistant, long-lasting service. Its street-fitting design lets one end insert directly into another fitting or valve while the socket end accepts a straight pipe run, cutting out an extra coupling and a joint that would otherwise need to be solvent-welded. The result is a lower-profile, more compact 45° direction change that is easier to fit into tight framing, wall cavities, and equipment rooms while still holding to Schedule 40 dimensional standards for dependable pressure and non-pressure piping work.
Key Features
- Trade Size: 3/4" connection sized for compact residential, commercial, and light-industrial piping runs.
- Durable Construction: Molded PVC for corrosion resistance, chemical resistance, and long service life versus metallic fittings.
- Schedule 40 Rated: Built to Schedule 40 wall-thickness dimensions for consistent, code-compliant performance.
- 45° Street Elbow Configuration: Changes direction at a 45° angle without requiring a full-length pipe segment between fittings.
- Spigot x Socket Ends: The spigot end inserts directly into a fitting, valve, or coupling while the socket end receives a straight pipe, simplifying transitions in space-constrained installations.
- Solvent-Weld Joints: Designed for solvent-cement joining typical of Schedule 40 PVC systems, supporting a secure, leak-resistant connection.
Technical Specifications
- Product Type: Elbow
- Product Size: 3/4
- Material: PVC, Schedule 40
- End Connections: Spigot x Socket
- Angle: 45°
Typical Applications
- Residential and Commercial Plumbing Systems
- PVC Pressure and DWV Piping Runs
- Directional Pipe Routing in Tight or Confined Spaces
- New Construction and Retrofit Piping Projects
- Irrigation and Light Industrial Piping Systems
Why Spears?
Spears is a recognized manufacturer of PVC and CPVC piping components engineered to consistent Schedule 40 dimensional standards, giving installers a dependable fit and reliable long-term performance. The 427-007BC's spigot x socket street design and corrosion-resistant PVC construction make it a practical choice for professionals who need a compact, code-compliant 45° direction change without adding an extra coupling or joint to the run.
Manufacturer Resources
PVC Schedule 40 Fittings
Product Specs
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Street Elbows
- Product Type:
- Elbow
- Product Size:
- 3/4
Spears 427-007BC – Frequently Asked Questions
1) What is the difference between a street elbow and a regular 45 degree PVC elbow?
A regular 45 has two socket ends, so joining it to another fitting or valve means cutting a short nipple of pipe and making two solvent welds. The Spears 427-007BC is a street fitting: one end is a spigot that inserts straight into another fitting, valve, or coupling, while the other end is a socket that takes a pipe run. That removes a coupling and a joint, and keeps the direction change tight enough to work inside framing, wall cavities, and equipment rooms.
2) Will the Spears 427-007BC fit 3/4 inch Schedule 40 PVC pipe?
Yes. It is a 3/4 inch trade size fitting molded to Schedule 40 wall-thickness dimensions, so the socket end accepts standard 3/4 inch Sch 40 PVC pipe and the spigot end is sized like 3/4 inch pipe so it drops into any 3/4 inch socket fitting or valve.
3) How do you join this PVC 45 street elbow, and does it thread?
No threads on it. Both ends are solvent-weld: the socket is cemented over the pipe and the spigot is cemented into the mating socket, using primer and PVC solvent cement as normal for a Schedule 40 system. If you need a threaded transition, take it to a separate male or female adapter.
4) Can I use this PVC fitting on a DWV drain line as well as a pressure line?
Both. The 427-007BC is called out for pressure and non-pressure work, including residential and commercial plumbing, DWV runs, irrigation, and light industrial piping. A 45 is the usual choice on drainage where a sweeping turn is wanted instead of a hard 90.
5) Can the spigot end of the 427-007BC go into a valve socket, or only another fitting?
Either. The spigot is dimensioned like 3/4 inch Schedule 40 pipe, so it seats in any 3/4 inch solvent-weld socket, whether that is a ball valve, a coupling, a tee, or another elbow. That is the point of a street fitting, it saves you cutting a stub of pipe to make the connection.
6) Is PVC the right material here, or should I be using metal fittings?
PVC is chosen here for corrosion and chemical resistance, which is where it outlasts metallic fittings on water, drainage, and irrigation lines. What it will not do is handle hot water or high-temperature service the way CPVC or metal does, so keep it on cold and ambient-temperature runs.
