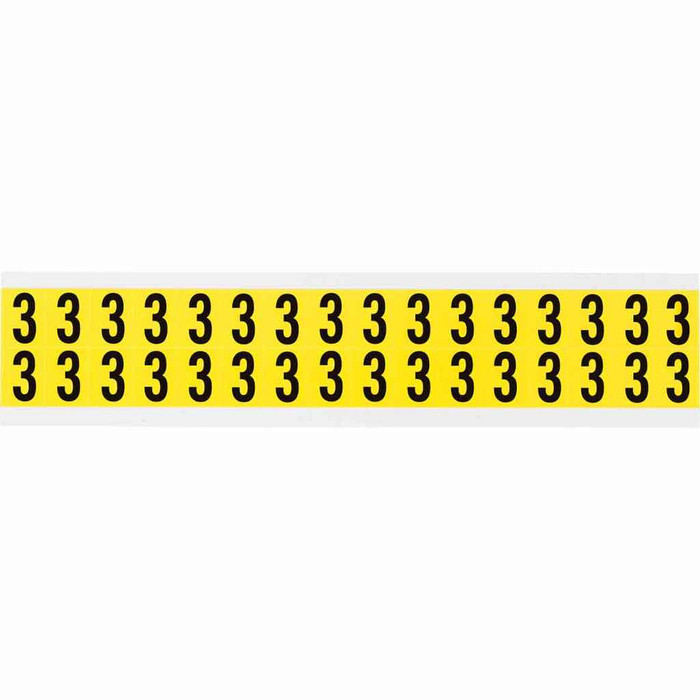

Brady 3420-3 3420 Series Repositionable Number and Letter Labels, 3

Brady 3420-3 3420 Series Repositionable Number and Letter Labels, 3

(No reviews yet) Write a Review

Model: 3420-3
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.60
$11.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3420 Series Repositionable Number and Letter Labels, 3

  • Features

    • The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
    • Made of CleanLift Series Vinyl Cloth (B-498) with repositionable rubber adhesive
    • Sticks to any clean, dry surface
    • Specially formulated topcoat for excellent print quality


3420-3 - spec sheet

Manufacturer Resources

Product Specs

Adhesive Type:
Repositionable Rubber
Application:
General Identification; Wire and Cable Labeling
Brady Material Number:
B-498
Cards Or Sheets Per Pack:
1
Character Height In Ft Yd :
0.625 in
Character Height Mm Cm M :
15.9 mm
Compatible Surface Types:
Low Surface Energy
Contains Ca Prop 65 Substance:
Yes Contains-Label not req.
Contains Heavy Metal S :
Unavailable
Dimensions 2:
0.75 in H x 0.563 in W
Dimensions Metric :
19.1 mm H
Dot Regulated Product:
No = not regulated by DOT
Enables Industry Compliance:
ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
Eu Rohs Compliance:
Unavailable
Eu Rohs Compliant:
No
Height In Ft Yd :
0.75 in
Height Mm Cm M :
19.1 mm
Illumination:
Not Illuminated
Installation Mounting Type:
Self-Adhesive
Label Media Format:
Die-Cut on Cards
Label Properties:
Repositionable Labels
Maximum Service Temperature C:
80 °C
Maximum Service Temperature F:
176 °F
Minimum Application Temperature C:
10 °C
Minimum Application Temperature F:
50 °F
Minimum Service Temperature C:
-40 °C
Minimum Service Temperature F:
-40 °F
National Stock Number Nsn :
7.69E+12
Primary Noun Basic Function:
Label
Printer And Label Applications:
Wire & Cable
Product Color:
Black on Yellow
Product Dimensions:
0.75 in H x 0.563 in W
Product Finish:
Semi-gloss
Product Material:
Vinyl Cloth
Pspa Photoluminescence Class:
Not Illuminated
Quantity Per Card Or Sheet:
32
Reflective Type:
Non-Reflective
Resistance Properties:
Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weat
Sap B Number:
B-498
Sds Safety Data Sheet Required:
No = MSDS/SDS is not required
Sign Size:
0.75 in H x 0.563 in W
Sign Size General:
0.75 in x 0.563 in
Text Legend:
3
Thickness In Ft Yd :
0.0073 in
Thickness Mm Cm M :
0.185 mm
Trade Name:
CleanLift
Width In Ft Yd :
0.563 in
Width Mm Cm M :
14.3 mm
Department:
Electrical

Brady 3420-3 – Frequently Asked Questions

1) How many labels come on a Brady 3420-3 card, and are they all the number 3?
One card per pack, with 32 die-cut labels on it, and every one is the numeral 3. The 3420-3 is a single-character card, so if you are numbering panels or conductors 1 through 6 you need the matching card for each digit.
2) Will Brady 3420-3 wire markers come off later without leaving residue on the conductor?
Yes, that is the point of the CleanLift B-498 vinyl cloth construction. The repositionable rubber adhesive holds on a clean dry surface but lifts clean, so you can pull a marker off a conductor mid-pull and re-stick it in the right place instead of scrapping it. Useful for temporary circuit tagging during troubleshooting or commissioning.
3) Can I apply these Brady number labels in a cold mechanical room or outdoors in winter?
Application needs 50 F (10 C) or warmer for the adhesive to grab. Once it is on and bonded, the label holds in service from -40 F to 176 F (-40 C to 80 C). So an unheated crawlspace or rooftop job in January means warming the surface first, or applying indoors before the wire goes out.
4) What size is each label on the Brady 3420-3 card, and will it wrap a small conductor?
Each die-cut label is 0.75 x 0.563 in (19.1 x 14.3 mm) and 0.0073 in (0.185 mm) thick. The printed character stands 0.625 in (15.9 mm). At that footprint it is a flag or partial wrap on small gauge conductors rather than a full overlap band, so on THHN branch circuit wire expect to butt or slightly overlap the ends.
5) Do I need a label printer for Brady 3420 series markers?
No printer, no software, no ribbon. The 3420 series ships pre-printed and die-cut on cards, self-adhesive, so you peel and stick. That is the difference between these and blank printable wire marker stock, and it is why a service tech carries them in the van.
6) Will these Brady wire markers survive a wash-down or a plant environment with chemicals?
The B-498 vinyl cloth is abrasion, chemical, corrosion, humidity and UV resistant, so it tolerates a light industrial environment and sunlight better than a paper marker. Keep in mind the adhesive is deliberately repositionable, not permanent, so for a marker that must never be removed choose a permanent-adhesive wire marker instead.
7) Will Brady 3420 labels stick to plastic conduit and other low surface energy materials?
Yes. The material is rated for low surface energy surfaces, which covers plastics like polyethylene and polypropylene where ordinary label stock tends to lift at the edges. The surface still has to be clean and dry at application.
8) Does the Brady 3420-3 marker meet any recognized standards for a spec submittal?
It supports compliance with ASTM B 117 (salt spray), ASTM D 1000 (electrical tape test methods), ASTM D 2979 (tack), ASTM G 155 (weathering) and is UL Recognized. If the government or institutional order needs a stock number, the 3420-3 carries a National Stock Number.
9) Are these labels readable in a dim electrical room?
Black on yellow with a semi-gloss topcoat gives high contrast under a flashlight, but the marker is non-reflective and not photoluminescent. In a dark panel with the lights out you will need your own light source. For egress or glow-in-the-dark marking this is the wrong product.
10) Is the Brady 3420-3 label RoHS compliant, and does it need an SDS?
It is not EU RoHS compliant, and it does carry a California Prop 65 substance (labeling not required). No SDS is required to ship or store it, and it is not a DOT regulated product. Facilities with a strict RoHS purchasing policy should flag that before standardizing on it.
