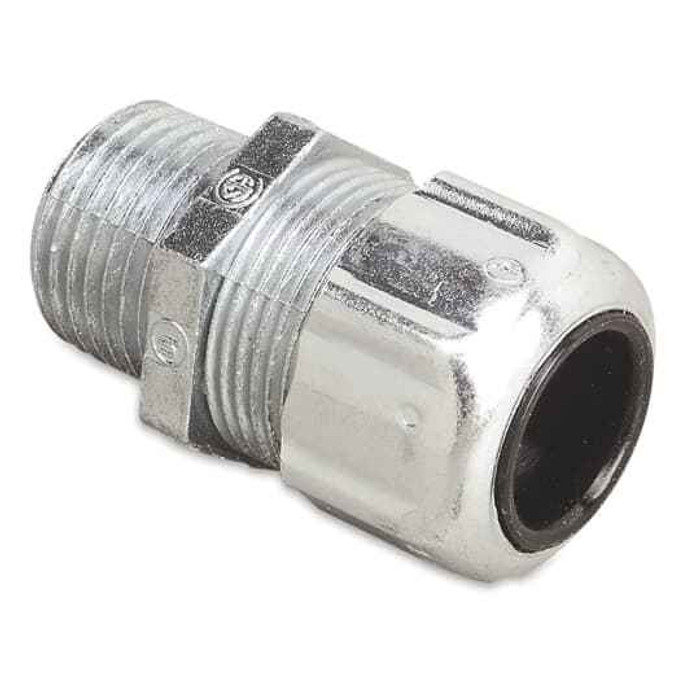

Thomas & Betts 3/4 Inch Straight Strain Relief Connector Steel Construction
Professional Steel Strain Relief Solution for Secure Cable Management
The Thomas & Betts 3/4 inch straight strain relief connector delivers reliable cable protection and secure connections in demanding electrical applications. Constructed from durable steel with metallic finish, this connector accommodates cable ranges from 0.50 to 0.75 inches, providing professional-grade strain relief for various cord and cable installations.
Professional Features & Benefits
- 3/4 Inch Threading: Standard NPT threading ensures compatibility with common electrical enclosures and junction boxes for versatile installation options.
- Steel Construction: Robust steel material provides superior durability and mechanical strength for long-lasting performance in industrial and commercial environments.
- Cable Range 0.50-0.75 Inches: Accommodates multiple cable diameters within the specified range, offering flexibility for various wire and cord applications.
- Straight Configuration: Direct inline design simplifies installation and maintains clean cable routing without angular offsets.
- Metallic Finish: Professional metallic coating provides corrosion resistance and maintains appearance in exposed installations.
- Strain Relief Function: Prevents cable damage from pulling, bending, and vibration while maintaining secure electrical connections.
Technical Specifications
- Color: Metallic
- Department: Electrical
- Material: Steel
- Number Of Batteries: 0
- Product Group: Connectors
- Product Subgroup: Strain Relief Connectors
- Product Type: Cord Connectors-Straight
Professional Applications
- Industrial Control Panels and Electrical Enclosures
- Commercial Building Electrical Systems
- Manufacturing Equipment Cable Management
- HVAC System Connections
- Motor Control Centers
- Instrumentation and Control Wiring
- Maintenance and Repair Applications
Why Choose Thomas & Betts Quality?
Thomas & Betts strain relief connectors deliver proven reliability through robust steel construction and precision engineering. The metallic finish ensures long-term durability while the straight configuration provides professional installation flexibility for demanding electrical applications.
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Wiring Devices
- Product Type:
- Straight Cord Connector
- Department:
- Electrical
- Product Subgroup:
- Cord Grips
- Product Color:
- Metallic
- Product Material:
- Steel
Thomas & Betts 2932 – Frequently Asked Questions
1) What cable diameter range does the Thomas & Betts 2932 strain relief connector handle?
The 2932 clamps cord and cable with an outside diameter from 0.50 to 0.75 inches. Measure the jacket OD, not the conductor count. Cable smaller than 0.50 inches won't be gripped tightly enough to relieve strain, and anything over 0.75 inches won't seat in the body.
2) Will a 3/4 inch strain relief connector thread into a standard knockout on a junction box?
Yes. The connector uses 3/4 inch NPT threading, which mates with the standard 3/4 inch knockouts and threaded hubs found on junction boxes, enclosures and control panels. Use a locknut on the inside of a plain knockout; thread it straight into a tapped hub.
3) Is the Thomas & Betts 2932 cord connector metal or plastic?
Steel body with a metallic finish. That matters on two counts for an electrician: it stands up to mechanical abuse on machinery and motor control centers better than a nylon connector, and a steel connector in a steel enclosure keeps the metallic path continuous rather than introducing a non-conductive break.
4) What does a strain relief connector actually do that a plain cord grip bushing doesn't?
It clamps the cable jacket so pulling, vibration or repeated flexing is taken by the connector body instead of the terminal screws inside the box. On a motor lead, a control panel cord, or an HVAC unit that vibrates in service, that is what keeps conductors from working loose or the jacket from being cut on the knockout edge. The 2932 provides that clamping for 0.50 to 0.75 inch cable through a 3/4 inch hub.
5) What is the manufacturer part number for the Thomas & Betts 3/4 inch steel straight strain relief connector?
Order it as Thomas & Betts 2932. That single number covers the 3/4 inch straight steel body with the 0.50 to 0.75 inch cable range, so there is no separate finish or size suffix to specify.
6) Can I use this connector on HVAC equipment and control wiring, or is it only for panels?
It's used across industrial control panels, motor control centers, manufacturing equipment, HVAC connections, and instrumentation and control wiring. The deciding factors are the same in every case: a 3/4 inch hub or knockout, and cable jacket OD between 0.50 and 0.75 inches.
