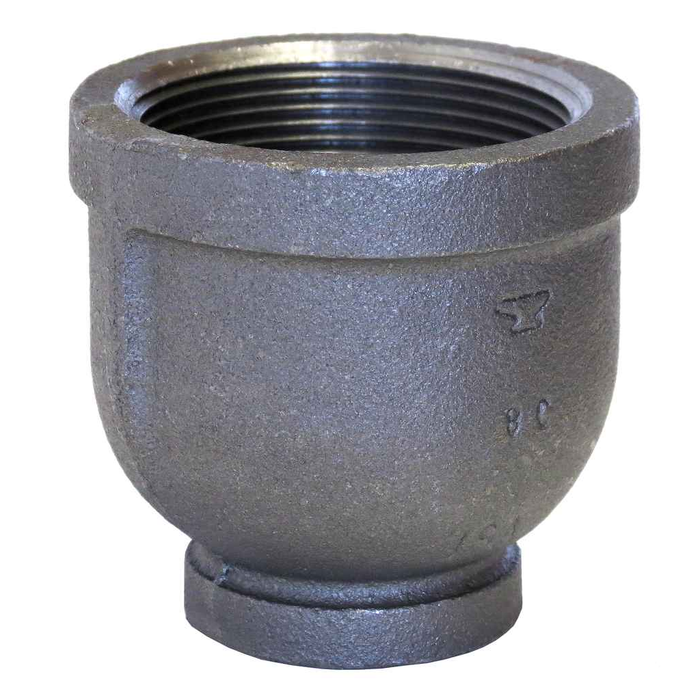

3/4X1/2 BLK MI REDUCER
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.75
- Size 2:
- 0.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Reducer
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.27 lbs
ASC Engineered Solutions 310086004 – Frequently Asked Questions
1) Does the ASC 3/4 x 1/2 black malleable iron reducer have female threads on both ends?
Both ends are female pipe thread (FPT), 3/4 inch on the large end and 1/2 inch on the small end. Threads are cut to ASME B1.20.1, the standard NPT taper thread spec, so it makes up with any standard NPT black pipe nipple or male fitting. If you need to step down from a male end, you would need a bushing instead.
2) Can I use a black malleable iron reducer on a gas line, or is it for water?
Black malleable iron fittings like this 3/4 x 1/2 reducer are the standard choice for black iron gas piping and for non-potable water, steam, and air service. The black finish has no galvanized coating, so it is not used for potable water. The body is malleable iron to ASTM A-197 with pressure rating and dimensions per ASME B16.3, in standard (STD) class.
3) Is this ASC reducer UL listed and FM approved for a fire sprinkler branch line?
Yes, the 3/4 x 1/2 black malleable iron reducer carries UL/FM recognition, which is what an inspector looks for on fire protection piping. It is a standard class fitting dimensioned to ASME B16.3.
4) Will a black malleable iron reducer match the rest of my galvanized system?
It will thread in fine, since NPT threads per ASME B1.20.1 are the same either way, but the finish is black with no zinc coating. Mixing black fittings into a galvanized water line invites corrosion at the joint. For galvanized runs, order the galvanized version of the same 3/4 x 1/2 reducer.
5) How much does one 3/4 x 1/2 black malleable iron reducer weigh for a shipment estimate?
0.27 lbs each. Useful if you are pricing out a box of them for a multi-family or MRO restock.
