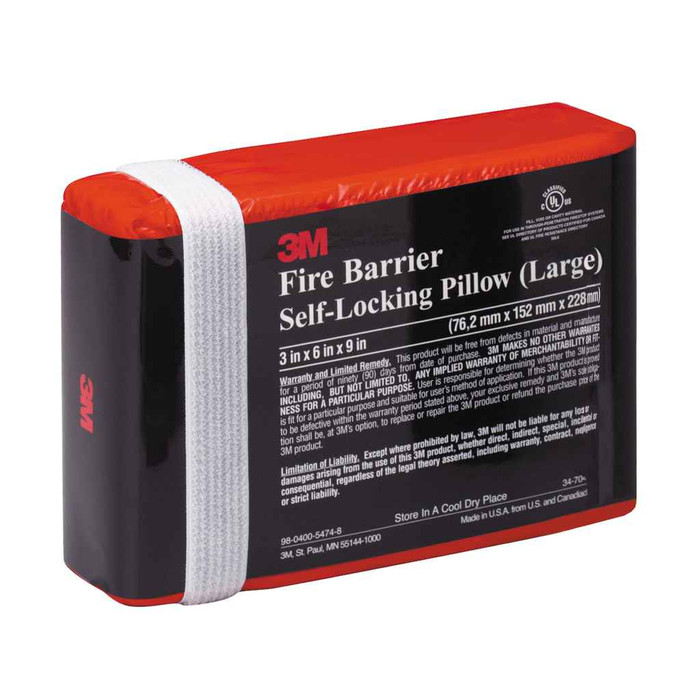

3M 7100138834 3M™ Fire Barrier Pillows FB369, Large, 3 in x 6 in x 9 Inch, 20/Case

3M 7100138834 3M™ Fire Barrier Pillows FB369, Large, 3 in x 6 in x 9 Inch, 20/Case

(No reviews yet) Write a Review

Model: 7100138834
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$82.29
$32.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Fire Barrier Pillows FB369, Large, 3 in x 6 in x 9 Inch, 20/Case

  • Features

    • Graphite-free composition does not conduct electricity
    • Excellent aging properties for long-lasting durability and performance
    • Expands to form a hard char that tightly seals against flame spread, smoke and toxic gases
    • No wire mesh required and easy to install, inspect, remove and reuse as needed
    • Re-enterable and re-useable for new or retrofit installations
    • Firestop tested for up to 3 hours of protection in accordance with ASTM E 814 (UL 1479)


7100138834 - spec sheet

Manufacturer Resources

Product Specs

Application:
Commercial Construction
Country Of Origin:
United States
Etim Class 8 0:
EC000209
Fire Rating:
Up to 3 Hour
Overall Height Imperial :
3.0 in
Overall Height Metric :
76.2 mm
Overall Length Imperial :
9.0 in
Overall Length Metric :
229.0 mm
Overall Width Imperial :
6.0 in
Overall Width Metric :
152.0 mm
Product Form:
Pillow
Product Type:
Pillow
Smoke Seal:
Yes
Water Tight:
No
Department:
Electrical

3M 7100138834 – Frequently Asked Questions

1) Can 3M Fire Barrier Pillows FB369 be used around energized electrical cable trays?
Yes. The FB369 pillow is graphite-free, so it does not conduct electricity, which is why it gets specified for cable tray and cable bundle penetrations. It is a re-enterable seal, so when cable is added or pulled later the pillows come out and go back in without demolishing a caulked or mortared seal.
2) What fire rating do the FB369 large fire barrier pillows carry?
Up to 3 hours, firestop tested in accordance with ASTM E 814 (UL 1479). The pillows also act as a smoke seal. They are not water tight, so for a penetration that has to resist standing water or moisture you want a sealant or putty system instead.
3) What size is the large FB369 pillow, and how many come in a case?
Each large pillow measures 3 x 6 x 9 inches (76.2 x 152 x 229 mm), and it is sold 20 pillows per case. Size the opening by how many pillows will fully pack it, since the seal depends on the pillows being compressed tight against each other and against the penetrants.
4) Do I need wire mesh or a retaining screen with 3M FB369 pillows?
No wire mesh is required. That is the main labor difference versus older pillow systems, and it is why installation, inspection, removal and reinstallation are quick. Nothing else is included in the case, so any framing or sleeving at the opening is separate.
5) Should I use firestop pillows or a firestop sealant for a through-penetration?
Use pillows where the penetration will change. Cable trays, communications risers and temporary or phased openings get re-entered constantly, and the FB369 pillow pulls out and repacks with no cutting. Use a caulk, putty or mortar system for a penetration that is finished and will not be disturbed, or where you need a water-tight seal, since the FB369 is not water tight.
6) How do 3M fire barrier pillows actually stop flame and smoke from passing?
On heat the pillow intumesces, expanding to form a hard char that closes off the gaps around the penetrants and seals against flame spread, smoke and toxic gases. Because it seals by expansion rather than by a rigid cast fill, it also copes with cables of mixed diameters in the same opening.
7) Are the FB369 pillows suitable for a retrofit in an occupied commercial building?
Yes, they are intended for commercial construction and are listed as suitable for new or retrofit installations. For an MRO or facilities crew that is the appeal: no wet product, no cure time, and an existing pillow seal can be opened for an inspector and repacked the same day. They are made in the United States.
8) Will the FB369 pillows degrade over time in a riser shaft?
3M lists excellent aging properties for the FB369, so the pillow holds its performance over a long service life rather than drying out or crumbling the way some wet-applied products can. The trade-off to watch is moisture: the pillows are not water tight, so a wet shaft or exterior-exposed opening calls for a different system.
