3M 7100127164 3M™ Performance ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.43
$0.43

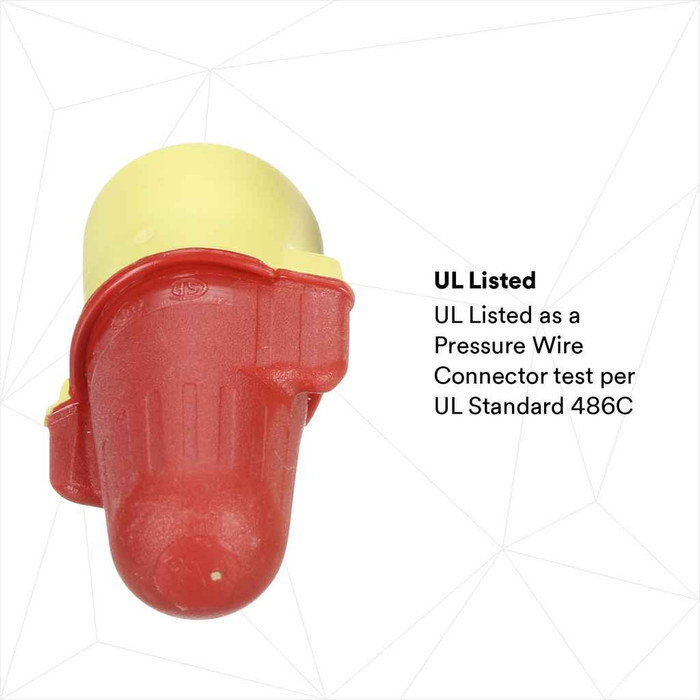

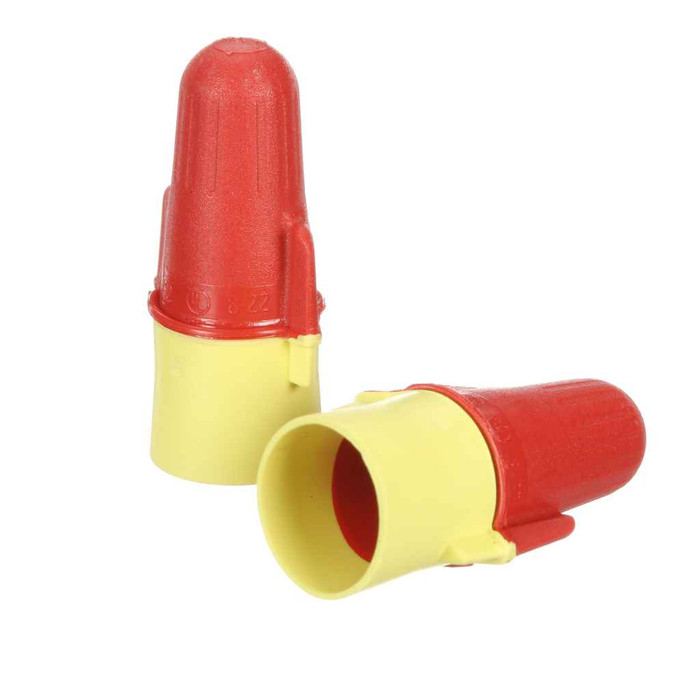

3M 7100127164 3M™ Performance Plus™ Wire Connector R/Y+POUCH, 100 per pouch, 1000/Case

3M 7100127164 3M™ Performance Plus™ Wire Connector R/Y+POUCH, 100 per pouch, 1000/Case

(No reviews yet) Write a Review

Model: 7100127164
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.43
$0.43
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Performance Plus™ Wire Connector R/Y+POUCH, 100 per pouch, 1000/Case

  • Features

    • Flexible spring expands for greater wire range and reuse
    • Strong bite for a secure, reliable connection
    • UL Listed
    • Dual color coded: one connector does the job of two traditional connectors in the majority of applications


7100127164 - spec sheet

Manufacturer Resources

Product Specs

Ais Url Article Information Sheet :
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xMY_GNYt9mv70k17zHvu9lxtD7xtBevSS
Connection Type:
Wire
Connector Style:
Twist On
Country Of Origin:
United States
Etim Class 7 0:
EC000306
Etim Class 8 0:
EC000306
Flame Retardant:
Yes
Grease Filling Against Corrosion:
No
Manufacturing Origin:
USA
Maximum Conductor Size Imperial :
8 AWG
Maximum Conductor Size Metric :
10
Maximum Insulation Outer Diameter Metric :
3.7 mm
Maximum Insulation Outside Diameter:
0.145 in
Maximum Operating Temperature Celsius :
105.0 Degree
Maximum Operating Temperature Fahrenheit :
221.0 Degree
Maximum Recommended Voltage Rating:
600.0 V
Minimum Conductor Size Imperial :
22 AWG
Minimum Conductor Size Metric :
.34 mm²
Packaging:
Pouch
Product Color:
Red
Product Material:
Plastic
Product Type:
Connector
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/HqL5IBLuFps=
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Specifications Met:
CSA, UL Listed
Voltage Rating:
600 Volt
Wire Connector Type:
Twist-on Wire Connectors
