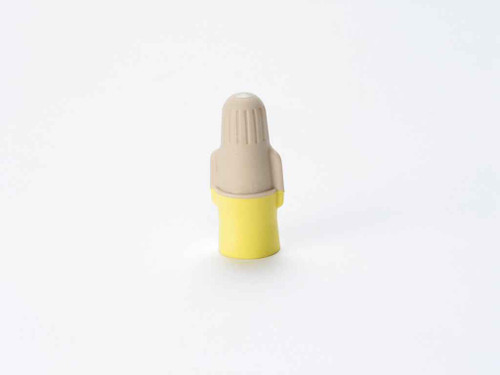

3M T/Y+POUCH 3M, Performance Plus, Wire Connector T/Y+Pouch, 100/Pouch
Model: 3M-T/Y+POUCH
3M, Performance Plus, Wire Connector T/Y+Pouch, 100/Pouch
Features
Flexible spring expands for greater wire range and reuse
Dual color coded: one connector does the job of two traditional connectors...
3M
$50.34
$0.34
3M Performance Plus Wire Connector T/Y+ 22-12 AWG Twist-On Pigtail Connection System
Model: 3M-T/Y+BOX
3M Performance Plus Wire Connector T/Y+Professional Twist-On Wire Connection System for 22-12 AWG Applications3M Performance Plus Wire Connector T/Y+ delivers reliable pigtail connections for copper...
3M
$50.34
$34.00
3M 7100127163 3M, Performance Plus, Wire Connector T/Y+POUCH, 100 per Pouch, 1000/Case
Model: 3M-7100127163
3M, Performance Plus, Wire Connector T/Y+POUCH, 100 per Pouch, 1000/Case
Features
Strong bite for a secure, reliable connection
UL Listed
Flexible spring expands for greater wire range and...
3M
$50.34
$0.34
3M T/R+POUCH 3M, Performance Plus, Wire Connector T/R+POUCH, 100 per Pouch
Model: 3M-T/R+POUCH
3M, Performance Plus, Wire Connector T/R+POUCH, 100 per Pouch
Features
Strong bite for a secure, reliable connection
UL Listed
Flexible spring expands for greater wire range and reuse
Dual color...
3M
$50.46
$0.46

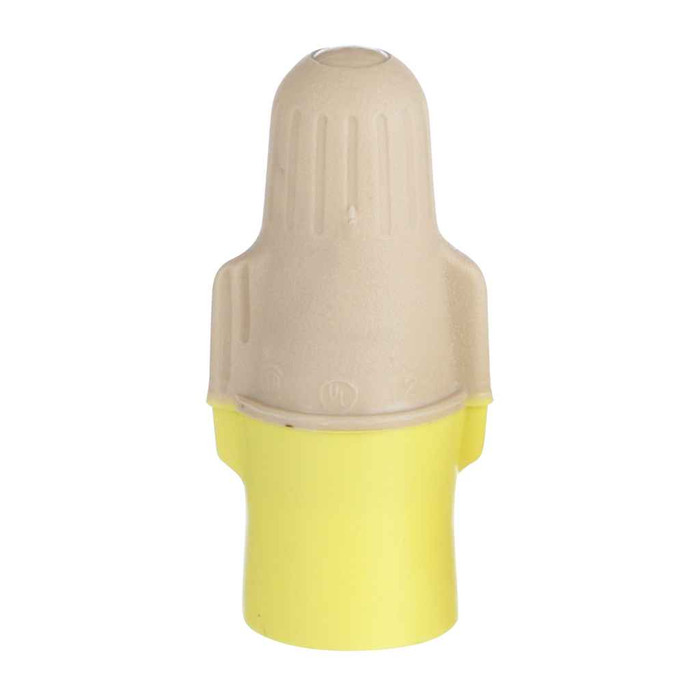

3M, Performance Plus, Wire Connectors T/Y+POUCH
Features
- Flexible spring expands for greater wire range and reuse
- Dual color coded: one connector does the job of two traditional connectors in the majority of applications
- UL Listed
- Strong bite for a secure, reliable connection
Manufacturer Resources
Product Specs
- Ais Url Article Information Sheet :
- https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xNx_9M8m9ov70k17zHvu9lxtD7xtBevSS
- Connector Style:
- Twist On
- Country Of Origin:
- United States
- Etim Class 7 0:
- EC000306
- Etim Class 8 0:
- EC000306
- Maximum Conductor Size Imperial :
- 12 AWG
- Maximum Conductor Size Metric :
- 4
- Maximum Insulation Outer Diameter Metric :
- 3.7 mm
- Maximum Insulation Outside Diameter:
- 0.145 in
- Maximum Operating Temperature Celsius :
- 105.0 Degree
- Maximum Operating Temperature Fahrenheit :
- 221.0 Degree
- Maximum Recommended Voltage Rating:
- 600.0 V
- Minimum Conductor Size Imperial :
- 22 AWG
- Minimum Conductor Size Metric :
- .34 mm²
- Product Color:
- Tan
- Product Material:
- Plastic
- Product Type:
- Connector
- Rds Url Regulatory Data Sheet :
- https://cdmsweb.3m.com/ingredientcommunication/file/Media/tV71TeC9ueM=
- Voltage Rating:
- 600 Volt
