3M Scotchcast Inline Resin Pow...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$144.71
$105.43
3M 82-A1N 3M, Scotchcast, Inline Resin Power Cable Splice kit 82-A1N, Up to 2 AWG,1 per box, 10/Case

3M Scotchcast Inline Resin Power Cable Splice Kit 5kV 8-2 AWG Weather-Resistant System

(No reviews yet) Write a Review

Model: 82-A1N
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$144.71
$105.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

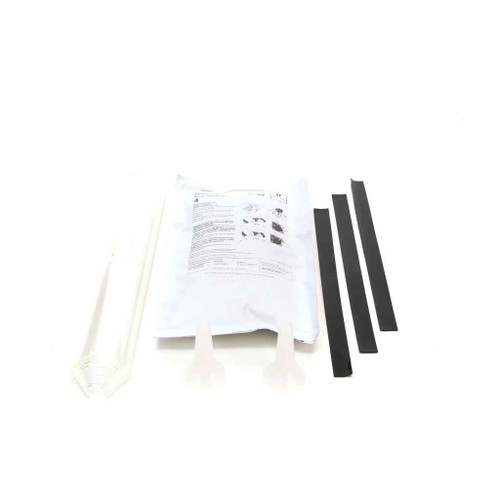

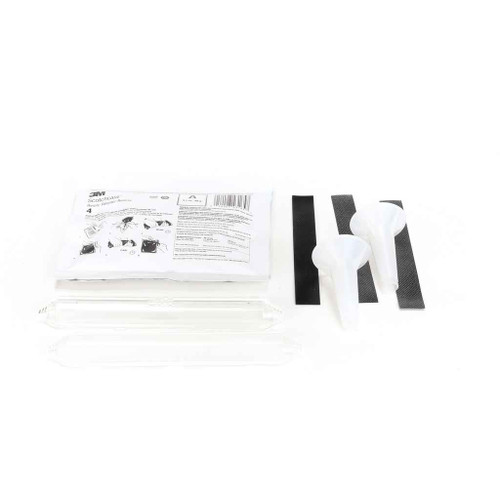

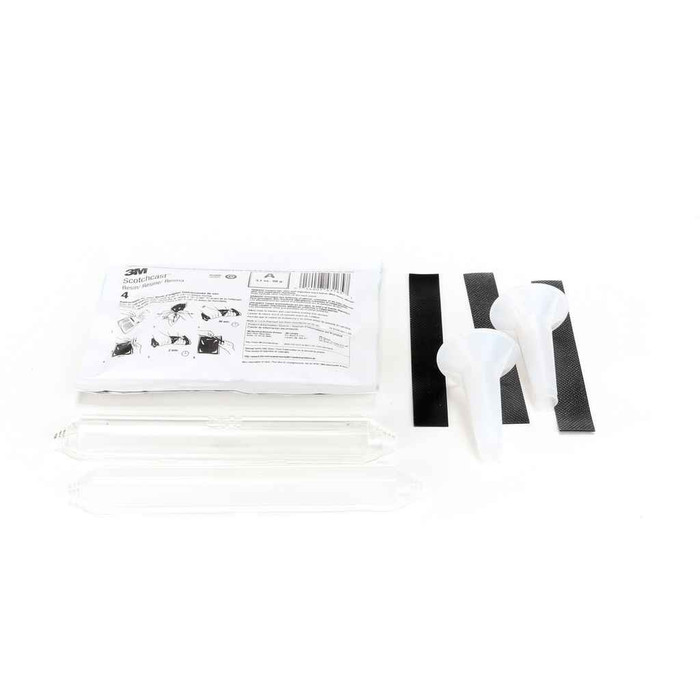

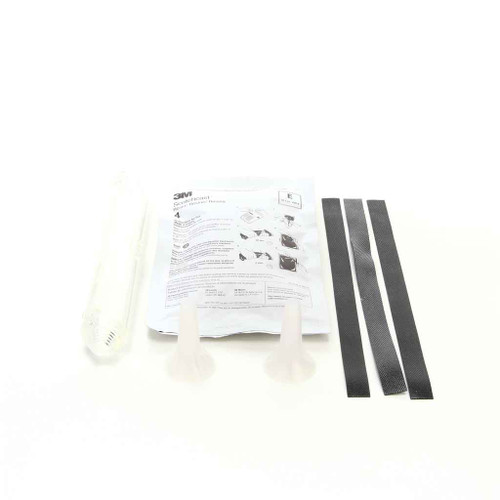

3M Scotchcast Inline Resin Power Cable Splice Kit

Professional Weather-Resistant Cable Splicing Solution

The 3M Scotchcast Inline Resin Power Cable Splice Kit delivers reliable cable splicing performance for 5kV applications with 8-2 AWG conductor compatibility. This UL Listed epoxy resin system provides complete insulation and sealing for both single and multiple conductor cables in weather-exposed or direct burial installations. Engineered for wet or dry cable splicing applications, this professional-grade kit ensures long-term electrical integrity in demanding environments.

Professional Features & Benefits

  • 5kV Voltage Rating: Handles high-voltage applications with reliable dielectric performance for critical power distribution systems.
  • 8-2 AWG Conductor Range: Accommodates a wide range of cable sizes for versatile installation flexibility across multiple project requirements.
  • Weather-Resistant Design: Engineered for direct burial and weather-exposed locations, providing long-term protection against environmental conditions.
  • UL Listed Compliance: Meets rigorous safety standards and RoHS 2011/65/EU compliance for professional electrical installations.
  • Liquid Epoxy Resin System: Provides complete encapsulation and sealing for superior moisture protection and electrical insulation.
  • Inline Splice Configuration: Streamlined design enables efficient cable joining without complex routing or additional hardware requirements.
  • Dual Cable Compatibility: Works with both shielded and non-shielded cables for maximum application versatility.

Technical Specifications

  • Cable Shielding: Single Conductor Portable Cable
  • Color Family Incorporate Product Color: Black
  • Conductor Size Range: 8-2 AWG
  • Dielectric Strength: 500 Millivolt
  • Insulation O D Range: 0.406 - 0.625 Inch
  • Insulation Outside Diameter Range: 0.406 - 0.625 Inch
  • Insulation Outside Diameter Range Metric: 10 - 16 mm
  • Manufacturer Catalog Number: 7100123073
  • Manufacturing Origin: USA
  • Maximum Cable Outside Diameter: 0.60 in
  • Maximum Cable Outside Diameter Metric: 15.2 mm
  • Maximum Conductor Size: 2 AWG
  • Package Height: 2.00000 in
  • Package Length: 8.00000 in
  • Package Weight: 0.6250 LBS
  • Product Material: Epoxy
  • Product Voltage: 5 kV
  • Resin Type: Liquid
  • Splice Type: Inline

Professional Applications

  • Underground Power Distribution Systems
  • Direct Burial Cable Installations
  • Weather-Exposed Cable Connections
  • Industrial Power Distribution
  • Commercial Electrical Infrastructure
  • Utility Power Line Maintenance
  • Emergency Power System Connections

Why Choose 3M Quality?

3M Scotchcast splice kits deliver proven reliability with UL Listed performance and USA manufacturing quality. The liquid epoxy resin system provides superior environmental protection and long-term electrical integrity, backed by 3M's commitment to professional-grade electrical solutions for demanding applications.

Manufacturer Resources

Product Specs

Cable Shielding:
Single Conductor Portable Cable
Color Family Incorporate Product Color:
Black
Conductor Size Range:
8-2 AWG
Dielectric Strength:
500 Millivolt
Insulation O D Range:
0.406 - 0.625 Inch
Insulation Outside Diameter Range:
0.406 - 0.625 Inch
Insulation Outside Diameter Range Metric:
10 - 16 mm
Manufacturer Catalog Number:
7100123073
Manufacturing Origin:
USA
Maximum Cable Outside Diameter:
0.60 in
Maximum Cable Outside Diameter Metric:
15.2 mm
Maximum Conductor Size:
2 AWG
Package Height:
2.00000 in
Package Length:
8.00000 in
Package Weight:
0.6250 LBS
Product Material:
Epoxy
Product Voltage:
5 kV
Resin Type:
Liquid
Splice Type:
Inline
Department:
Electrical
Product Subgroup:
Splice Kits
Product Type:
Resin Splice Kit
Product Group:
Wire Connectors & Terminals
Product Color:
Black
Country Of Origin:
United States
Voltage Application:
Medium Voltage

3M 82-A1N – Frequently Asked Questions

1) Can I direct bury a 3M Scotchcast resin splice or does it need a vault?
Direct burial is one of the intended uses. The liquid epoxy resin fully encapsulates the connection, so the splice is sealed against moisture without a box, vault, or additional enclosure. It is equally rated for weather-exposed above-ground locations and for wet or dry splicing.
2) Is the 3M 82-A1N rated for 5kV medium voltage feeders?
Yes, 5 kV is the rating on the 82-A1N kit. That covers 5kV class underground distribution, industrial feeders, and utility line repair. Do not use it above that class. The kit is UL Listed and RoHS 2011/65/EU compliant, which is usually what an institutional or utility spec reviewer wants to see on the submittal.
3) I have 4/0 underground cable, is this the right 3M kit?
No. The 82-A1N stops at 2 AWG conductor and 0.60 inch overall cable OD, so 4/0 is well past what the mold body will accept. You need a larger Scotchcast inline kit sized to your insulation diameter. Measure the insulation OD on the run and match it to the kit's stated diameter range rather than going by AWG alone.
4) Will this 3M splice kit work on shielded cable, or only unshielded?
Both. The Scotchcast inline resin kit is stated to work with shielded and non-shielded cable, and with single or multiple conductor cable. The cable shielding classification on the kit is single conductor portable cable. What controls fit is the insulation diameter range, 0.406 to 0.625 inch, not whether a shield is present.
5) Should I use a resin splice kit or heat shrink for an underground 5kV repair?
A resin kit like the 82-A1N is the choice when you cannot get clean, dry, or torch-safe conditions at the splice. It pours as a liquid epoxy and cures around the joint, so it fills voids and seals a wet trench splice with no open flame, which matters in a manhole or a fuel-sensitive area. Heat shrink is faster on a dry bench but needs a torch and a clean surface. This one is an inline configuration, meaning a straight cable-to-cable joint, not a tee or a termination.
6) What is the exact part number to order this 3M Scotchcast splice kit under?
Order it as 3M 82-A1N. The manufacturer catalog number on the same item is 7100123073. It is made in the USA and the cured resin body is black.
