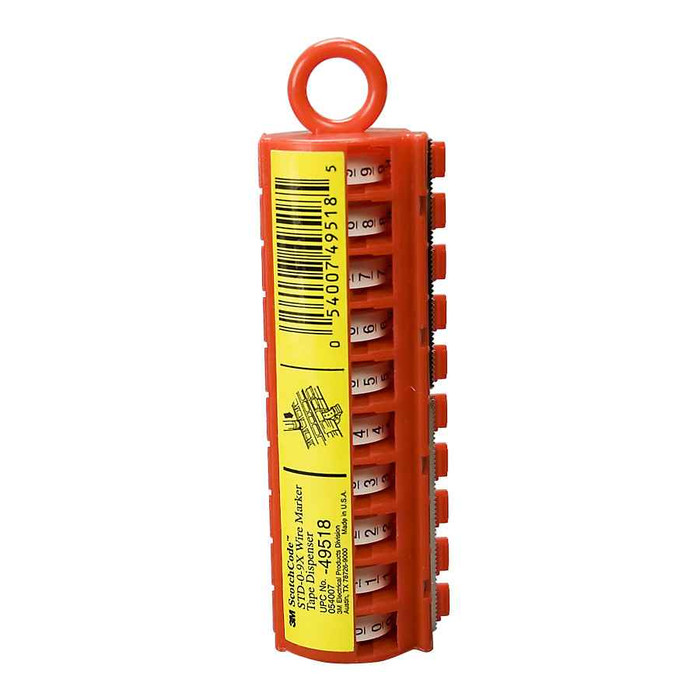

3M, ScotchCode, Wire Marker Tape Refill Roll SDR-5, 50 Rolls/Case
7000058259 - spec sheet
Features
- High tack, acrylic adhesive that resists solvents, oil and water and adheres firmly to insulation surfaces
- Available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols
- Can be used for applications with operating temperatures between -40°F (-40°C) to 250°F (121°C)
7000058259 - spec sheet
Manufacturer Resources
Product Specs
- Adhesive Material:
- Acrylic
- Ais Url Article Information Sheet :
- https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm8_eO8tZmv70k17zHvu9lxtD7xtBevSS
- Application:
- Marking Wire and Cable
- Country Of Origin:
- United States
- Dispenser Marker Type:
- Tape Roll Refill
- Etim Class 7 0:
- EC001530
- Etim Class 8 0:
- EC001530
- Legend:
- 5
- Legend Color:
- Black
- Manufacturing Origin:
- USA
- Marker Id Style:
- Pre-printed
- Marker Type:
- Dispenser
- Maximum Insulation Outer Diameter Metric :
- 3.7 mm
- Maximum Insulation Outside Diameter:
- 0.145 in
- Maximum Operating Temperature Celsius :
- 121.0 Degree
- Maximum Operating Temperature Fahrenheit :
- 250.0 Degree
- Maximum Recommended Voltage Rating:
- 600.0 V
- Overall Length Metric :
- 2.4 m
- Overall Width Metric :
- 5.46 mm
- Printed Text Type:
- Number - 5
- Product Material:
- Plastic
- Product Type:
- Identification
- Rds Url Regulatory Data Sheet :
- https://cdmsweb.3m.com/ingredientcommunication/file/Media/uoNmTNLXL4Q=
- Rohs Eu Comments:
- RoHS 2011/65/EU compliant without exemption
- Solution For:
- Access Network: FTTH/FTTB/CATV
- Tape Color:
- White
- Units Per Case:
- 50
- Uv Resistant:
- No
- Voltage Application:
- Low Voltage
- Wire Marker Products:
- Wire Marker Tape Dispenser and Refill Rolls
