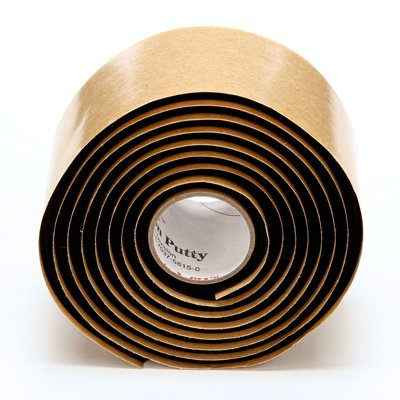

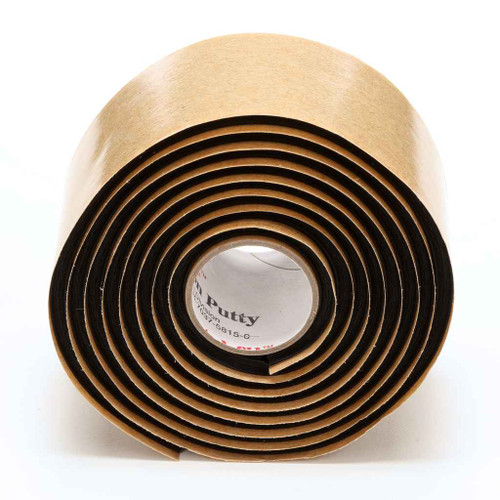

3M Scotchfil Electrical Insulation Putty 1-1/2 in x 60 in Self-Fusing Mastic Tape
Professional electrical insulation for irregular surfaces and connections
3M Scotchfil Electrical Insulation Putty delivers reliable insulation for irregular surfaces like fittings and valves in electrical applications. This self-fusing, electrical-grade mastic tape stretches and wraps to insulate connections up to 600V, withstanding temperatures from 32 to 176�F (0 to 80�C). The 125-mil thick, non-corrosive mastic adhesive offers optimized adherence in a flexible tape form, making it ideal for sealing multi-conductor cable connections and wire exits at high-voltage joints.
Professional Features & Benefits
- 125-mil Thickness: Provides substantial insulation barrier for reliable electrical protection and sealing performance.
- 1000% Elongation: Exceptional stretch capability allows conforming to irregular surfaces and complex connection geometries.
- 22000 V/mil Dielectric Strength: Superior electrical insulation properties ensure safe operation in demanding electrical environments.
- 32�F to 176�F Operating Range: Wide temperature tolerance maintains performance across diverse environmental conditions.
- UL Recognized Approval: Meets rigorous safety standards for professional electrical construction and maintenance applications.
- 5 Year Shelf Life: Extended storage capability reduces waste and ensures material availability when needed.
- RoHS 2011/65/EU Compliant: Environmental compliance supports sustainable electrical installation practices.
Technical Specifications
- 3m Id: 80610833727
- Adhesive Material: Mastic
- Agency Approvals: UL Recognized
- Applications: Sealing
- Backing Material: Electrical Insulation Putty
- Backing Thickness Metric : 3.175 mm
- Case Quantity: 100 Rolls
- Dielectric Strength V Mil : 22000
- Elongation: 1000%
- Elongation At Break: 1000%
- Family: 3M� Scotchfil� Black, Electrical Insulation Putty
- High Temperature Rating: 176�F (80�C)
- Insulated: RoHS 2011/65/EU Compliant, Yes
- Length Metric : 1.5 m
- Low Temperature Rating: 32�F (0�C)
- National Stock Number: 5.97E+12
- Operating Temperature Celsius : 0 to 80 Degree Celsius
- Operating Temperature Fahrenheit : 32 �F to 176 �F
- Product Color: Black
- Product Length: 60 Inch
- Product Markets: Electrical Construction, Electrical Equipment Manufacturing, Electrical MRO, Power Distribution
- Product Material: Electrical Grade Putty
- Product Type: Mastic tape
- Product Width: 1.5 Inch
- Rohs 2011 65 Eu Compliant: RoHS 2011/65/EU Compliant, Yes
- Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
- Self Extinguishing: No, Sunlight Resistant
- Self Sticking Amalgamating: RoHS 2011/65/EU Compliant, Yes
- Shelf Life: 5 Year
- Solution For: Wireless Network: Infrastructure Accessories
- Suitable For High Voltage: No, Sunlight Resistant
- Tape Grade: Premium
- Tape Type: Sealing and Insulating Mastic
- Tape Width Metric : 38 mm
- Thickness: 125 mil
- Thickness Metric : 3.175 mm
- Total Thickness: 3.175 mm
- Trademark: Scotchfil
- Uv Resistant: RoHS 2011/65/EU Compliant, Yes
- Voltage Application: Low Voltage
- Vulcanizing: No, Sunlight Resistant
- Width Metric : 38 mm
Professional Applications
- Electrical Construction Projects
- Electrical Equipment Manufacturing
- Electrical MRO Operations
- Power Distribution Systems
- Multi-Conductor Cable Sealing
- High-Voltage Joint Insulation
- Irregular Surface Protection
Why Choose 3M Quality?
3M Scotchfil delivers proven reliability with UL recognition and RoHS compliance, backed by a 5-year shelf life and premium tape grade construction. The non-corrosive mastic adhesive and sunlight-resistant properties ensure long-term performance in demanding electrical environments.
Manufacturer Resources
3M Rubber, Mastic & Specialty Tapes Application Guide
Product Specs
- 3m Id:
- 80610833727
- Adhesive Material:
- Mastic
- Agency Approvals:
- UL Recognized
- Application:
- Sealing
- Backing Material:
- Electrical Insulation Putty
- Backing Thickness Metric:
- 3.175 mm
- Case Quantity:
- 100 Rolls
- Dielectric Strength V Mil:
- 22000
- Elongation:
- 1000%
- Elongation At Break:
- 1000%
- Family:
- 3M™ Scotchfil™ Black, Electrical Insulation Putty
- High Temperature Rating:
- 176°F (80°C)
- Insulated:
- RoHS 2011/65/EU Compliant, Yes
- Length Metric:
- 1.5 m
- Low Temperature Rating:
- 32°F (0°C)
- National Stock Number:
- 5.97E+12
- Operating Temperature Celsius:
- 0 to 80 Degree Celsius
- Operating Temperature Fahrenheit:
- 32 °F to 176 °F
- Product Color:
- Black
- Product Length:
- 60 Inch
- Product Material:
- Electrical Grade Putty
- Product Type:
- Mastic Tape
- Product Width:
- 1.5 Inch
- Rohs 2011 65 Eu Compliant:
- RoHS 2011/65/EU Compliant, Yes
- Rohs Eu Comments:
- RoHS 2011/65/EU compliant without exemption
- Self Extinguishing:
- No, Sunlight Resistant
- Self Sticking Amalgamating:
- RoHS 2011/65/EU Compliant, Yes
- Shelf Life:
- 5 Year
- Solution For:
- Wireless Network: Infrastructure Accessories
- Suitable For High Voltage:
- No, Sunlight Resistant
- Tape Grade:
- Premium
- Tape Type:
- Sealing and Insulating Mastic
- Tape Width Metric:
- 38 mm
- Thickness:
- 125 mil
- Thickness Metric:
- 3.175 mm
- Total Thickness:
- 3.175 mm
- Trademark:
- Scotchfil
- Uv Resistant:
- RoHS 2011/65/EU Compliant, Yes
- Voltage Application:
- Low Voltage
- Vulcanizing:
- No, Sunlight Resistant
- Width Metric:
- 38 mm
- Department:
- Electrical
- Product Group:
- Cable Management & Identification
- Product Subgroup:
- Electrical Tape
3M SCOTCHFIL – Frequently Asked Questions
1) Can I use Scotchfil putty to insulate a splice without vinyl tape over it?
Scotchfil electrical insulation putty is meant to be the filler layer, not the finished jacket. It builds up an insulating body over irregular shapes, connectors, fittings and wire exits, and it is not self-extinguishing, so common practice is to overwrap it with a vinyl electrical tape or rubber splicing tape for mechanical and flame protection. The putty itself carries a 125 mil thickness and 22,000 V/mil dielectric strength, so it does the insulating work once it is covered.
2) Will Scotchfil hold up in an unheated outdoor enclosure in winter?
Temperature is the limit to watch. Scotchfil putty is rated 32 to 176 degrees F (0 to 80 degrees C), so an enclosure that drops below freezing is outside its rated range. It is sunlight resistant and UV resistant, which covers outdoor exposure, but for below-freezing service look at a splicing product with a lower temperature rating.
3) Will Scotchfil putty conform around an irregular connector or a multi-conductor cable crotch?
That is what it is built for. The putty stretches to 1000 percent elongation before breaking, so it pulls down into the crotch of a multi-conductor cable, around lug bodies, fittings and valve shapes, and fuses to itself with no adhesive residue issue. It is self-sticking and amalgamating, meaning the wraps merge into one mass instead of staying as separate layers.
4) How much Scotchfil putty is on a roll and how far does it go?
Each roll is a strip 1-1/2 inches wide by 60 inches long (38 mm by 1.5 m), 125 mil thick. That is five feet of material per roll, so a roll covers a handful of connector fills rather than a run of splices. Rolls ship 100 to a case for shops standardizing a truck stock.
5) Does Scotchfil putty corrode copper or aluminum conductors?
The mastic is non-corrosive, so it can sit directly against copper or aluminum conductors and connector bodies. That matters on a splice you are burying or sealing up, where a corrosive filler would work on the metal for years out of sight.
6) Does 3M Scotchfil putty carry a UL listing and is it RoHS compliant for a spec job?
Scotchfil electrical insulation putty is UL Recognized, and it is RoHS 2011/65/EU compliant without exemption. Both are the lines a facility or institutional buyer needs on a submittal, and the RoHS status carries no exemption caveat behind it.
7) Does Scotchfil vulcanize or cure once it is wrapped?
No, it does not vulcanize. Scotchfil stays a pliable putty, which is why it can be pulled back off and reworked on a connection that needs to be opened later. A rubber splicing tape that vulcanizes is the choice when you want a cured, permanent jacket instead.
8) How long can Scotchfil putty sit on the shelf before it goes bad?
Five years of shelf life on 3M Scotchfil putty, which is why it works as stocked MRO material rather than something bought per job. Electrical MRO, power distribution and electrical construction are the markets 3M lists it for.
9) What is the correct part number and roll size when ordering 3M Scotchfil?
Order 3M Scotchfil, MPN SCOTCHFIL, black electrical insulation putty in the 1-1/2 in x 60 in roll. There is one size and one color in the line, so there is no width or length to specify beyond the single roll configuration.
