3M 7000133318 3M™ Scotchlok™ B...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.43
$0.46

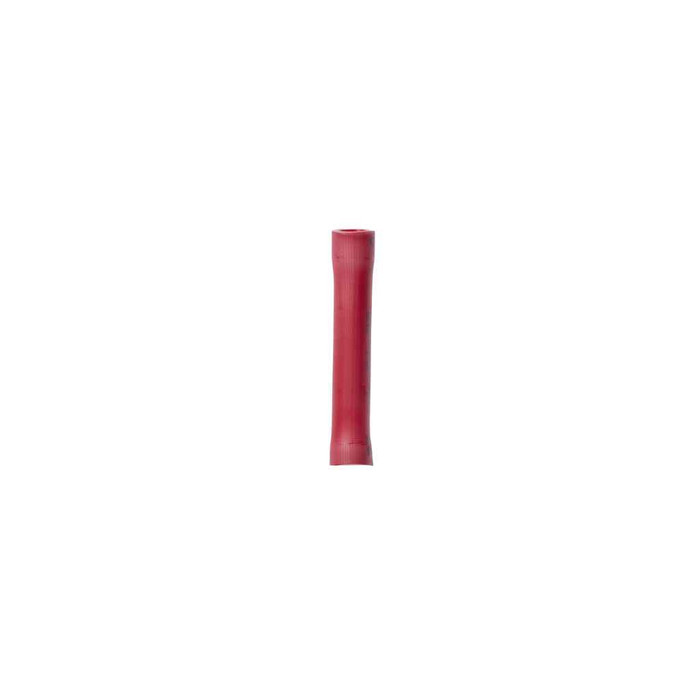

3M 7000133318 3M™ Scotchlok™ Butt Connector Seamless Vinyl Insulated, 100/bottle, MV18BCX, 500/Case

3M 7000133318 3M™ Scotchlok™ Butt Connector Seamless Vinyl Insulated, 100/bottle, MV18BCX, 500/Case

(No reviews yet) Write a Review

Model: 7000133318
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.43
$0.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Scotchlok™ Butt Connector Seamless Vinyl Insulated, 100/bottle, MV18BCX, 500/Case

  • Features

    • Built-in wire stop for correct positioning
    • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
    • Offers electrical connection to a pre-stripped end of a stranded wire
    • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
    • Vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performance
    • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Manufacturer Resources

Product Specs

Ais Url Article Information Sheet:
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm8_ZOYtvov70k17zHvu9lxtD7xtBevSS
Body Material:
Copper Alloy
Connector Type:
Butt
Country Of Origin:
United States
Etim Class 8 0:
EC001059
Insulation Material:
Vinyl
Maximum Conductor Size Imperial:
18 AWG
Maximum Conductor Size Metric:
1 mm²
Maximum Operating Temperature Celsius:
105.0 Degree
Minimum Conductor Size Imperial:
22 AWG
Minimum Conductor Size Metric:
.34 mm²
Overall Length Imperial:
1.02 in
Overall Length Metric:
25.9 mm
Product Color:
Red
Rds Url Regulatory Data Sheet:
https://cdmsweb.3m.com/ingredientcommunication/file/Media/UyIhveNwTWk=
Department:
Electrical
Product Subgroup:
Lugs & Terminals
Product Type:
Connector

3M 7000133318 – Frequently Asked Questions

1) What wire gauge range does the 3M Scotchlok MV18BCX red butt connector take?
The MV18BCX butt connector is sized for 22 through 18 AWG stranded wire, which is 0.34 to 1 mm2 metric. Red insulation is the standard color code for that range, so if your conductors are 16 AWG or larger this is the wrong connector, you'd need the next size up.
2) Can I use these butt connectors on solid wire, or stranded only?
Stranded wire. The Scotchlok MV18BCX makes its connection to a pre-stripped end of stranded conductor, and the barrel is crimped over the strands. For solid conductor splices in a box, use a twist-on or push-in connector instead.
3) Will these red butt splices hold up in an engine compartment or a rooftop HVAC unit?
Temperature range on the MV18BCX runs -40 to 221 degrees F (-40 to 105 C), so summer rooftop and under-hood ambient are within spec. Note the barrel is tin-plated copper with vinyl insulation, not adhesive-lined heat shrink, so it isn't a sealed connection. Anywhere it will see standing water or washdown, use a heat-shrink sealed splice.
4) Are these 3M butt connectors UL Listed for commercial and institutional work?
The Scotchlok MV18BCX is UL Listed and CSA Certified, and it's RoHS 2011/65/EU compliant. That covers the approvals most facility and institutional specs call out for insulated crimp terminals.
5) How do I know the wire is inserted far enough in a Scotchlok butt connector?
There's a built-in wire stop at the center of the barrel. Push each stripped conductor in until it bottoms against the stop, then crimp. That positions both wires the same depth and keeps one from running past center and leaving the other side with a short grip.
6) How long is the MV18BCX butt connector, and will it fit inside a tight harness loom?
Overall length is 1.02 inches (25.9 mm). That's the finished splice length, so plan for at least that much straight run plus strip length when you're routing through loom or a conduit body.
7) What is the barrel made of, and will it corrode in a damp mechanical room?
The barrel is electrolytic copper alloy with tin plating. The tin plating is there for corrosion resistance and gives a compatible mating surface for copper conductors. Don't crimp aluminum conductors in it.
8) What part number should I order to reorder the same red 18 AWG butt splices?
Order 3M part 7000133318, the Scotchlok MV18BCX seamless vinyl insulated butt connector. It's made in the United States. Quoting both the 7000133318 stock number and the MV18BCX designation avoids confusion with the other colors in the Scotchlok butt connector line.
9) How do these Scotchlok butt connectors come packaged for a stockroom?
MV18BCX ships 100 connectors per bottle, 500 per case. The bottle packaging is what most MRO and fleet shops keep on the bench, and the case gives you five of them for shelf stock.
