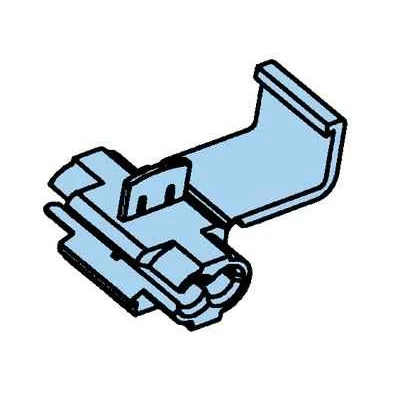

3M Scotchlok Insulation Displacement Connector 18-14 AWG Double Run Tap Flame Retardant, 100 Pack

3M Scotchlok Insulation Displacement Connector 18-14 AWG Double Run Tap Flame Retardant, 100 Pack

(No reviews yet) Write a Review

Model: 560-BOX
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$71.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

3M Scotchlok Insulation Displacement Connector 18-14 AWG Double Run Tap Flame Retardant

Professional electrical connections for tap and parallel splicing applications

The 3M Scotchlok Insulation Displacement Connector delivers reliable electrical connections for tap and parallel splicing in professional installations. This flame retardant connector accommodates 18-16 AWG solid/stranded and 14 AWG stranded conductors with a maximum operating temperature of 221�F (105�C) and 600V rating. The light blue housing provides easy identification while the insulation displacement design eliminates wire stripping for faster installations.

Professional Features & Benefits

  • 18-14 AWG Wire Range: Accommodates multiple conductor sizes for versatile connection applications in residential and commercial wiring.
  • 600V Maximum Rating: Provides reliable performance in standard electrical systems with professional voltage capacity.
  • Flame Retardant Design: Enhances safety in electrical installations with fire-resistant housing material for code compliance.
  • 221�F Operating Temperature: Maintains connection integrity in demanding thermal environments up to 105�C.
  • UL and CSA Approvals: Meets North American safety standards for professional electrical installations and inspections.
  • Insulation Displacement Technology: Eliminates wire stripping requirements for faster installation and consistent connections.
  • Light Blue Housing: Provides clear visual identification for easy circuit tracing and maintenance.

Technical Specifications

  • Agency Approvals: UL and CSA
  • Conductor Sizes: 18 - 16 AWG / 14 AWG Stranded
  • Connection Type: Double Run or Tap
  • Connector Style: Insulation Displacement
  • Family: IDC for Electrical Applications
  • Flame Retardant: Yes
  • Maximum Operating Temperature Celsius: 105 Degree Celsius
  • Maximum Operating Temperature Fahrenheit: 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 16 AWG
  • Minimum Wire Gauge: 18 AWG
  • Packaging: Box
  • Product Color: Light Blue
  • Product Family: IDC for Electrical Applications
  • Rohs 2011 65 Eu Compliant: Yes
  • Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
  • Trademark: Scotchlok

Professional Applications

  • Residential electrical installations and service upgrades
  • Commercial building electrical systems
  • Industrial control panel connections
  • Telecommunications and data center wiring
  • HVAC system electrical connections
  • Lighting circuit tap connections
  • Emergency and backup power systems

Why Choose 3M Quality?

3M Scotchlok connectors deliver proven reliability with UL and CSA approvals, flame retardant construction, and RoHS compliance. The insulation displacement design ensures consistent connections while the 600V rating and 221�F operating temperature provide professional-grade performance for demanding electrical applications.

Manufacturer Resources

Product Specs

Agency Approvals:
UL and CSA
Conductor Sizes:
18 - 16 AWG / 14 AWG Stranded
Connection Type:
Double Run or Tap
Connector Style:
Insulation Displacement
Family:
IDC for Electrical Applications
Flame Retardant:
Yes
Maximum Operating Temperature Celsius:
105 Degree Celsius
Maximum Operating Temperature Fahrenheit:
221 Degree Fahrenheit
Maximum Recommended Voltage Rating:
600 V
Maximum Wire Gauge:
16 AWG
Minimum Wire Gauge:
18 AWG
Packaging:
Box
Product Color:
Light Blue
Rohs 2011 65 Eu Compliant:
Yes
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Trademark:
Scotchlok
Department:
Electrical
Product Type:
Connector

3M 560-BOX – Frequently Asked Questions

1) What wire sizes does the 3M Scotchlok 560 connector take?
The Scotchlok 560 takes 18 and 16 AWG solid or stranded, plus 14 AWG stranded. Solid 14 AWG is outside the range, so on a 14 AWG solid branch circuit this is the wrong connector. Both conductors going into the connector need to fall inside that range, since the blade seats on a fixed gauge window.
2) Do I have to strip the wire before using a Scotchlok 560 tap connector?
No stripping. It's an insulation displacement connector: you lay the unstripped conductors in the channels and crimp the cover down with pliers, and a metal blade cuts through the insulation to make contact. That's the whole reason these get used on lighting taps and control wiring, one hand and a pair of pliers instead of strip, twist, and cap.
3) Can I tap an existing live-run conductor with the 3M 560 without cutting it?
Yes, that's what the double run or tap configuration is for. The through conductor stays continuous and unbroken while a second wire is brought in and connected to it, so you can pull a lighting leg or a control wire off an existing run without cutting and splicing the run itself. It also works as a straight double run splice joining two conductors.
4) Is the 3M Scotchlok 560 UL approved for use in a commercial building?
UL and CSA approved, rated to 600 V, and the housing is flame retardant. That covers standard 120/208 and 277/480 V building wiring on the line side of the rating, and the CSA mark means it passes inspection in Canada as well as the US. For an institutional spec that calls out agency-listed connectors, this one carries both marks.
5) Will an insulation displacement tap connector hold up inside a hot fixture or an HVAC unit?
The 560 is rated to a maximum operating temperature of 105 C, 221 F. That covers luminaire wiring compartments, rooftop unit control wiring, and panel interiors where ambient plus heat rise runs high. If your fixture or equipment label demands conductors and connectors above 105 C, use something rated higher.
6) Should I use a Scotchlok 560 IDC tap or a wire nut for a lighting tap?
Different jobs. A twist-on connector needs both conductors cut, stripped, and brought together, which means breaking the run to tap it. The 560 displaces the insulation and lets the run stay intact, so it's the faster choice for repetitive taps: fixture whips, control drops, occupancy sensor legs, anywhere you're doing the same connection dozens of times. Wire nuts still win when you're joining three or more conductors, or working outside the 18-16 solid / 14 stranded window, because the 560 is a two-conductor device inside that gauge range.
7) Can I use a 3M 560 IDC connector on low voltage thermostat or alarm wiring?
Yes. The 600 V figure is a maximum, so 24 V control wiring, thermostat cable, and signal pairs are well inside it, and 18 AWG is the most common gauge in that work. The 105 C rating also covers control wiring run inside equipment cabinets. The one limit to watch is gauge: 22 AWG alarm and communication cable is finer than the 18 AWG minimum and will not seat reliably.
8) What does the light blue Scotchlok body mean, and how do I tell it apart from the other 3M IDC connectors?
Light blue is 3M's color code for the 18-16 AWG solid/stranded and 14 AWG stranded range in the Scotchlok IDC family. 3M runs different colors for different gauge windows, so on a job where crews are mixing connectors the color is the fastest gauge check in the box, and it also makes circuit tracing easier during later maintenance. The part to order is 3M 560.
9) How many 3M 560 connectors come in a box?
This is the 100 pack of the 3M Scotchlok 560, boxed. Sized for a single crew or a service van rather than the bulk carton, so it suits a property maintenance shop or a contractor stocking a truck for fixture and control work.
10) Are 3M Scotchlok 560 connectors RoHS compliant for a government or institutional spec?
Compliant with RoHS 2011/65/EU, and without relying on any exemption. That matters on federal, healthcare, and education procurement where the submittal package asks for restricted-substance documentation on every installed component, not just the major equipment.
11) Is the 3M 560 connector reusable if I need to move a tap?
Treat it as single use. Displacing the insulation cuts into the jacket and drives the blade into the copper permanently, so once it's crimped the connector doesn't come back off cleanly and the conductor already has a wound at that point. If a tap has to be relocated, cut the connector out and set a fresh one on clean wire, which is part of why these ship 100 to the box.
