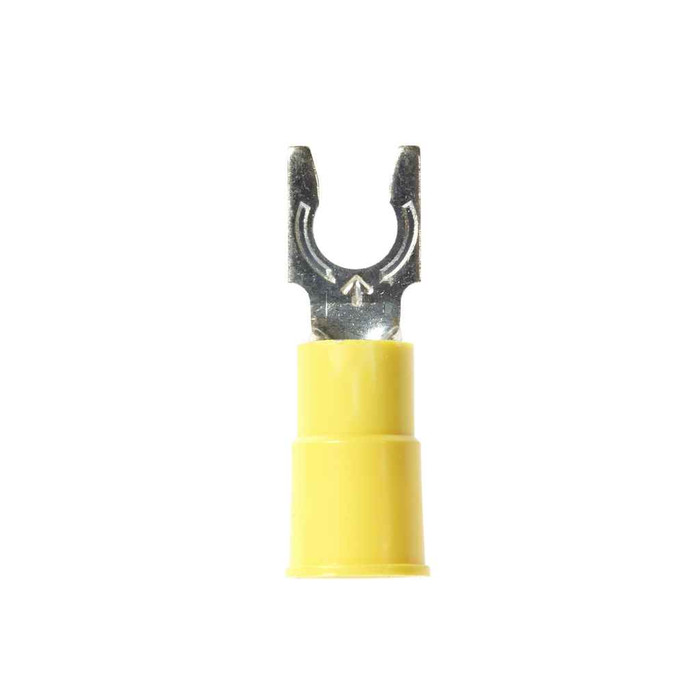

3M 7000133340 3M™ Scotchlok™ Fork Vinyl Insulated, 50/bottle, MV10-10FX, wider-tongue design for use on free-standing studs, 500/Case

3M 7000133340 3M™ Scotchlok™ Fork Vinyl Insulated, 50/bottle, MV10-10FX, wider-tongue design for use on free-standing studs, 500/Case

(No reviews yet) Write a Review

Model: 7000133340
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.50
$0.50
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
3M™ Scotchlok™ Fork Vinyl Insulated, 50/bottle, MV10-10FX, wider-tongue design for use on free-standing studs, 500/Case

  • Features

    • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
    • Wider-tongue design for use on free-standing studs
    • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
    • Electrolytic copper construction offers good conductivity
    • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
    • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Manufacturer Resources

Product Specs

Ais Url Article Information Sheet :
https://multimedia.3m.com/mws/mediawebserver?mwsId=SSSSSu9n_zu8l00xm82en8mxMv70k17zHvu9lxtD7xtBevSS
Barrel Inside Diameter:
0.135 Inch
Barrel Length Imperial :
0.25 Inch
Barrel Style:
Brazed
Clearance C :
0.29 Inch
Country Of Origin:
United States
Dimension E:
0.84 Inch
Etim Class 8 0:
EC001052
Fork Type:
Standard
Insulation Material:
Vinyl
Manufacturing Origin:
USA
Maximum Conductor Size Imperial :
10 AWG
Maximum Conductor Size Metric :
5.26 mm²
Maximum Insulation Outer Diameter Imperial :
0.25 in
Maximum Insulation Outer Diameter Metric :
3.7 mm
Maximum Insulation Outside Diameter:
0.145 in
Maximum Operating Temperature Celsius :
105.0 Degree
Maximum Operating Temperature Fahrenheit :
221.0 Degree
Maximum Recommended Voltage Rating:
600.0 V
Minimum Conductor Size Imperial :
12 AWG
Minimum Conductor Size Metric :
3.31 mm²
Overall Length Imperial :
1.03 in
Overall Length Metric :
26.16 mm
Overall Width Imperial :
0.38 in
Overall Width Metric :
9.6 mm
Packaging:
50 per bottle
Product Color:
Yellow
Product Material:
ETP Copper
Rds Url Regulatory Data Sheet :
https://cdmsweb.3m.com/ingredientcommunication/file/Media/+1izgWz97uM=
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Solution For:
Wireless Network: Infrastructure Accessories
Stud Size:
#10
Terminal Style:
Standard
Terminal Type:
Fork
Ul File Number:
E70512
Units Per Case:
500
