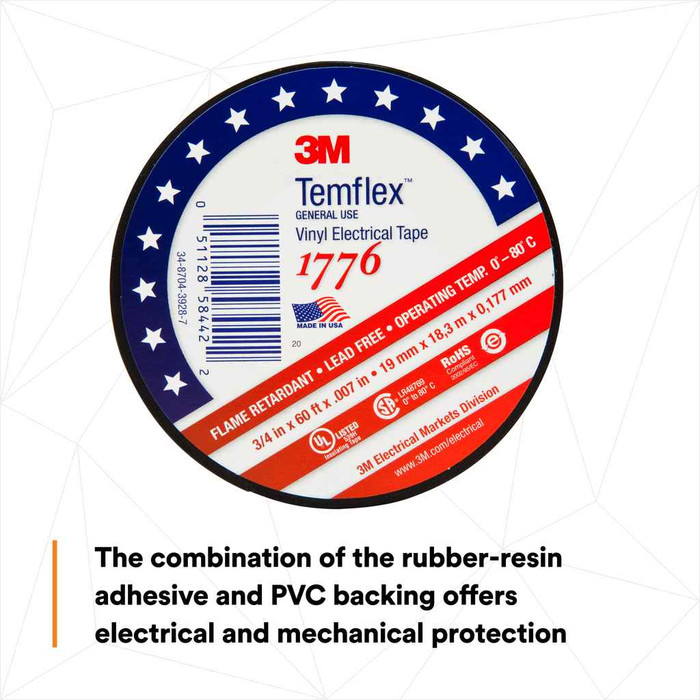

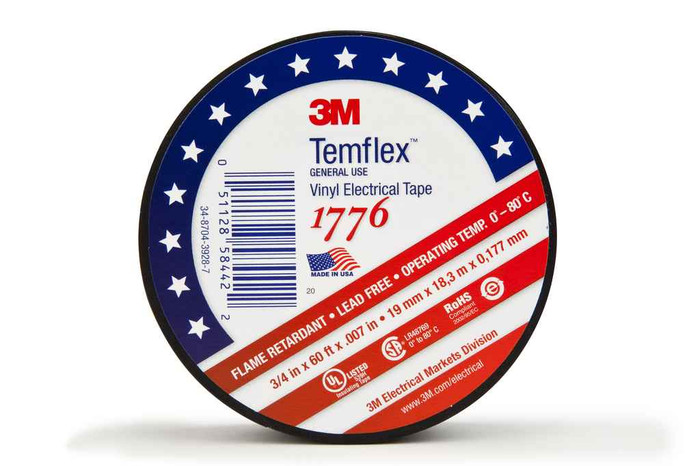

3M 7010398066 3M™ Temflex™ Vinyl Electrical Tape 1776, 3/4 in x 60 ft, 1-1/2 in Core, Black, 1 roll/carton, 100 rolls/Case

Temflex 1776 vinyl electrical tape is UL Listed and CSA Certified, and it meets RoHS 2011/65/EU. That covers the usual inspector question on general-purpose insulating and color-coding work in commercial electrical installations.

It is rated 32 to 176 degrees F (0 to 80 degrees C). That rules it out for taping directly on hot motor leads or in unconditioned spaces that go below freezing during install, since vinyl applied under 32 degrees F will not conform or bond properly. For a hotter or colder job you want a higher-temperature rated vinyl tape instead.

The tape measures 7.0 mil (0.178 mm) total thickness without liner. That is a heavier build than typical 6-mil general-purpose vinyl, so you get more layers of dielectric per wrap on a splice jacket or harness overwrap. It is a general-use grade tape, not a premium all-weather grade, so for direct-buried or outdoor splices pair it with a rubber splicing mastic underneath.

Shelf life on Temflex 1776 is 1825 days, five years from date of manufacture. That makes a 100-roll case reasonable to hold in a warehouse or MRO crib without churning it, though rotate stock oldest-first so the rubber-resin adhesive is still fresh when it goes out on a job.

PVC vinyl backing with a rubber-resin adhesive. That combination is what lets it stretch and conform around a splice and bond layer to layer so the wrap seals to itself rather than unwinding. The vinyl backing also carries the mechanical abrasion protection over the splice.

Yes. The rolls are wound on a 1-1/2 in core in the 3/4 in width, which is the common core and width combination handheld electrical tape dispensers and tape guns are built around.

Part 7010398066 is black only. Black is the general insulating and jacketing color; if you are color coding phases or identifying circuits at a panel, you need the colored Temflex rolls ordered separately, not this pack.
