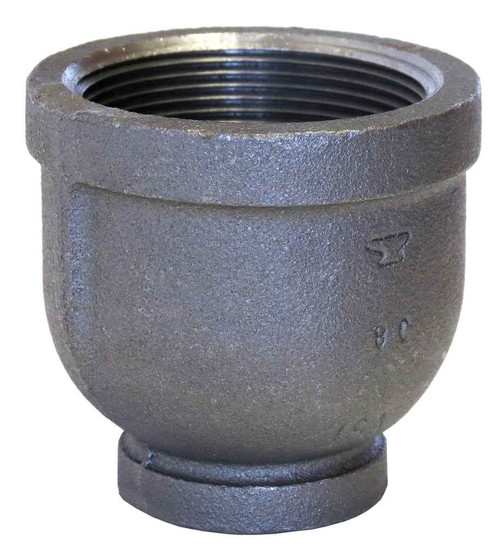

3X11/2 GALV MI REDUCER
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 3
- Size 2:
- 1.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Reducer
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 3.47 lbs
ASC Engineered Solutions 311091201 – Frequently Asked Questions
1) What size pipe does the ASC 3 x 1-1/2 galvanized malleable iron reducer connect?
It takes 3 inch pipe on the large end and 1-1/2 inch on the small end, both female pipe thread (FPT). So it threads onto male NPT pipe ends or male-threaded nipples on each side, not onto plain unthreaded pipe.
2) Is this malleable iron reducer approved for fire sprinkler piping?
It carries UL/FM approval, which is what a sprinkler contractor needs for fittings on a fire protection line. It is galvanized malleable iron, standard pattern, dimensioned to ASME B16.3.
3) Can I use a galvanized malleable iron reducer on a wet or outdoor line?
The galvanized coating is applied to ASTM A-153, hot-dip galvanizing for iron and steel hardware, so it holds up in damp service and on dry-pipe or exposed runs better than black iron. The body is malleable iron to ASTM A-197.
4) Should I use a threaded reducer or a bushing to go from 3 inch to 1-1/2 inch?
This part is a reducing coupling: female threads on both ends, so it sits between two male pipe ends and shortens the run by its own length. A bushing is male on the large side and screws into an existing female port instead. Pick the reducer when you are joining two threaded pipe ends; pick a bushing when you are stepping down out of a female fitting or valve.
5) What is the ASC part number for the 3 x 1-1/2 inch galvanized malleable reducer?
Order it as ASC Engineered Solutions part 311091201. That is the galvanized malleable iron, standard pattern, 3 inch by 1-1/2 inch FPT reducer.
