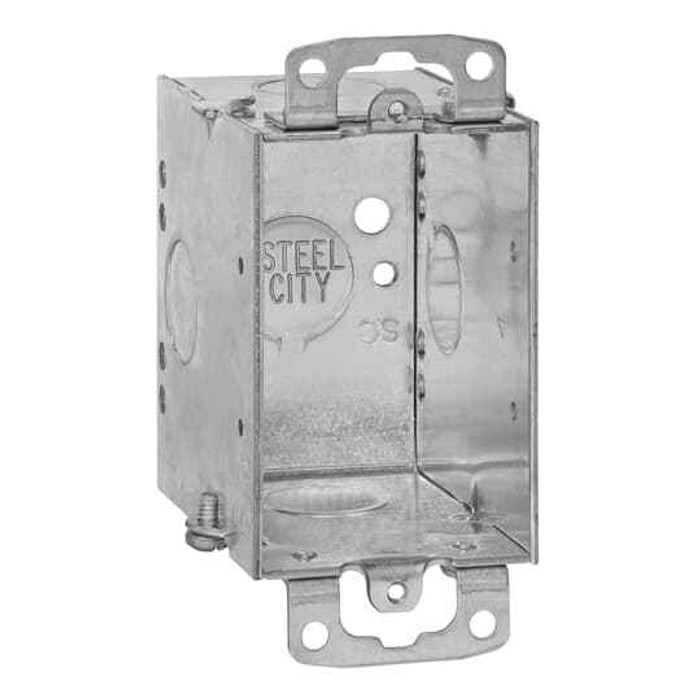

3X2X2-3/4 DEV BX 1/2 KO WE 25
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Package Level 1 Depth Length:
- 13.9 in353 mm
- Package Level 1 Height:
- 6.3 in160 mm
- Package Level 1 Units:
- 25 piece
- Package Level 1 Width:
- 9.7 in246 mm
- Package Level 2 Units:
- 1950 piece
- Product Type:
- Switch box
- Standards:
- UL E2969
- Volume:
- 14 in³
- Department:
- Electrical
- Product Group:
- Electrical Enclosures
- Product Subgroup:
- Boxes
- Product Type2:
- Switch Boxes
- Product Size:
- 3 Inches Height x 2 Inches Width x 2-3/4 inches depth
- Product Color:
- Silver
- Product Material:
- Steel
Steel City CW12-25L – Frequently Asked Questions
1) How many wires can I put in a Steel City CW12-25L switch box?
The CW12-25L is a 14 cubic inch steel device box. Box fill is calculated off that 14 in3 volume, so it suits a single device with a modest conductor count. If you are running multiple 12 AWG circuits through the same box, step up to a deeper or larger-volume box instead.
2) What size is the Steel City CW12-25L box?
It measures 3 inches by 2 inches with a 2-3/4 inch depth, the standard single-gang device box footprint. That 2-3/4 depth is the deep version, so confirm your stud cavity and any insulation behind it will take the full depth before you nail it in.
3) Does the Steel City CW12-25L take 1/2 inch conduit or cable connectors?
The knockouts are 1/2 inch, so it accepts 1/2 inch EMT connectors, NM cable clamps or AC/MC connectors sized for a 1/2 inch KO. Nothing larger will land without a reducing washer arrangement.
4) Is the CW12-25L sold individually or by the box?
It ships 25 pieces to a carton, so ordering one unit gets you 25 boxes. The carton measures 13.9 x 9.7 x 6.3 inches. Larger pallet quantities run 1,950 pieces, which is what a distributor or a large rough-in order would pull.
5) Can I use the Steel City CW12-25L with metal conduit as an equipment ground?
It's a steel box, which is what makes a metallic raceway or armored cable grounding path work back to the enclosure. A nonmetallic box cannot do that. Bond your device to the box with the green screw or a pigtail as your local inspection requires.
6) Steel City CW12-25L versus a plastic old-work box, which do I need?
Two different jobs. The CW12-25L is a steel new-work device box, 3 x 2 x 2-3/4, made to be fastened to framing before drywall goes up and to carry a metallic grounding path. A nonmetallic old-work box mounts to finished drywall with wings and is for retrofit cut-ins. If the wall is already closed, this is not the box.
7) Will a standard switch or receptacle plate cover the CW12-25L?
Yes. At 3 x 2 inches across the face it is the standard single-gang device opening, so any standard single-gang toggle or duplex wall plate lands on it. The finish is plain silver steel, since the box is meant to be buried behind the plate.
