Metallics JBSC5 4-40 x 1/2 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

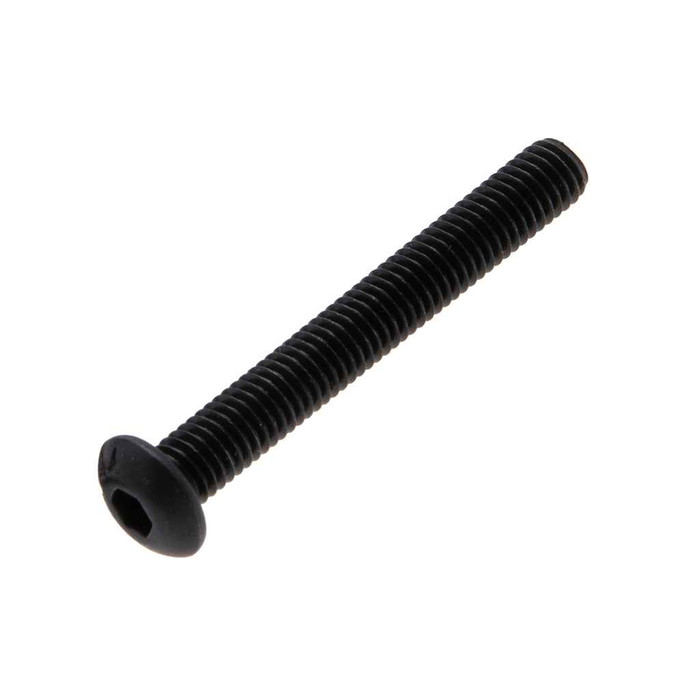

Metallics JBSC5 4-40 x 1/2 in. Socket Button Head Hex Cap Screws - Alloy Steel Black - 100qty

Metallics JBSC5 4-40 x 1/2 in. Socket Button Head Hex Cap Screws - Alloy Steel Black - Each

(No reviews yet) Write a Review

Model: JBSC5
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
4-40 x 1/2 in. Socket Button Head Hex Cap Screws - Alloy Steel Black - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | 8% minimum (applies to machined specimens of lengths at least 4D where D equals the nominal diameler of the screw) | 35% minimum (applies to machined specimens) | Screws must be of a length equal to or greater than 3 diameters to be subject to tensile testing | Class 3A threads over 1" diameter screws are Class 2A threads

  • Features

    • Button Socket head with Hex Drive
    • 4-40 Diameter, 1/2" Length
    • The are not recommended for critical, high-strength applications.
    • Alloy Steel Black Material
    • Screws are supplied plain.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.3-2012
Division:
Electrical H1
Drive Type:
Hex
Fastener Head Color:
Black
Fastener Head Height:
0.051 - 0.059 in.
Fastener Head Type:
Socket
Fastener Head Width:
0.201 - 0.213 in.
Fastener Length:
2-Jan
Hardness:
Rockwell C39-44
Hex Size:
16-Jan
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Socket_Head_Button_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.18 lbs
Product Width:
3 in
Slot Depth:
0.035
Sub Division:
Electrical-E H2
Tensile Strength:
840 lb minimum
Thread Per Inch:
40
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UN
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Cap Screw
Type2:
Cap Screw
Series:
BSC
Product Finish:
Black
Product Details:
Cap Screw
Product Material:
Alloy Steel Black

Metallics JBSC5 – Frequently Asked Questions

1) Will the JBSC5 thread into an existing 4-40 tapped hole?
Yes. The screw is a 4-40 UN thread at 40 threads per inch made to ANSI/ASME B1.1, which is the standard Unified coarse 4-40 thread used in device plates, enclosures and instrument panels. It will run into any clean 4-40 tapped hole or 4-40 nut. It is not metric, so an M3 hole is not a match.
2) Are these black screws plated or coated for corrosion resistance?
No coating. The JBSC5 is alloy steel black and supplied plain, so the black is the mill oxide finish, not a plated or organic corrosion barrier. Keep them to dry interior work such as panels, enclosures in conditioned space and equipment assembly. For wet or exterior locations use a stainless or zinc-plated fastener.
3) What quantity do these Metallics 4-40 button head screws come in?
They ship in a jar of 100, with 100 count as the order minimum. Metallics notes other sizes and quantities are available by request, so if your spec calls for a different length in the BSC button socket head family it can be sourced.
4) Does the JBSC5 meet Buy American requirements for a government or institutional job?
Metallics lists the JBSC5 as compliant for both ARRA and Buy American purposes, which is what most public-agency and federally funded specs ask for on fasteners. Country of origin is China. If your contract clause is Buy America rather than Buy American, confirm which standard the spec cites.
5) What dimensional standard do these socket button head screws conform to?
Head and thread geometry follow ASME B18.3-2012 for socket screws, with threads to ANSI/ASME B1.1. That means the 0.201 to 0.213 inch head and 1/16 hex socket are to published dimensions, so they interchange with any other standards-conforming 4-40 button socket head screw in the same hole.
6) Is a 1/2 inch long 4-40 screw long enough for tensile-rated use?
Yes, by Metallics' own rule. Screws must be at least 3 diameters long to be subject to tensile testing, and at 1/2 inch the JBSC5 is well past 3 times its 0.112 inch nominal 4-40 diameter. The 840 lb minimum tensile value applies.
