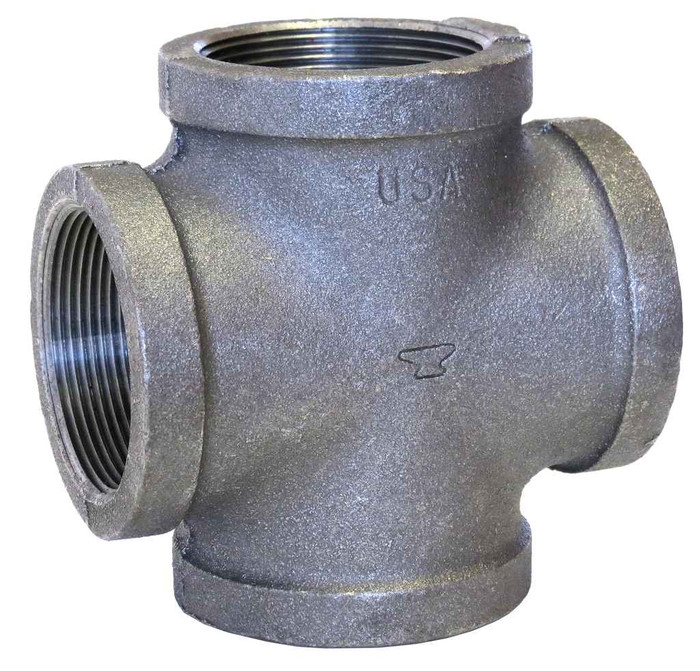

4 BLK MI CROSS
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- End Conn Size 4:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 4
- Size 2:
- 4
- Size 3:
- 4
- Size 4:
- 4
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Crosses
- Product Type:
- Cross
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 13.5 lbs
ASC Engineered Solutions 310071600 – Frequently Asked Questions
1) Are all four openings on the 4 inch black malleable iron cross the same size?
All four outlets are 4 inch female pipe thread, so it is a straight 4 x 4 x 4 x 4 cross with no reducing branch. Threads are cut to ASME B1.20.1 (NPT), so it mates with standard 4 inch threaded steel or iron pipe.
2) Can I use a black malleable iron cross on a potable water line?
No. Black malleable iron is for non-potable service, typically fire protection, gas, compressed air, and similar dry or closed systems. The black finish is an uncoated mill finish with no corrosion protection, so for potable or wet exposed service you want a galvanized fitting instead.
3) Is this a Class 150 standard cross or an extra heavy fitting?
It is a standard (STD) pattern malleable iron cross, not extra heavy. Pressure rating follows ASME B16.3, which is the governing standard for threaded malleable iron fittings. If your drawing calls out Class 300 extra heavy, this is the wrong weight and you need the heavier pattern.
4) What material spec does this 4 inch cross meet?
The casting is malleable iron produced to ASTM A-197, with dimensions and pressure class to ASME B16.3 and NPT threads to ASME B1.20.1. That is the full spec trio most submittals ask for on a threaded malleable fitting.
5) How heavy is a 4 inch malleable iron cross, and will it need support?
It weighs 13.5 lbs on its own. At 4 inch size with four filled branches hanging off it, plan hangers or a support close to the fitting rather than letting the pipe carry it.
