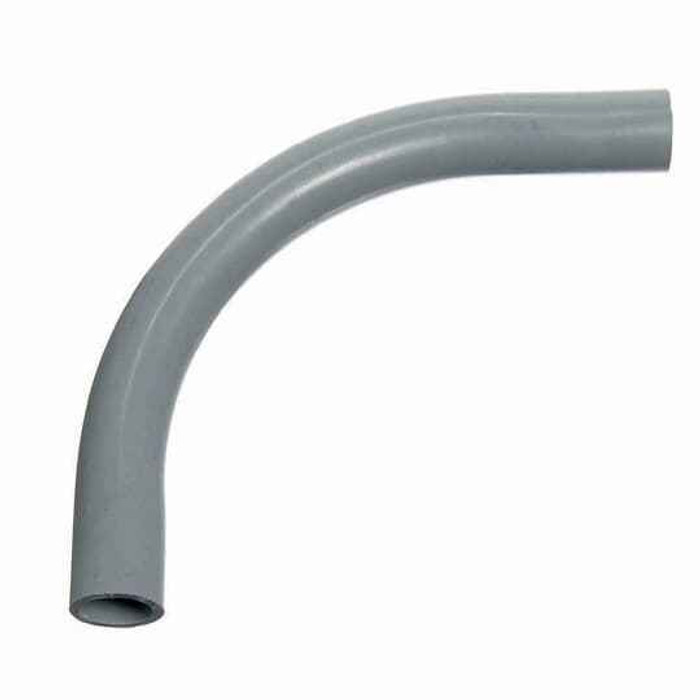

Carlon 4 Inch Gray PVC Schedule 40 Standard 90 Degree Elbow
Professional-Grade Non-Metallic Conduit Fitting
The Carlon 4 Inch Gray PVC Schedule 40 Standard 90 Degree Elbow delivers professional-grade conduit fitting performance for rigid non-metallic electrical installations. This PVC Schedule 40 elbow features standard 90-degree directional change designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand for conduit system routing.
Professional Features & Benefits
Superior Construction Quality
- Schedule 40 PVC Construction - Heavy-duty wall thickness provides maximum durability and impact resistance for demanding electrical applications
- Standard 90 Degree Angle - Precise directional change maintains proper conduit alignment and wire pulling efficiency
- 4.5 Inch Outside Diameter - Engineered dimensions ensure perfect fit with 4 inch Schedule 40 conduit systems
- Gray Color Coding - Industry standard gray finish for professional electrical installations and easy identification
UL Listed Safety & Compliance
- UL E323335 Listed - Certified safety performance meets National Electrical Code requirements for conduit fittings
- Code Compliant Installation - Approved for use in residential, commercial, and industrial electrical systems
- Non-Metallic Advantage - Corrosion-resistant PVC construction eliminates rust and galvanic corrosion concerns
Technical Specifications
Nominal Size: 4 inches, Outside Diameter: 4.5 inches, Material: Schedule 40 PVC, Color: Gray, Standards: UL E323335 Listed, Product Type: Rigid Non-Metallic Conduit Elbow, Angle: Standard 90 degrees, Selling Unit: Each, Application: Conduit system directional changes
Installation Process
- Measure and cut conduit runs to proper length ensuring square, clean cuts for optimal fitting connection
- Test fit elbow with conduit sections to verify proper alignment and positioning before final assembly
- Apply appropriate PVC solvent cement to conduit end and elbow socket following manufacturer specifications
- Insert conduit fully into elbow socket with quarter-turn twist to ensure complete cement distribution
- Hold connection firmly for 30 seconds allowing initial cement set for reliable joint integrity
- Verify elbow orientation provides proper 90-degree directional change for conduit run continuation
Professional Applications
Ideal for:
- Underground Electrical Systems - Direct burial conduit runs requiring directional changes around obstacles and property boundaries
- Commercial Building Wiring - Large conduit systems in office buildings, retail spaces, and industrial facilities
- Residential Service Entrances - Main electrical service conduit routing from meter to panel locations
- Industrial Power Distribution - Heavy-duty electrical conduit systems in manufacturing and processing facilities
- Outdoor Electrical Installations - Weather-resistant conduit systems for exterior lighting and power distribution
- Concrete Encased Conduit - Embedded electrical systems in concrete foundations and structural elements
- Parking Lot Lighting - Underground conduit systems for area lighting and electrical distribution
- Municipal Electrical Projects - Public works electrical installations requiring durable conduit fittings
Schedule 40 PVC Advantage
Carlon Schedule 40 PVC construction provides superior strength and durability compared to lighter wall conduit systems. The heavy-duty wall thickness resists impact damage during installation and provides long-term protection for electrical conductors. PVC material offers excellent chemical resistance, UV stability, and temperature performance for both indoor and outdoor electrical applications.
Why Choose Carlon Quality?
Carlon demonstrates unwavering commitment to UL Listed safety, reliable performance, and code compliance for electrical professionals. Every Schedule 40 elbow undergoes rigorous quality testing to ensure consistent dimensions, proper fit, and long-term durability in demanding electrical installations, making Carlon the trusted choice for contractors nationwide.
Manufacturer Resources
Product Specs
- Color:
- Gray
- Material:
- PVC
- Nominal Size:
- 4 in
- Outside Diameter:
- 4.5 in
- Product Name:
- FITTINGS OF PLASTIC FOR TUBES, ETC.
- Product Type:
- Rigid Non-Metallic Conduit-Schedule 40 Elbows
- Selling Unit Of Measure:
- each
- Size:
- 31.01 Inches
- Standards:
- UL E323335
- Product Group:
- Conduit Systems
- Department:
- Electrical
- Product Sub group:
- Elbows
- Product Type2:
- Pvc Schedule 40 Elbows
