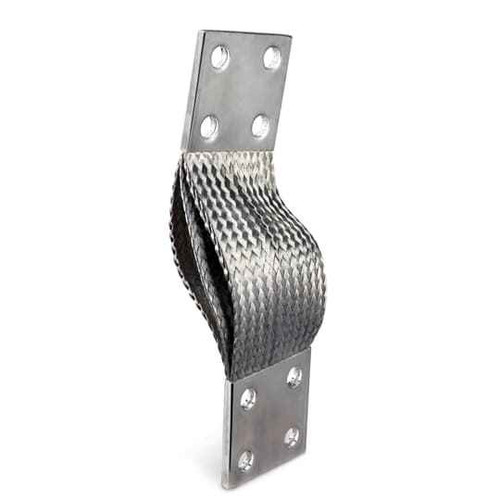

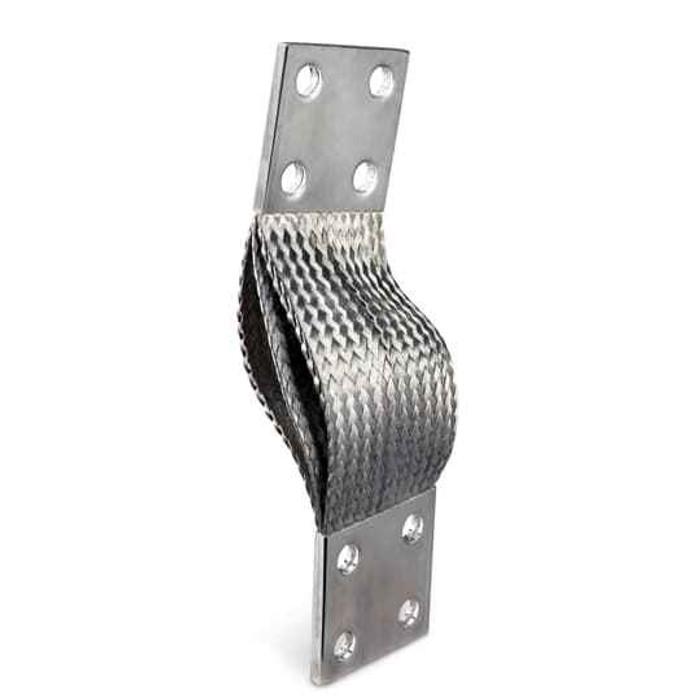

4H JMPR BRD ASY6 1500 H9/16 L12
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Non-Insulated
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 12 in304.8 mm
- Product Type:
- Extra-Flexible Jumper Braid
- Selling Unit Of Measure:
- each
- Standards:
- NEMA
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBE4H150A1-12 – Frequently Asked Questions
1) How long is the Blackburn FBE4H150A1-12 jumper braid?
The FBE4H150A1-12 braid measures 12 inches (304.8 mm) long, which is the L12 in the part number. If your bond path between the two connection points is longer than that once you account for slack and routing, step up to a longer braid rather than stretching this one tight.
2) Is the Blackburn FBE4H150A1-12 bonding braid insulated?
No. It is a non-insulated extra-flexible braid, so the conductor is bare along its full length. Keep it routed clear of live parts and of any surface it could chafe against, since there is no jacket to rely on for separation.
3) Why use a flexible jumper braid instead of a solid bonding conductor across a moving joint?
On anything that moves or vibrates, an expansion joint in a busway, a hinged enclosure door, a transformer or motor base, a solid conductor work-hardens and eventually cracks at the terminations. The FBE4H150A1-12 is an extra-flexible braid built for exactly that duty: it flexes repeatedly while keeping a continuous bond path. For a fixed, rigid run, ordinary bonding conductor or strap is the cheaper and perfectly adequate choice.
4) Does the Blackburn FBE4H150A1-12 come as a finished assembly with terminals, or as bare braid I have to lug myself?
It ships as a made-up assembly, braid plus terminations at both ends, sold one to a package. You are not crimping or bolting lugs on in the field, you just land the two ends on your clean, prepared bonding surfaces with the appropriate hardware.
5) What standard does this Blackburn bonding braid conform to?
NEMA is the standard cited for the FBE4H150A1-12. That is the reference to give a specifier or inspector asking what the assembly is built to.
6) Is the Blackburn FBE4H150A1-12 made in the USA for a Buy American job?
Country of origin on this braid assembly is the United States, which is what a federal, state or institutional job with domestic-content language on the drawings needs documented.
7) What exact part number should I order for this Blackburn 12 inch jumper braid?
Order Blackburn FBE4H150A1-12. It is a single-configuration item, one model, one length, priced and shipped each, so there is no finish, size or handing option to specify on the purchase order.
