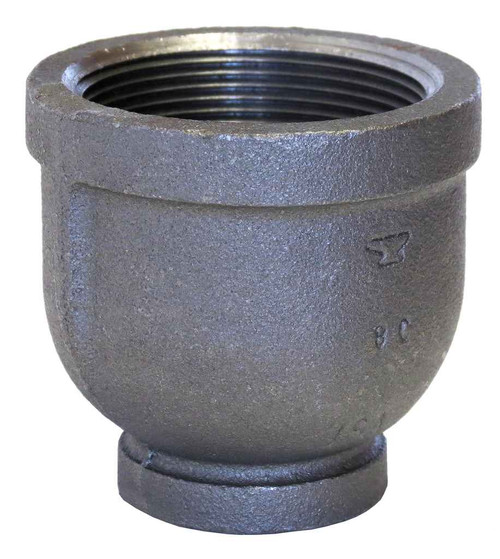

4X2 GALV MI REDUCER
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 4
- Size 2:
- 2
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Reducer
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 5 lbs
ASC Engineered Solutions 311093009 – Frequently Asked Questions
1) Does the ASC 4 x 2 galvanized malleable iron reducer have female threads on both ends?
Both ends are FPT, so the reducer threads onto male pipe threads at both the 4 inch and the 2 inch side. Threads are cut to ASME B1.20.1 (NPT), so it mates with standard threaded steel or iron pipe and nipples. If you need a male end on the large side, you want a bushing or a reducing nipple instead, not this fitting.
2) Is this a standard or extra heavy malleable iron reducer?
Standard pattern. The strength class is STD, and pressure rating follows ASME B16.3, which is the class rating standard for threaded malleable iron fittings. If your spec calls out Class 300 extra heavy, this is not the fitting for that line.
3) Will the laying length match my drawing for a 4 x 2 threaded reducer?
Dimensions are made to ASME B16.3, so the center-to-end and overall length match any other B16.3 4 x 2 threaded malleable iron reducer. That means it drops into a takeout calculated off the standard without re-measuring the run.
4) Is the galvanizing hot dip, and will it hold up outdoors?
The coating is specified to ASTM A-153, the hot dip galvanizing standard for threaded hardware and fittings, over a malleable iron casting made to ASTM A-197. That is the finish used on outdoor, damp, and dry-pipe sprinkler applications where a black fitting would rust.
5) How much does one of these 4 x 2 reducers weigh for a material takeoff?
About 5 lbs each. Worth factoring in on overhead runs where hanger spacing near the reduction is tight.
