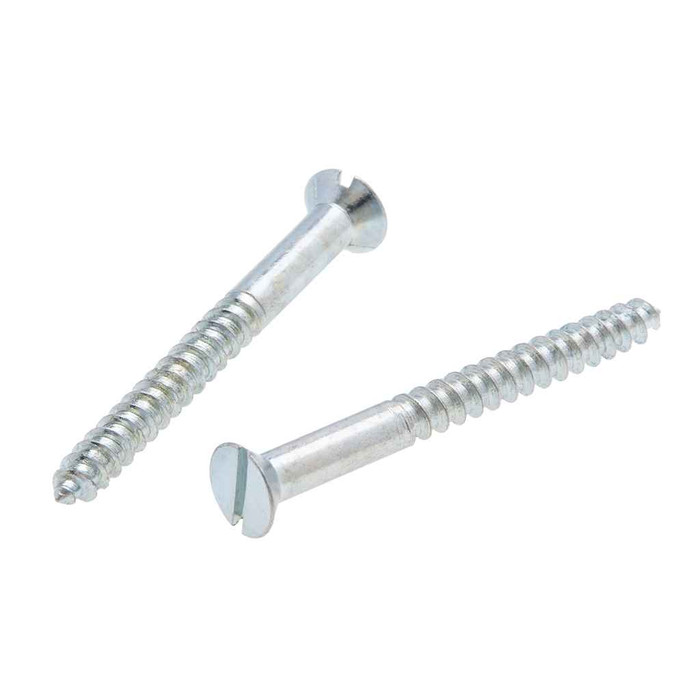

Metallics JFW125 5 x 3/4 in. Flat Head Slotted Wood Screws - Steel Zinc - 100qty

Metallics JFW125 5 x 3/4 in. Flat Head Slotted Wood Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFW125
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.13
$0.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
5 x 3/4 in. Flat Head Slotted Wood Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

  • Features

    • Steel Zinc Material
    • 5 Diameter, 3/4" Length
    • Flat Head with Slotted Drive
    • Screws of nominal lengths too short to accomodate the minimum thread length shall have threads extending as close to the underside of the head as practicable.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.075 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.22 - 0.252 in.
Fastener Length:
4-Mar
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.25 lbs
Product Width:
3 in
Screw Point Type:
Tapered Point
Slot Depth:
0.022 - 0.034
Slot Width:
0.035 - 0.043
Sub Division:
Electrical-E H2
Thread Per Inch:
20
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFW
Product Finish:
Zinc
Product Details:
Wood Screw
Product Material:
Steel Zinc

Metallics JFW125 – Frequently Asked Questions

1) Will a #5 x 3/4 in. flat head wood screw sit flush in a countersunk hole?
Yes, that is what the flat head is for. The JFW125 has a flat head measuring 0.22 to 0.252 inch across with a head height of 0.075 inch, so in a properly countersunk hole the head seats flush with the surface. Dimensions follow ASME B18.6.1, so the head geometry matches standard countersink prep for a #5 wood screw.
2) Will a 3/4 inch wood screw hold a device plate or strap onto a wood stud or joist?
Yes, for light fastening into wood that is what the 3/4 inch length suits. It has a tapered point and 20 threads per inch, so it bites into solid wood without a pilot in softwood; hardwood should be pre-drilled. Because the screw is only 3/4 inch long, thread runs nearly to the underside of the head, giving you most of that length in holding power through a thin strap, clip, or plate. It will not reach through furring or thick blocking, pick a longer screw for that.
3) Are these Metallics JFW125 screws Buy American compliant for a government job?
The JFW125 is flagged compliant for both ARRA and Buy American purposes, with country of origin listed as China. Procurement officers on federally funded work should use those two compliance flags as the basis for their documentation.
4) Can I drive these slotted wood screws with a power driver, or do I need a hand screwdriver?
The JFW125 uses a slotted drive, with a slot 0.035 to 0.043 inch wide and 0.022 to 0.034 inch deep. A slot that shallow and narrow on a #5 screw cams out easily under a power driver, so a hand screwdriver with a correctly sized flat tip, or a driver on low speed and low torque, is the practical way to set them. If you want a bit that will not slip, specify a Phillips or square drive wood screw instead.
5) Are these zinc wood screws OK for outdoor or damp locations?
These are steel with a zinc finish, which is a dry-location coating. It handles indoor humidity fine, but direct weather exposure, treated lumber, or wet locations will corrode plain zinc plating. For exterior work step up to a stainless or hot dip galvanized wood screw.
6) What size pilot hole and what screw gauge is the JFW125, and does it match other #5 wood screws?
It is a #5 gauge screw, 3/4 inch long, made to ASME B18.6.1-1997 thread and dimensional standards. That means it interchanges with any other standards-made #5 x 3/4 flat head wood screw, so it will drop into existing #5 countersunk prep on hinges, plates, and trim without re-drilling.
7) Can I get the Metallics JFW screws in a different length or a bigger jar?
Yes. The JFW series is offered in other sizes and quantities by request beyond the #5 x 3/4 inch, 100 count jar. Specify the gauge, length, and count you need when ordering.
