Wiremold 500/700 Series Solid Base Fixture Box Fitting 5.5" White Steel with Multi-Mount Compatibility

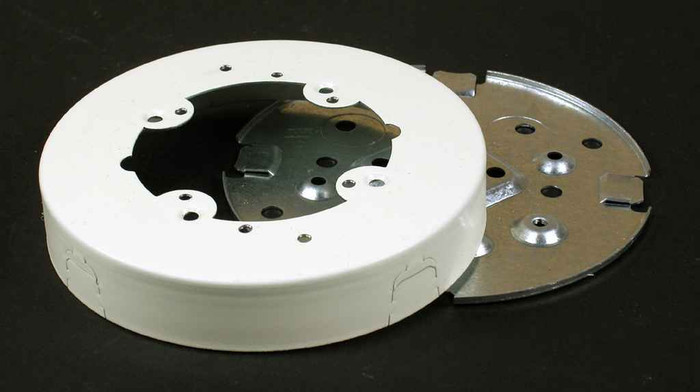

Wiremold 500/700 Series Solid Base Fixture Box Fitting

Professional fixture mounting solution with versatile device compatibility

The Wiremold 500/700 Series Solid Base Fixture Box Fitting delivers reliable fixture mounting and electrical connection capabilities in a durable white steel construction. This professional-grade fitting accommodates multiple mounting configurations with device screw centers of 2 3/4", 3 1/2", and 4 1/16" (70mm, 89mm, and 103mm), providing versatility for various fixture installations. The solid base design features four fixture stud holes, four 1/2" trade size knockouts, and a raised section for no-bolt fixture-stud applications.

Professional Features & Benefits

• 5.5" Outside Diameter: Provides ample space for connections and accommodates standard fixture mounting requirements
• 1" Depth Design: Offers sufficient volume for wire connections while maintaining low-profile installation
• White Steel Construction: Delivers durability and corrosion resistance for long-term performance
• Multi-Mount Compatibility: Accepts devices with three different mounting screw centers for maximum installation flexibility
• Four 1/2" Trade Size KOs: Enables multiple conduit connections for complex wiring configurations
• UL Listed Certification: Ensures compliance with safety standards for professional electrical installations
• Junction Box Capability: Functions as junction or pull box when used with 5736 Blank Cover for added versatility

Technical Specifications

• Country Of Origin: United States
• Depth: 1.0 in
• Product Color: White
• Product Height: 5.5 in
• Product Line: Wiremold
• Product Material: Steel
• Product Volume: 23.75
• Product Weight: 0.69 lb
• Product Width: 5.5 in

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial lighting fixture installations
• Residential ceiling and wall fixture mounting
• Industrial facility lighting systems
• Office building electrical infrastructure
• Retail establishment fixture connections
• Educational facility lighting projects
• Healthcare facility electrical installations

Why Choose Wiremold Quality?

Wiremold delivers proven reliability through UL Listed certification and durable steel construction that ensures long-term performance. The USMCA and RoHS compliant design meets current regulatory standards while the versatile mounting compatibility reduces inventory requirements and installation complexity for professional electricians.
