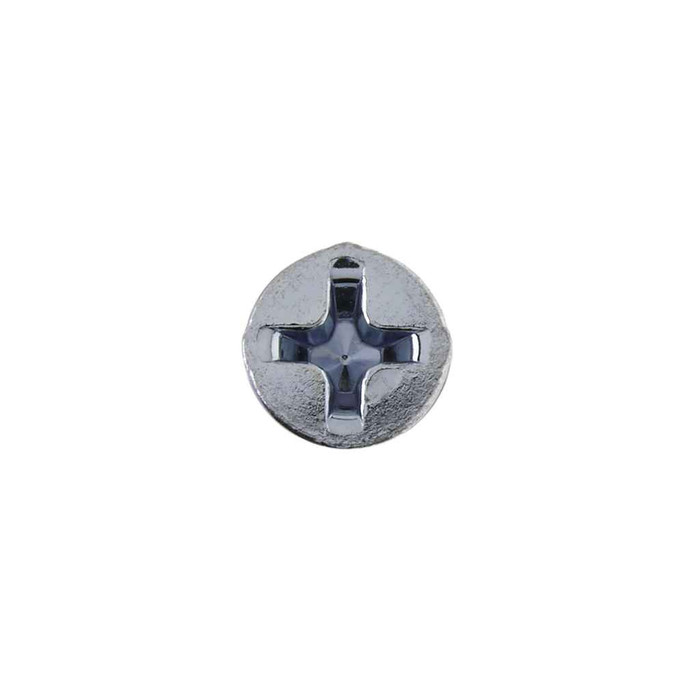

Metallics JFMP63SS 6-32 x 1 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics 6-32 x 1 in. Flat Head Phillips Machine Screws - 18-8 Stainless Steel, 100 Pack

(No reviews yet) Write a Review

Model: JFMP63SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.29
$50.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Metallics 6-32 x 1 in. Flat Head Phillips Machine Screws

Professional 18-8 Stainless Steel Fasteners for Corrosion-Resistant Applications

Metallics 6-32 x 1 in. Flat Head Phillips Machine Screws deliver reliable fastening performance with 18-8 stainless steel construction. These professional-grade machine screws feature flat head design with Phillips drive and meet ASME B18.6.3-1998 dimensional standards. The 18-8 stainless material provides superior atmospheric corrosion resistance and maintains strength at elevated operating temperatures, making them ideal for food processing machinery, refrigeration equipment, and general industrial applications.

Professional Features & Benefits

  • 18-8 Stainless Steel Construction: Provides excellent atmospheric corrosion resistance and superior performance in food processing and refrigeration applications.
  • 6-32 Thread x 1 inch Length: Standard sizing with UNC thread type ensures reliable fit and compatibility across diverse applications.
  • Flat Head Phillips Drive: Flush mounting capability with #2 driver size for clean, professional installations.
  • ASME B18.6.3-1998 Compliance: Meets dimensional standards for consistent quality and reliable performance in professional applications.
  • 550 lb Minimum Tensile Strength: Rockwell B85-B95 hardness rating delivers dependable holding power for demanding applications.
  • Temperature Resistance: Maintains strength at elevated operating temperatures while providing superior performance compared to standard steel fasteners.

Technical Specifications

  • Arra Compliant: N
  • Buy American Compliant: No
  • Country Of Origin: MUL
  • Department: Electrical
  • Dimensional Standard: ASME B18.6.3-1998
  • Division: Electrical H1
  • Drive Type: Phillips
  • Driver Size: #2
  • Fastener Head Height: 0.069 - 0.083 in.
  • Fastener Head Type: Flat
  • Fastener Head Width: 0.238 - 0.262 in.
  • Fastener Length: 1
  • Field Application: Electrical, Plumbing, Heating and Air Conditioning Industries
  • Gaging Diameter: 0.22
  • Hardness: Rockwell B85-B95
  • Height: 2.15 in
  • Language Code: EN
  • Material: 18-8 Stainless
  • Material Standard: SAE
  • Neurspe: https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
  • Order Minimum Imperial: 100
  • Order Minimum Uom Imperial: JR
  • Pack Type: Jar
  • Phillips Recess Depth: 0.094
  • Phillips Recess Diameter: 0.168
  • Phillips Recess Width: 0.029
  • Product Details: Machine Screw
  • Product Family: Electrical Supplies
  • Product Group: Fasteners
  • Product Height: 54.61 MM
  • Product Length: 3 in
  • Product Subgroup: Screws
  • Product Type: Machine Screw
  • Product Weight: 177 g
  • Product Width: 76.2 MM
  • Protrusion Gaging Diameter: 0.021 - 0.036 Above
  • Series: FM and FMP
  • Sub Division: Electrical-E H2
  • Tensile Strength: 550 lb minimum
  • Thread Per Inch: 32
  • Thread Standard: ANSI/ASME B1.1
  • Thread Type: UNC
  • Type2: Machine Screw
  • Weight: 0.39 lbs
  • Width: 3 in

Professional Applications

  • Food Processing Machinery and Equipment
  • Refrigeration System Components
  • Electrical Panel and Enclosure Assembly
  • Plumbing System Installations
  • HVAC Equipment and Ductwork
  • Marine and Coastal Environment Applications
  • General Industrial Fastening Requirements

Why Choose Metallics Quality?

Metallics machine screws meet rigorous ASME dimensional standards and SAE material specifications, ensuring consistent performance and reliability. The 18-8 stainless steel construction provides long-term durability and corrosion resistance, while the precision Phillips drive design enables professional installation results across demanding industrial applications.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
MUL
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.069 - 0.083 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.238 - 0.262 in.
Fastener Length:
1
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Gaging Diameter:
0.22
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.094
Phillips Recess Diameter:
0.168
Phillips Recess Width:
0.029
Product Family:
Electrical Supplies
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.39 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.021 - 0.036 Above
Sub Division:
Electrical-E H2
Tensile Strength:
550 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JFMP63SS – Frequently Asked Questions

1) Will a 6-32 x 1 in. flat head Phillips machine screw work in a standard device box or panel tapped hole?
The Metallics JFMP63SS is a 6-32 UNC thread machine screw cut to the ANSI/ASME B1.1 thread standard at 32 threads per inch, so it mates with any 6-32 tapped hole or 6-32 nut. That is the thread used on most electrical device boxes, plates and enclosure hardware. The 1 inch length gives you extra reach where the screw has to pass through plaster rings, spacers or thicker covers before it picks up the threads.
2) Do these flat head screws sit flush, and what size countersink do I need?
Flat head means the screw seats down into a countersunk hole and finishes flush with the surface. Head width runs 0.238 to 0.262 in. and head height 0.069 to 0.083 in., so the countersink has to be cut to roughly a quarter inch across at the top to take the head fully. On a flat-drilled hole with no countersink the head will stand proud, and you would want a pan or round head instead.
3) Are these stainless screws OK for outdoor, coastal or wet locations?
They are 18-8 stainless, which is the austenitic grade used for general atmospheric corrosion resistance and holds up in damp and coastal exposure far better than plated carbon steel. That is also why they get used in food processing and refrigeration equipment, where washdown and condensation kill zinc-plated fasteners. 18-8 also keeps its strength at elevated temperatures, which matters in HVAC and heating work.
4) Can I use these on a federally funded or Buy American job?
No. The Metallics 6-32 flat head Phillips stainless machine screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic sourcing clause, you need a fastener certified to it instead.
5) What driver bit do I need for these Metallics machine screws?
A #2 Phillips bit. The recess is 0.168 in. across, 0.094 in. deep, with a 0.029 in. slot width, which is standard #2 geometry. A #1 bit will cam out and chew the recess on a screw this size, so stick with the #2 in a driver you can keep straight in the hole.
6) How much load will a 6-32 stainless machine screw hold?
550 lb minimum tensile, with a Rockwell B85-B95 hardness. That is fine for mounting devices, panels, brackets, covers and equipment trim. Note that stainless of this grade is softer than a hardened alloy screw, so do not treat it as a structural or high-torque fastener, and go easy on the driver to avoid galling the threads.
7) How many screws come in a jar, and can I buy fewer than 100?
They ship 100 to a jar, and the jar is the minimum order unit, so 100 pieces is the smallest quantity. The filled jar weighs 0.39 lbs. For an MRO crib or a service van that is a sensible restock unit for 6-32 hardware you go through constantly.
8) Is this a machine screw or a self-tapping screw?
It is a machine screw, meaning it needs a pre-tapped hole or a nut. The 6-32 UNC thread runs the full straight shank and will not cut its own threads in sheet metal or plastic. If you are fastening into unthreaded material, you want a self-tapping or sheet metal screw, or drill and tap for 6-32 first.
9) Do these machine screws meet a dimensional spec I can put on a submittal?
Yes. The JFMP63SS flat head Phillips screws are built to ASME B18.6.3-1998 for head and drive dimensions, with threads to ANSI/ASME B1.1 and the material called out to SAE. Gaging diameter is 0.22 in. with a protrusion of 0.021 to 0.036 above gage, which is the recess check spec on that standard.
