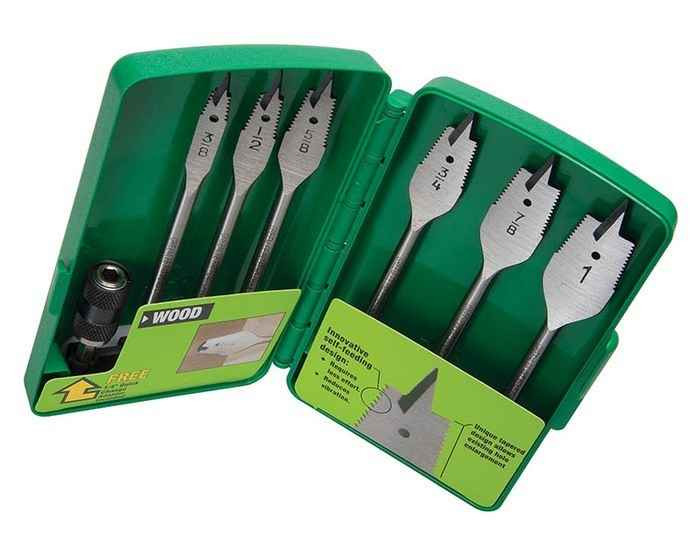

Greenlee 6-Piece Self-Feeding Spade Bit Set 3/8" - 1" with Wire Pulling Holes
Professional drilling solution with innovative self-feeding design for reduced effort and vibration
The Greenlee 6-Piece Self-Feeding Spade Bit Set delivers professional drilling performance for hardwood, softwood, plywood and drywall applications. This comprehensive set features innovative self-feeding design that requires less effort and reduces vibration during operation. Each bit is forged and heat treated for long life and includes a convenient hole in the top center for wire pulling applications. Compatible with 1/4" or larger power drills, this set provides versatile drilling solutions for professional electricians and contractors.
Professional Features & Benefits
- Self-Feeding Design: Innovative technology requires less effort and reduces vibration for improved control and user comfort during extended drilling operations.
- Wire Pulling Capability: Center hole in each bit enables efficient wire pulling through drilled holes, streamlining electrical installation workflows.
- Forged and Heat Treated Construction: Premium manufacturing process ensures exceptional durability and extended bit life for professional use.
- Complete Size Range: Six-piece set covers 3/8" to 1" diameter range for versatile drilling applications across various project requirements.
- Universal Compatibility: Designed for use with 1/4" or larger power drills for broad equipment compatibility in professional settings.
- Multi-Material Performance: Effectively bores through hardwood, softwood, plywood and drywall for diverse construction and electrical applications.
Technical Specifications
- Bit Diameter: 3/8, 1/2, 5/8, 3/4, 7/8, 1"
- Overall Length: 6-1/4 IN
- Product Type: Spade bit kit, self-feeding
Installation & Operation
- Mount the appropriate bit size in a 1/4" or larger power drill chuck and secure firmly.
- Mark the drilling location and ensure proper workpiece support and clamping for safe operation.
- Position the bit perpendicular to the work surface and engage the self-feeding tip into the material.
- Apply steady downward pressure while allowing the self-feeding design to draw the bit through the material.
- Maintain consistent drill speed appropriate for the material type and bit diameter being used.
- Complete the hole and withdraw the bit while the drill is still running to prevent binding.
Professional Applications
- Electrical rough-in and wire routing through framing members
- HVAC installation requiring precise holes for refrigerant lines and electrical connections
- Plumbing installations through wooden structural members
- General construction drilling in various wood materials and drywall
- Remodeling projects requiring clean holes for utility routing
- Commercial construction where efficient drilling and wire pulling are essential
Why Choose Greenlee Quality?
Greenlee delivers professional-grade tools engineered for demanding electrical and construction applications. This self-feeding spade bit set combines innovative design with forged and heat treated construction for reliable performance and extended service life. The integrated wire pulling feature and comprehensive size range make this set an essential addition to any professional toolkit, backed by Greenlee’s commitment to quality and durability in professional trade applications.
Manufacturer Resources
Spec Sheet
Product Specs
- Bit Diameter:
- 3/8, 1/2, 5/8, 3/4, 7/8, 1"
- Overall Length:
- 6-1/4 IN
- Product Type:
- Spade bit kit, self-feeding
- Department:
- Electrical
- Product Subgroup:
- Drill & Driver Bits
- Product Group:
- Power Tools & Accessories
- Product Length:
- 6.25 in
Greenlee 34AR-6 – Frequently Asked Questions
1) What sizes come in the Greenlee 34AR-6 spade bit set?
Six bits: 3/8, 1/2, 5/8, 3/4, 7/8 and 1 inch. That range covers the common electrical rough-in holes, from small single-cable runs at 3/8 inch up to 1 inch for conduit or bundled runs through studs and joists. All six are 6-1/4 inches overall length, so they bore through a single 2x4 or 2x6 framing member without needing an extension.
2) What is the hole in the tip of these Greenlee spade bits for?
Wire pulling. Each bit has a hole in the top center, so after you bore through a stud you can hook fish tape or a pull wire to the bit and draw it back through the hole in the same motion. It saves a second trip with a fish rod on electrical rough-in through framing.
3) Will these spade bits fit my cordless drill?
The 34AR-6 bits are made for use in a 1/4 inch or larger power drill chuck. Any standard 3/8 inch or 1/2 inch keyless chuck on a cordless drill/driver takes them. Note these are round-shank spade bits, not 1/4 inch hex quick-change, so an impact driver with a hex-only collet will not hold them.
4) What materials can the Greenlee 34AR-6 set drill?
Hardwood, softwood, plywood and drywall. These are wood-boring spade bits, so they are not for metal studs, masonry, or tile. If you are drilling steel studs for a wire run, you need a step bit or a hole saw rated for metal instead.
5) What does self-feeding mean on a spade bit, and is it better than a standard spade bit?
The tip pulls itself into the wood as it turns, so you supply less push and the drill does the work. Greenlee lists less effort and reduced vibration as the result, which matters most when you are boring a long line of studs overhead. The tradeoff versus a plain spade bit is that a self-feeding tip grabs, so hold the drill firmly and use a drill with a clutch or side handle on the 7/8 and 1 inch sizes.
6) What is the Greenlee part number for the 6-piece self-feeding spade bit set?
Greenlee 34AR-6. That is the full six-bit kit covering 3/8 through 1 inch, sold as one set rather than individual bits.
7) Will these bits hold up to daily use on a job site?
The bits are forged and heat treated, which is what gives a spade bit edge retention through repeated use rather than a stamped blank that rolls over after a few dozen holes. For an electrical crew drilling framing day in and day out, that construction is the difference worth paying for. They will still dull if you hit nails, so keep a spare 3/4 inch on hand for remodel work.
