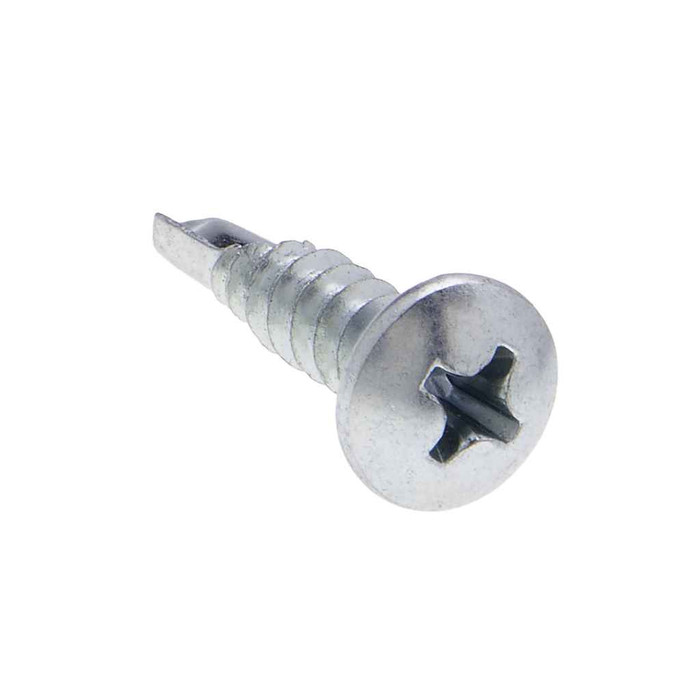

Metallics JTEK12PSS 6 x 1 in. Pan Head Phillips Self-Drilling & Tapping Screws - #2 Drill Point - 410 Stainless Steel - 100qty

Metallics JTEK12PSS 6 x 1 in. Pan Head Phillips Self-Drilling & Tapping Screws - #2 Drill Point - 410 Stainless Steel - Each

(No reviews yet) Write a Review

Model: JTEK12PSS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.37
$0.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 1 in. Pan Head Phillips Self-Drilling & Tapping Screws - #2 Drill Point - 410 Stainless Steel - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

  • Features

    • #2 Drill Point
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • Pan Head with Phillips Drive
    • 6 Diameter, 1" Length
    • 410 Stainless Steel Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#2
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.087 - 0.097 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.256 - 0.27 in.
Fastener Length:
1
Hardness:
Rockwell C38-46
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.035 - 0.090 IN
Phillips Recess Diameter:
0.159
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.38 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.055 - 0.080
Screw Point Type:
Drill Point
Sub Division:
Electrical-E H2
Thread Per Inch:
20
Thread Standard:
SAE J78 - 2013
Torsional Strength:
24 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEK
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
410 Stainless Steel

Metallics JTEK12PSS – Frequently Asked Questions

1) What metal thickness can the Metallics JTEK12PSS self-drilling screw drill through?
The JTEK12PSS is rated for panel thickness of 0.035 to 0.090 in. That covers common sheet metal gauges used for duct, strut backing plates, and light steel framing. Thicker steel than 0.090 in. needs a heavier drill point than the #2 point on this screw.
2) Do I need a pilot hole for the Metallics JTEK12PSS screw?
No. It is a Type BSD self-drilling and tapping screw with a drill point, so it bores and taps its own hole in sheet metal in one pass. Drill time is about 2.5 seconds through a 1 mm thick plate.
3) Will 410 stainless self-drilling screws rust outdoors or in a damp mechanical room?
These screws are 410 stainless steel, which is a hardenable martensitic stainless. That hardness is what lets a stainless screw drill its own hole, and the trade-off is that 410 gives less corrosion resistance than 300 series stainless. It holds up in damp interior and sheltered exterior work; for direct salt or chemical exposure, 410 is not the grade to specify.
4) What driver bit do I need for the JTEK12PSS screws?
A #2 Phillips bit. The head takes a Phillips drive with a recess diameter of 0.159 in. and a recess penetration gaging depth of 0.055 to 0.080 in., so a standard #2 insert bit seats fully. Run them at drill speed, not impact hammer, to avoid cam-out on stainless.
5) What size and thread pitch is the Metallics JTEK12PSS screw?
It is a #6 diameter by 1 inch long screw with 20 threads per inch, built to SAE J78 - 2013 for the thread form and ASME B18.6.3-2010 for dimensions. The 20 TPI machine-screw-style thread is what gives it holding power in thin steel rather than the coarse thread used in wood.
6) How much torque can these stainless self-drilling screws take before they snap?
Torsional strength is 24 lb-in minimum on the JTEK12PSS. That is the driving limit, and the published minimum torques are the same for stainless and steel self-drill screws, so there is no need to derate your driver clutch for the stainless version. Set the clutch rather than running wide open; a #6 stainless screw will twist off before it strips a thin panel.
7) Can I use the Metallics JTEK12PSS on a Buy American or ARRA funded electrical job?
Metallics lists the JTEK12PSS as both Buy American compliant and ARRA compliant. Country of origin is China. Many federal and public-agency electrical specs accept compliant commodity fasteners on that basis, so check which clause your project is written under before you commit a large quantity.
8) How do the JTEK12PSS screws come packaged and what is the minimum order?
They ship in a jar of 100, which is the order minimum (100 count). Shipping weight for the jar is 0.38 lbs. Other sizes and quantities are available by request if you need a different diameter, length, or bulk count for a standardized fleet of panels.
