Metallics DWS5V 6 x 2 in. Bugl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.16
$0.16

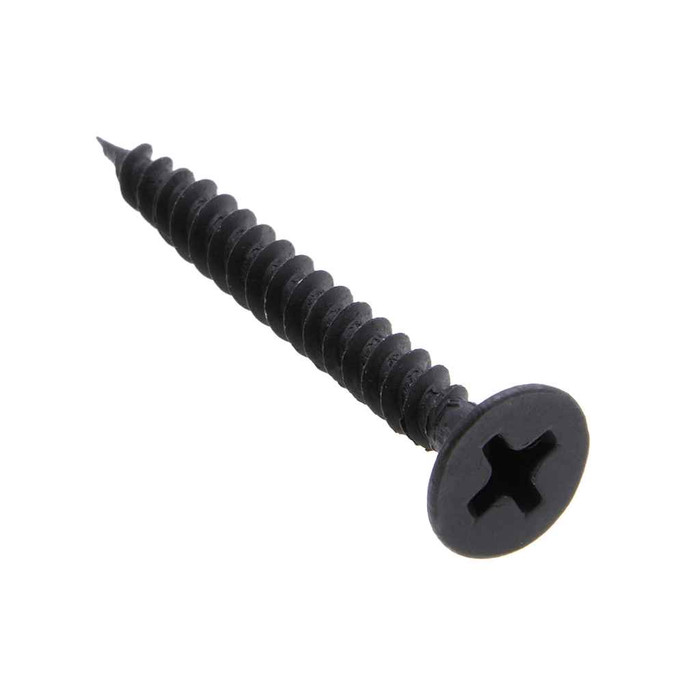

Metallics DWS5V 6 x 2 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - 500qty

Metallics DWS5V 6 x 2 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - Each

(No reviews yet) Write a Review

Model: DWS5V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.16
$0.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 2 in. Bugle Head Phillips Drywall Screws - Steel Black Phosphate - Fine Threads - 500qty

  • Features

    • Fine Threads
    • Steel Black Phosphate Material
    • Bugle Head with Phillips Drive
    • Parts are usually supplied with a black phosphate finish.
    • 6 Diameter, 2" Length

  • Additional Notes

    • Other sizes and quantities available by request | In the abscence of a single industry standard for Bugle Heads, these dimensions are offered as a guide; slight deviations are acceptable. | There is no single standard for drywall screw dimensions. These values are offered as a guide;deviations from these specifications may occur.

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
C
Buy American Compliant:
C
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.020 - 0.031 in.
Fastener Head Type:
Bugle
Fastener Head Width:
0.315 - 0.347 in.
Fastener Length:
2
Hardness:
Rockwell C44
Language Code:
EN
Material Standard:
AISI 1018
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Bugle_Hd_Phil_Fine_Thrd_Dry_Scr_Blk_Phos.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.106
Phillips Recess Diameter:
0.176 - 0.201
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
2.87 lbs
Product Width:
4.5 in
Screw Point Type:
Sharp Point
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Spacing:
Fine
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Drywall Screw
Type2:
Drywall Screw
Series:
DWS
Product Finish:
Black Phosphate
Product Details:
Drywall Screw
Product Material:
Steel Black Phosphate

Metallics DWS5V – Frequently Asked Questions

1) Is black phosphate finish on drywall screws OK for exterior or damp areas?
No. Black phosphate on the DWS5V is a mild corrosion coating meant for dry interior board work, not a weather finish. For exterior sheathing, soffits, or wet rooms, specify a corrosion resistant coated or stainless screw instead.
2) What size Phillips bit do I need to drive these Metallics drywall screws?
A #2 Phillips bit. The recess is 0.106 inch deep and 0.176 to 0.201 inch across, which is standard #2 geometry, so a worn bit will cam out and chew the recess. Keep fresh #2 bits in the gun on a big board hang.
3) Will the bugle head on these screws sit flush for taping?
Yes. The bugle head measures 0.315 to 0.347 inch across with a head height of 0.020 to 0.031 inch, so the tapered underside dimples the paper and seats just below the surface without tearing it, leaving a shallow depression you can fill with compound.
4) How many drywall screws come in a jar of Metallics DWS5V, and can I buy fewer?
They ship in a jar of 500 count, and 500 is the order minimum, so that jar is the smallest buy. Each jar weighs 2.87 lbs.
5) Are these drywall screws hard enough to drive into steel studs without snapping heads?
The DWS5V is AISI 1018 steel case hardened to Rockwell C44, which is the hardness range drywall screws need so the point bites light gauge steel and the recess holds a #2 bit under gun torque. Back the gun speed off at the end of the drive and the heads will not pop.
6) Do these Metallics drywall screws meet Buy American and ARRA requirements for a public project?
The DWS5V is flagged compliant for both Buy American and ARRA, which is what a government or institutional submittal usually asks for on fasteners. Country of origin is listed as multiple.
7) Are the published head and thread dimensions on these drywall screws exact?
They are a guide, not a hard standard. There is no single industry standard for bugle head or drywall screw dimensions, so the head width, head height, and recess figures are given as ranges and slight deviation is acceptable. If a submittal needs a held tolerance, it will not be met by a general purpose drywall screw.
8) What is the exact part number to reorder these 6 x 2 inch fine thread drywall screws?
Metallics DWS5V, from the DWS drywall screw series: #6 diameter, 2 inch length, bugle head Phillips, fine UNF thread, black phosphate. That one number covers the 500 count jar.
