Metallics JTS39 6 x 2 in. Pan ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.26
$0.26

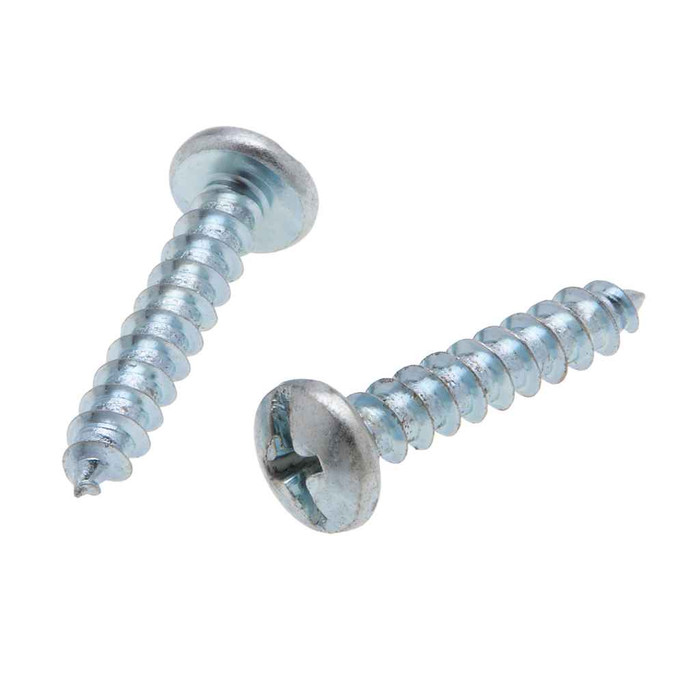

Metallics JTS39 6 x 2 in. Pan Head Phillips Sharp Point Tapping Screws - Steel Zinc - 100qty

Metallics JTS39 6 x 2 in. Pan Head Phillips Sharp Point Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTS39
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.26
$0.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 2 in. Pan Head Phillips Sharp Point Tapping Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • Pan head with Phillips Drive
    • 6 Diameter, 2" Length
    • Steel Zinc Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.087 - 0.097 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.256 - 0.27 in.
Fastener Length:
2
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell C28 - 38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10036/11237_ID-SPE-v1-Wedge_Anchors_v1.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.091
Phillips Recess Diameter:
0.153 - 0.166
Phillips Recess Width:
0.028
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.66 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Standard:
ASME B18.6.4
Torsional Strength:
24 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTS39 – Frequently Asked Questions

1) Do I need to pre-drill for a Type A sharp point tapping screw like the JTS39?
The JTS39 is a Type A tapping screw with a gimlet (sharp) point, so it starts and forms its own thread in sheet metal, thin steel and wood-type materials without a separate tapping pass. A pilot hole is still normal practice in heavier gauge stock; the point is there to start the screw, not to drill through thick plate.
2) Will a #6 x 2 in. pan head screw sit flush, or does the head stand proud?
Pan head, so it sits on the surface, not flush. Figure a head width of 0.256 to 0.27 in. and a head height of 0.087 to 0.097 in. standing above the material. If you need the head buried in the workpiece, a pan head is the wrong profile; look for a flat or oval head instead.
3) Are the Metallics JTS39 screws Buy American or ARRA compliant for a government job?
No. The JTS39 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On federally funded work with domestic sourcing requirements, this screw will not qualify.
4) What driver bit do I need for the Metallics JTS39 pan head tapping screws?
A #2 Phillips bit. The JTS39 uses a Phillips drive with a recess diameter of 0.153 to 0.166 in. and a recess depth of 0.091 in., so a #2 tip seats fully and keeps you from camming out when you drive the full 2 inch length.
5) How many Metallics JTS39 screws come in a jar, and can I buy a smaller amount?
The JTS39 ships in a jar of 100, which is the order minimum. If you need a different size or count, Metallics notes other sizes and quantities are available by request.
6) Is zinc plated steel good enough for outdoor or damp locations?
The JTS39 is zinc plated carbon steel, made to AISI 1016 to 1024. Zinc plating is an indoor and protected-location finish; it handles general humidity but it is not a marine or sustained-wet coating. For exterior or corrosive environments, specify stainless or a hot dip galvanized fastener instead.
7) What thread count and standards does the Metallics JTS39 tapping screw meet?
18 threads per inch on a #6 diameter, 2 in. long body. Threads follow ASME B18.6.4 and the head dimensions follow ASME B18.6.3-2013. Hardness runs Rockwell C28 to 38 with a minimum torsional strength of 24 lb-in, which is what keeps the shank from twisting off when it is driven into metal studs or strut.
8) How much does a jar of 100 Metallics JTS39 screws weigh for shipping?
A jar of the JTS39 #6 x 2 in. screws comes in at 0.66 lbs.
