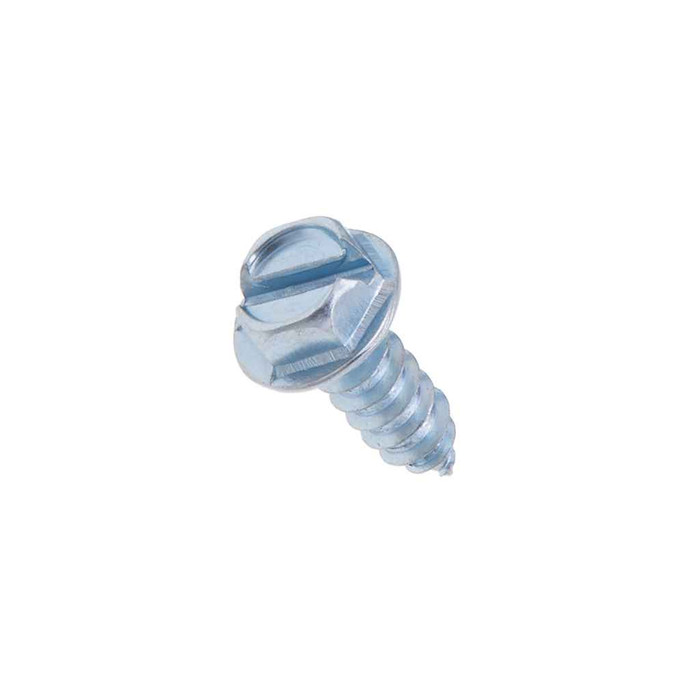

Metallics JDS160 6 x 3/4 in. 1/4 Indented Hex Head Slotted Sharp Point Tapping Screws - Steel Zinc - 100qty

Metallics JDS160 6 x 3/4 in. 1/4 Indented Hex Head Slotted Sharp Point Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JDS160
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.11
$0.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
6 x 3/4 in. 1/4 Indented Hex Head Slotted Sharp Point Tapping Screws - Steel Zinc - 100qty

  • Features

    • 6 Diameter, 3/4" Length
    • Steel Zinc Material
    • Hex 1/4 Head with slotted Drive

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Hex/Slotted
Fastener Head Height:
0.08 - 0.093 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.244 - 0.25 in.
Fastener Length:
4-Mar
Field Application:
Light Metal Assembly such as Electrical Outlets, Framing and Various Other Sheet Metal
Hardness:
RockweII C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Indent_Hex_Head_Slot_TS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.37 lbs
Product Width:
3 in
Remarks:
The catalog UPC differ from the tarnsaction daat spreadsheet UPC
Screw Point Type:
Gimlet Point
Slot Depth:
0.033 - 0.046
Slot Width:
0.039 - 0.048
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Standard:
ASME B18.6.4
Torsional Strength:
24 lb-in minimum
Washer Od:
0.302 - 0.328 in.
Washer Thickness:
0.015 - 0.025 IN
Width Across Corners:
0.272
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JDS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JDS160 – Frequently Asked Questions

1) Will a 1/4 inch drive socket fit the head on the Metallics JDS160 tapping screw?
Yes. The JDS160 has an indented hex head measuring 0.244 to 0.25 inches across the flats, so a standard 1/4 inch hex driver or nutdriver seats on it. Width across corners is 0.272 inches. The head is also slotted (slot width 0.039 to 0.048 inches, depth 0.033 to 0.046 inches), so a flat blade screwdriver works where a driver will not reach.
2) Is the Metallics JDS160 screw Buy American or ARRA compliant for a government job?
No. The JDS160 is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. If your contract carries domestic sourcing requirements, this fastener will not satisfy them.
3) Does the JDS160 screw have a built-in washer under the head?
Yes, the indented hex head sits on an integral washer face with an outside diameter of 0.302 to 0.328 inches and a thickness of 0.015 to 0.025 inches. That gives you a little more bearing area than a plain hex head, which helps when you are pulling a device or plate down onto thin sheet metal. Head height runs 0.08 to 0.093 inches.
4) How is the JDS160 packaged and what is the minimum I can order?
The JDS160 ships in a jar, with a 100 piece minimum. Total packed weight is 0.37 lbs. For jobs needing other diameters or lengths, Metallics offers other sizes and quantities in the JDS series by request.
5) Will zinc plated steel tapping screws hold up outdoors or in a damp location?
The JDS160 is carbon steel with a zinc finish, which is a mild indoor corrosion coating. It is suited to dry interior sheet metal and device work. For wet, exterior or corrosive environments, specify a stainless steel or hot dip galvanized fastener instead.
6) Does the JDS160 meet ASME fastener standards and how hard is it?
Head and body dimensions follow ASME B18.6.3-2010 and the thread conforms to ASME B18.6.4. The steel is AISI 1016 to 1024, case hardened to Rockwell C28-38, with a minimum torsional strength of 24 lb-in. Note that within the wider JDS family, dimensions for #9 diameter screws are independent of ASME B18.6.4.
7) Can a Type A sharp point tapping screw be used in wood or plastic, or only metal?
The gimlet point and 18 TPI coarse thread on the JDS160 are made for thin sheet metal, which is the application Metallics lists for it: electrical outlets, light framing and sheet metal. It will bite into soft wood or plastic, but it is not a wood screw or a self-drilling screw, so it will not cut its own hole in thicker or harder stock. Drill a pilot hole for anything heavier than light gauge.
