Manufacturer Resources
Product Specs
- Accessory Device:
- No
- Base Type:
- E26
- Cec T20:
- Yes
- Cri:
- >90
- Dimming:
- TRIAC
- Dlc:
- No
- Dlc Premium:
- No
- Energy Star:
- Yes
- Housing Color:
- White
- Input Voltage:
- 120
- Led Module Included:
- No
- Legacy Equivalent:
- 100W
- Lumens:
- 1250
- Not Suitable For Sale In California:
- No
- Power:
- 14
- Product Weight:
- 0.8325 lbs
- Rated Life Hours:
- 50000
- Selectable Color Temperature:
- 2700/3000/3500/4000/5000
- T24 Ja8:
- Yes
- Ul:
- No
- Warranty Years:
- 5
- Wireless Control:
- No
- Product Nominal Size:
- 6 in Circular

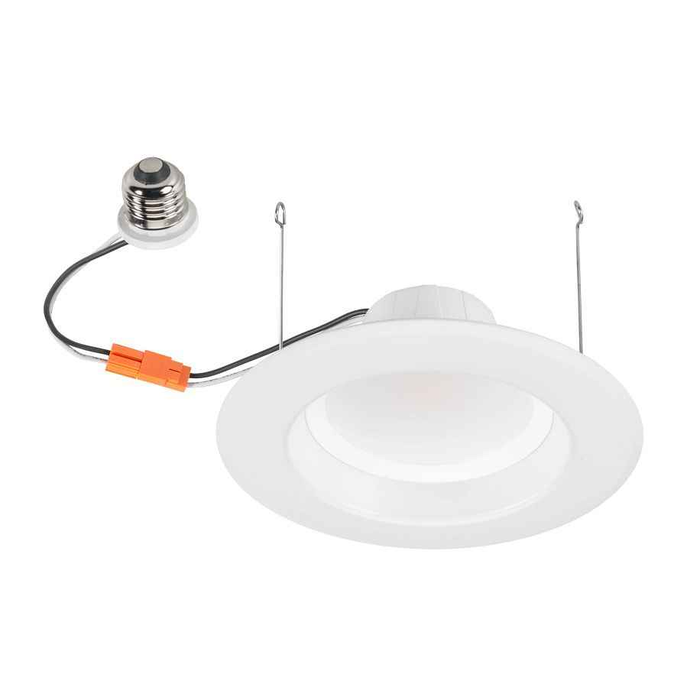

Keystone KT-LED14RD-6C-9CSF-DIM – Frequently Asked Questions
1) Will the Keystone KT-LED14RD-6C-9CSF-DIM fit an existing 6 inch recessed can?
It's a 6 inch circular retrofit built to drop into an existing 6 inch recessed housing. Power comes from the can's existing lamp socket via an E26 screw base, so no rewiring or new housing is needed. White trim finish.
2) How do I set the color temperature on this Keystone 6 inch color select retrofit?
The retrofit carries a field-selectable color switch with five settings: 2700K, 3000K, 3500K, 4000K and 5000K. You pick the setting on the unit before installing, so one part number covers warm residential spaces and cooler commercial or task areas. For property managers standardizing a building, that means stocking one SKU and matching whatever is already in the other cans.
3) Is the Keystone KT-LED14RD-6C-9CSF-DIM dimmable, and what kind of dimmer does it need?
Yes, and it is specifically a TRIAC dimming driver, so it needs a standard forward-phase (incandescent-type) 120V wall dimmer, not a 0-10V or ELV control. Input voltage is 120V only.
4) What wattage bulb does this 14W LED retrofit replace?
It replaces a 100W incandescent, putting out 1250 lumens at 14W draw. On a multi-family or hotel retrofit that's roughly 86W saved per can, and it is Energy Star certified if the job is chasing a utility rebate program.
5) Does this Keystone color select retrofit work with smart home or app-based controls?
No. There's no wireless control built in, so color temperature is set by a physical switch on the unit and dimming runs through a hardwired TRIAC dimmer. If the spec calls for app or gateway control, this isn't the part.
6) Is the Keystone KT-LED14RD-6C-9CSF-DIM DLC listed?
No. It is not on the DLC standard or DLC Premium lists, so it won't qualify for rebate programs that require DLC. It is Energy Star certified, which many residential and multi-family rebate programs accept instead.
7) How long will these 6 inch LED retrofits last before I have to go back up the ladder?
Rated life is 50,000 hours. At roughly 8 hours a day of corridor or common-area use that's about 17 years, which is why procurement buyers use these in high-ceiling or hard-access locations where lamp changes cost labor.
8) What exactly ships when I order KT-LED14RD-6C-9CSF-DIM, and how much does one weigh?
One complete 6 inch circular retrofit unit, model KT-LED14RD-6C-9CSF-DIM, with the integrated LED and E26 screw base already assembled, so there's no separate LED module to order. Each unit weighs 0.8325 lbs, useful if you're figuring a pallet count on a full-building changeout.
