Manufacturer Resources
Product Specs
- Base Type:
- Miniature Bayonet (BA9s)
- Bulb Type:
- T3-1/4
- California Title 20:
- Exempt
- Dimmable:
- FALSE
- Dlc Premium:
- FALSE
- Dlc Standard:
- FALSE
- Emitted Color:
- White
- Energy Star:
- FALSE
- Equivalent:
- 6MB, 44, 47, 238, 755, 1810, 1847, 1866
- Led Type:
- Single
- Lens Color:
- Clear
- Lumens:
- 2.4
- Ma:
- 18
- Mod In Mm:
- 0.39/10.00
- Mol In Mm:
- 0.98/25.00
- Rated Life:
- 30,000
- Viewing Angle:
- 90°
- Voltage Rating:
- 6
- Voltage Type:
- AC/DC

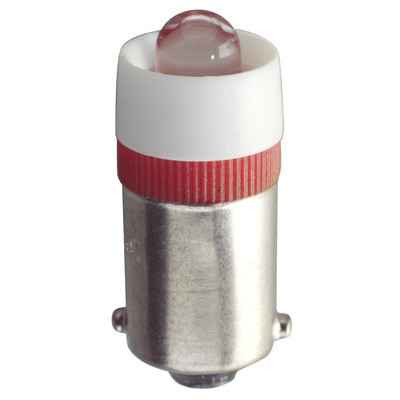

EiKO LED-6-BA9S-W – Frequently Asked Questions
1) Will the EiKO LED-6-BA9S-W replace an incandescent 1847 or 44 indicator lamp?
Yes. The LED-6-BA9S-W is listed as an equivalent to 6MB, 44, 47, 238, 755, 1810, 1847 and 1866 miniature lamps, so it drops into the same BA9s bayonet socket those lamps use. The difference you will notice is current draw: the LED pulls 18 mA where the incandescent versions draw far more, and it puts out 2.4 lumens of white light rather than the warm glow of a filament.
2) Does this 6V BA9S LED work on AC or DC control circuits?
Both. The LED-6-BA9S-W is rated 6 volts AC/DC, so it can go into 6V AC panel indicators or 6V DC control and annunciator circuits without a separate resistor or driver arrangement.
3) What size is the EiKO LED-6-BA9S-W bulb and will it fit a tight panel cutout?
It is a T3-1/4 envelope with a maximum overall diameter of 0.39 in (10.00 mm) and a maximum overall length of 0.98 in (25.00 mm), measured including the BA9s base. If the incandescent lamp you are pulling out is a standard T3-1/4 BA9s, the footprint behind the panel is the same.
4) Can I dim this miniature LED indicator lamp with a rheostat or dimming panel?
No. The LED-6-BA9S-W is non-dimmable. If your panel uses a dimming or intensity-control circuit for the indicator lamps, this lamp is the wrong choice and you should stay with a filament lamp on that circuit.
5) How wide is the light spread on this BA9S LED, and will it read clearly through a colored lens cap?
The lamp has a 90 degree viewing angle with a clear lens and a white emitted color, so it reads off-axis across a panel face rather than only straight on. Because the output is white through a clear lens, a colored lens cap or legend plate over the socket will take on its own color.
6) How long do these LED indicator lamps last compared with the incandescent ones we keep replacing?
Rated life on the LED-6-BA9S-W is 30,000 hours. For a facility with panels, annunciators or elevator fixtures full of BA9s indicators, that is the argument for changing over: far fewer trips back to relamp the same socket.
7) How much current does a 6V BA9S LED indicator draw per lamp for load calculations?
18 mA at 6 volts. Across a board with dozens of indicator positions that is a meaningful drop in load on the control transformer or battery compared with filament lamps, which matters on battery-backed annunciator and signal circuits.
8) Is the EiKO LED-6-BA9S-W a single-LED lamp or a multi-chip cluster?
Single LED construction, producing 2.4 lumens. That is an indicator-level output meant to be seen as a lit signal on a panel, not to illuminate anything. If you need a lamp to light a space, this is the wrong part.
9) Does this lamp have to meet California Title 20 requirements for our project spec?
The LED-6-BA9S-W is exempt from California Title 20. It does not carry ENERGY STAR, DLC Standard or DLC Premium listing, which is normal for a miniature indicator lamp of this size rather than a general service lamp.
10) What is the exact part number to order for the EiKO 6V white BA9S LED?
Order EiKO LED-6-BA9S-W. The part number decodes directly: 6 volt, BA9s miniature bayonet base, white emitted color, in a T3-1/4 envelope.
