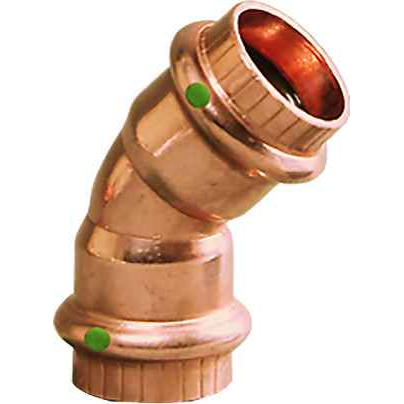

77023 Viega ProPress 45° elbow Smart Connect technology Copper, 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Country Of Origin:
- Made In Germany
- Material Type:
- Copper
- Product Dimension:
- 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 1.248"
- Product Height:
- 1.866"
- Product Weight:
- 0.153 lbs
- Product Width:
- 2.512"
Viega 77023 – Frequently Asked Questions
1) Does the Viega 77023 ProPress 45 degree elbow work with 3/4 inch copper tube on both ends?
Yes. The 77023 is a 3/4 inch by 3/4 inch press-by-press elbow, so both ends accept 3/4 inch copper tube. The connection type is P1 x P2, meaning both ends are press sockets with no threaded or sweat end. If you need to transition to threads, you need a different fitting.
2) Do I need a special press tool for the 3/4 inch Viega ProPress 45 elbow?
Yes, a press fitting cannot be soldered or threaded on. The 77023 has two press sockets (P1 x P2) and requires a press tool with the correct 3/4 inch jaw or ring for ProPress copper. No torch, flux, or solder is involved.
3) What does Smart Connect mean on a Viega ProPress fitting?
Smart Connect is Viega's unpressed-connection feature: if a joint is left unpressed during pressure testing, the fitting leaks so the installer can find it before the wall closes up. On the 77023 it is built into the 3/4 inch press sockets on both ends.
4) When should I use a 45 degree elbow instead of a 90 on a copper press line?
Two 45s let you offset around an obstruction or come into a fixture at an angle with less flow restriction than a pair of 90s. The Viega 77023 is the 3/4 inch press-by-press 45; if you need a square turn at the same size, use the 3/4 inch ProPress 90 elbow instead.
5) What part number do I order for a Viega 3/4 inch ProPress copper 45 degree elbow?
Order Viega part number 77023. That is the 3/4 inch by 3/4 inch copper ProPress 45 degree elbow with press connections on both ends.
