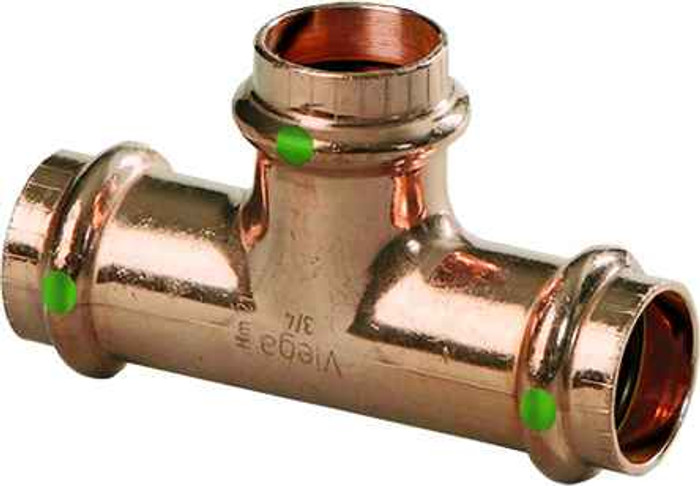

77387 Viega ProPress tee Smart Connect technology Copper, 3/4'' x 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Copper
- Product Dimension:
- 3/4'' x 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 1.248"
- Product Height:
- 2.059"
- Product Weight:
- 0.331 lbs
- Product Width:
- 3.504"
- Product Material:
- Copper
Viega 77387 – Frequently Asked Questions
1) Is the Viega 77387 ProPress tee all 3/4 inch on every outlet?
All three ports on the Viega 77387 are 3/4 inch, so it's a straight equal tee for 3/4 inch copper tube. The connection callout is P1 x P2 x P3, meaning every port is a press end rather than a threaded or sweat connection.
2) What tube does the Viega 77387 ProPress tee press onto?
It's a copper fitting made for 3/4 inch copper tube. All three ends are press connections, so you set it on the tube and crimp with a press tool and 3/4 inch ProPress jaw. No solder, no flux, no torch.
3) Can I use the Viega 77387 tee on PEX or on steel pipe?
No. This one is a copper press fitting sized for 3/4 inch copper tube. PEX needs a PureFlow press fitting and steel pipe needs a MegaPress fitting, both of which use different sealing elements and different press jaws.
4) What does Smart Connect technology do on a Viega press fitting?
Smart Connect is Viega's unpressed-connection feature: if a joint gets missed during install, water leaks at that fitting during pressure test so you find it before the walls close up. On the 77387 it's built into the 3/4 inch press ends. It does not replace pressing, it just makes a skipped press obvious.
5) How much room do I need to fit a 3/4 inch ProPress tee between studs or in a tight chase?
The 77387 measures 3.504 inches across, 2.059 inches high and 1.248 inches long. Budget beyond that for jaw clearance, since the press jaw needs to swing around the fitting body, and for the insertion depth on each tube end.
