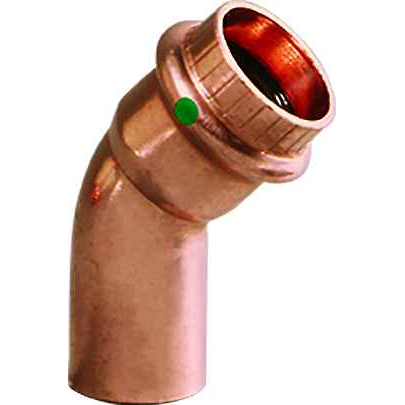

77637 Viega ProPress 45° street elbow Smart Connect technology Copper, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Country Of Origin:
- Made In Germany
- Material Type:
- Copper
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 0.957"
- Product Height:
- 1.358"
- Product Weight:
- 0.085 lbs
- Product Width:
- 2.047"
Viega 77637 – Frequently Asked Questions
1) What does P x FTG mean on the Viega 77637 ProPress 45 degree street elbow?
P x FTG is the reason this one is called a street elbow. One end is a press socket (P) that accepts 1/2 inch copper tube and gets crimped with a ProPress tool; the other end is fitting-size male (FTG), so it slips directly into the socket of another 1/2 inch fitting or press cup. That saves you a short nipple of tube between two fittings when you need a 45 degree turn in tight quarters.
2) Will the Viega 77637 press onto standard 1/2 inch copper water tube?
Yes. The press end of the 77637 is sized for 1/2 inch nominal copper tube, and the fitting body itself is copper, so it goes on hard-drawn or annealed Type K, L or M copper in the usual way for ProPress. The FTG end is 1/2 inch fitting size, which is the outside diameter of 1/2 inch tube, so it drops into any 1/2 inch copper socket.
3) Do I still need a torch or solder to install a ProPress 45 degree street elbow?
No flame, no solder, no flux. The 77637 is a press fitting: clean and mark the tube, seat the press end, and crimp with a ProPress jaw. That is the main reason contractors use these on occupied buildings, ceiling spaces and anywhere a hot work permit is a problem. You do need the press tool and the correct 1/2 inch jaw, which are not part of the fitting.
4) What does Smart Connect do on the Viega 77637 elbow?
Smart Connect is Viega's unpressed-connection feature built into the sealing element of the 77637. When the system is pressurized for testing, any connection that was missed leaks visibly at the joint, so the installer finds it during test rather than after the ceiling is closed. It does not change how the fitting is pressed.
5) How much space does the Viega 77637 take up in a tight chase?
It is a compact turn. The 77637 measures 1.358 inches high, 0.957 inches long and 2.047 inches wide, and weighs 0.085 lbs. Because the FTG leg slips straight into the next fitting instead of needing a stub of tube, the overall assembled length of a 45 offset is shorter than it would be with a standard P x P elbow.
