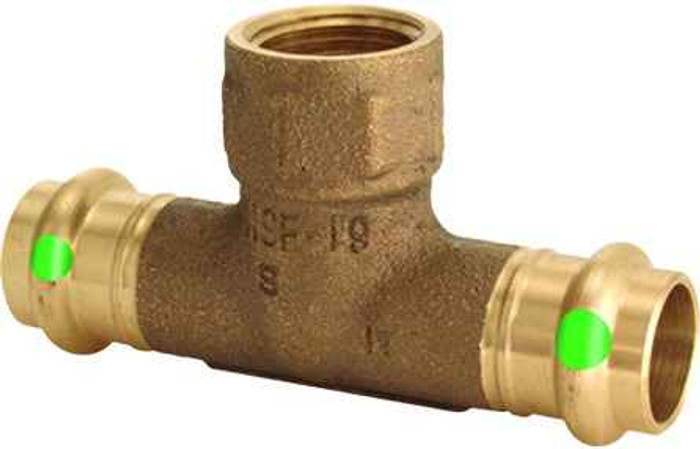

79765 Viega ProPress tee Smart Connect technology Zero Lead Bronze, 1'' x 1'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- Bronze
- Product Dimension:
- 1'' x 1'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 1.5"
- Product Height:
- 2.362"
- Product Weight:
- 0.492 lbs
- Product Width:
- 3.622"
- Product Material:
- Bronze
Viega 79765 – Frequently Asked Questions
1) What are the three connections on the Viega 79765 ProPress tee?
Two press ends and one threaded branch. The connection type is P1 x P2 x FPT, meaning the 1 inch run connects by ProPress crimp on both ends and the 3/4 inch branch is female pipe thread. So you press the run onto 1 inch copper tube and thread the branch, no soldering on any of the three ports.
2) Can I thread a 3/4 inch male adapter or valve directly into the branch of the Viega 79765 tee?
Yes. The branch is a 3/4 inch female pipe thread, so a 3/4 inch MIP nipple, valve, or gauge adapter threads straight in. Use thread sealant suited to the system. The two 1 inch run ends are press only and will not accept threads.
3) Is the Viega 79765 tee lead free for potable water lines?
It is a Zero Lead bronze ProPress tee, cast in bronze and made for potable water work where lead free fittings are required. Material is bronze throughout.
4) Will this Viega tee press onto 3/4 inch tube if I reduce the run?
No. Both run ends of the 79765 are sized for 1 inch press, and press jaws are size specific, so 3/4 inch tube will not seal in a 1 inch cup. For a 3/4 inch run you need a tee sized 3/4 inch on the run; the 3/4 inch on this fitting is the threaded branch only.
5) Does the Viega 79765 ProPress tee include the sealing element, or do I buy that separately?
The press ends come with the sealing element already installed, including Viega's Smart Connect feature, which lets an unpressed connection weep during pressure test so you can find it before closing the wall. Nothing to add at the press ends. For the 3/4 inch threaded branch you supply your own thread sealant.
6) What is the exact part number and origin for the Viega Zero Lead bronze 1 x 1 x 3/4 press tee?
Viega part number 79765, a ProPress Zero Lead bronze tee in 1 inch x 1 inch x 3/4 inch, made in Germany. Specify that number when matching an existing submittal or restocking a truck.
