Metallics RSB90 8-32 x 2-1/2 i...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.33
$0.33

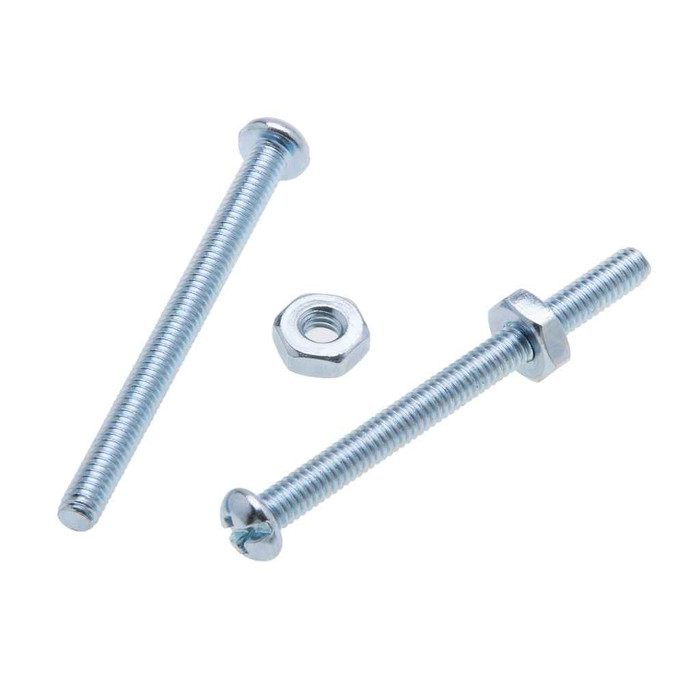

Metallics RSB90 8-32 x 2-1/2 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty

Metallics RSB90 8-32 x 2-1/2 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - Each

(No reviews yet) Write a Review

Model: RSB90
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.33
$0.33
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 2-1/2 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty

  • Features

    • Includes Hex nut
    • Round head with slotted and Phillips Drive
    • Steel Zinc Material
    • Hex Machine Screw Nut is designed to be used specifically with machine screws.
    • 8-32 Diameter, 2-1/2" Length

  • Additional Notes

    • Standard Package Square Plastic Jar | Two drives in one head | other sizes and quantities available by request | Steel machine screws which have a nominal diameter smaller than #4 are not subject to tensile testing. No. 4 and No. 5 machine screws which are shorter than 1/2" are not subject to tensile testing. Steel machine screws of diameters No. 6 to 1/2" inclusive, which are shorter than either 1/2" or 3D (where D is the nominal screw size in inches) are not subject to tensile testing. Such steel machine screws of a size to be tested shall meet the tensile load requirements listed above.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ANSI B18.6.3
Division:
Electrical H1
Drive Type:
Slotted/Phillips
Driver Size:
#2
Fastener Head Height:
0.107 - 0.12 in.
Fastener Head Type:
Round
Fastener Head Width:
0.287 - 0.309 in.
Fastener Length:
2/1/02
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stove_Bolt.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Clamshell
Phillips Recess Depth:
0.101
Phillips Recess Diameter:
0.165 - 0.178
Phillips Recess Width:
0.03
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.56 lbs
Product Width:
3 in
Slot Depth:
0.058 - 0.077
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Stove Bolt
Type2:
Stove Bolt
Series:
RSB
Product Finish:
Zinc
Product Details:
Stove Bolt
Product Material:
Steel Zinc

Metallics RSB90 – Frequently Asked Questions

1) Does the Metallics RSB90 stove bolt come with nuts, or do I have to buy those separately?
Each Metallics RSB90 8-32 x 2-1/2 inch stove bolt ships with a hex machine screw nut, so no separate nut purchase is needed. The nut is the machine screw pattern, sized specifically for machine screw threads rather than the coarser nuts used on standard bolts.
2) Will this 8-32 bolt meet a Buy American requirement on a federally funded job?
No. The Metallics RSB90 is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. On a job carrying domestic sourcing language, this is not the fastener to submit.
3) What driver do I need for an 8-32 round head combo stove bolt?
The RSB90 has a combo head, so either a flat blade or a #2 Phillips will drive it. The Phillips recess runs 0.165 to 0.178 inch across at 0.101 inch deep, and the slot is 0.045 to 0.054 inch wide, so a standard cabinet tip screwdriver seats in the slot without camming out. Handy when you are working one handed in a box and only have one bit on the driver.
4) Will a round head 8-32 screw sit flat against a device plate or box ear without binding?
The round head measures 0.287 to 0.309 inch across and only 0.107 to 0.12 inch tall, so it bears on the surface rather than sinking in. That low profile clears most cover plates and box ears, but it is a protruding head, not a countersunk one. If the drawing calls for a flush face, you need a flat head machine screw instead.
5) Is the Metallics RSB90 made to a recognized dimensional standard for machine screws?
Head and drive dimensions follow ANSI B18.6.3, the standard for inch series machine screws, and the steel is in the AISI 1006 to 1022 range. Tensile strength is 60,000 psi minimum with a hardness of Rockwell B70 to B100. Those are the numbers a spec reviewer or an institutional buyer will ask for.
6) How many 8-32 x 2-1/2 stove bolts come in a jar, and what is the minimum order?
These are sold by the jar of 100 pieces, with 100 as the order minimum. Packaging is a square plastic jar, which is what keeps loose hardware from migrating around a service van.
7) Is a 2-1/2 inch stove bolt long enough to go through a box, a bracket, and still take a nut?
At 2-1/2 inches of overall length under the round head, the RSB90 has enough reach to pass through stacked material and leave thread for the included hex nut. Keep in mind it is a through bolt setup, not a self tapping screw, so you need access to both sides of the assembly to run the nut on.
8) Is the RSB90 right hand thread, and what is the thread pitch?
Right hand thread at 32 threads per inch, the standard 8-32 machine screw pitch. It mates with any 8-32 tapped hole or 8-32 nut, including the tapped ears on standard device boxes.
