Metallics JFM95SS 8-32 x 7/8 i...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.50
$0.50

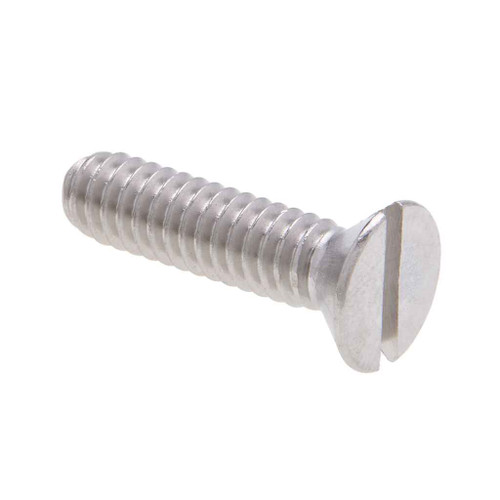

Metallics JFM95SS 8-32 x 7/8 in. Flat Head Slotted Machine Screws - 18-8 Stainless - 100qty

Metallics JFM95SS 8-32 x 7/8 in. Flat Head Slotted Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JFM95SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.50
$0.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8-32 x 7/8 in. Flat Head Slotted Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • 18-8 Stainless Material
    • Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
    • Flat head with slotted Drive
    • 8-32 Diameter, 7/8" Length
    • Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance, in food processing machinery and refrigeration equipment.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.084 - 0.1 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.285 - 0.312 in.
Fastener Length:
8-Jul
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.52 lbs
Product Width:
3 in
Slot Depth:
0.029 - 0.045
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Tensile Strength:
850 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JFM95SS – Frequently Asked Questions

1) Will the flat head on these 8-32 screws sit flush, and what countersink does it need?
Flat head, slotted drive, so it seats flush in a countersunk hole. Head width runs 0.285 to 0.312 in. and head height 0.084 to 0.1 in., dimensioned to ASME B18.6.3-1998, which is the standard 82 degree flat head countersink angle. If the hole in your plate or bracket is a plain drilled hole with no countersink, the head will stand proud and you want a round or pan head instead.
2) Are Metallics JFM95SS screws Buy American or ARRA compliant for a government job?
No. The JFM95SS is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic sourcing clause, this item will not satisfy it and you need a domestically produced fastener.
3) Should I use stainless or plain steel machine screws for outdoor and wash-down work?
Go stainless where moisture, wash-down, or weather is in play. The JFM95SS is 18-8 stainless, which is specified for general atmospheric corrosion resistance and is common in food processing machinery and refrigeration equipment. 18-8 also holds its strength better than plain steel when the application runs hot. For dry interior work inside a finished building, a zinc plated steel machine screw does the same mechanical job.
4) Do the JFM95SS screws come loose or in a pack, and what is the minimum order?
They ship in a jar of 100, and 100 is the order minimum. Figure roughly a half pound per jar at 0.52 lbs. Good item to keep on the truck or in the MRO crib since the 8-32 thread covers most device and cover plate work.
5) Do I need a special driver for these slotted machine screws?
A standard flat blade screwdriver drives them. The slot measures 0.045 to 0.054 in. wide and 0.029 to 0.045 in. deep, so a thin keystone or cabinet tip blade seats better than a fat tip. Slotted drive is a hand-driving head, not a bit you want to run with an impact gun.
6) What trades actually use the Metallics FM series machine screws?
The FM and FMP series is built for the electrical, plumbing, heating and air conditioning trades. Typical uses are mounting devices, plates, straps, brackets, and equipment panels where a tapped hole or a nut is on the other side. A machine screw needs a mating thread, so it is not a substitute for a sheet metal or self-tapping screw into bare sheet.
