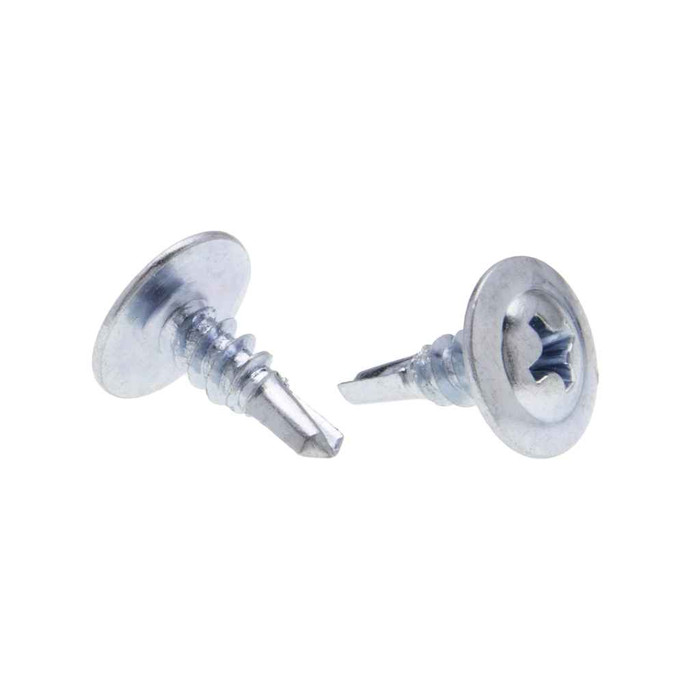

Metallics WDS4M 8 x 1-1/4 in. Wafer Head Phillips Drywall Screws - Steel Zinc - 1000qty

Metallics WDS4M 8 x 1-1/4 in. Wafer Head Phillips Drywall Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: WDS4M
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.16
$0.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
8 x 1-1/4 in. Wafer Head Phillips Drywall Screws - Steel Zinc - 1000qty

  • Kit Components

    • Power Bit

  • Additional Notes

    • Other sizes and quantities available by request | There is no single standard for Wafer head dimensions. These values are offered as a guide; deviations from these specifications may occur. | This table is only a guide and does not constitute a warranty of any type .

  • Features

    • Includes Free Power Bit
    • Wafer Head with Phillips Drive
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • Steel Zinc Material
    • 8 Diameter, 1-1/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
1000 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Type:
Wafer
Fastener Head Width:
0.359 - 0.38 in.
Fastener Length:
1/1/04
Field Application:
Metal-To-Metal Application, Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Wafer_Hd_Phil_Self-Drill_Tap_Dry_Scr.pdf
Order Minimum Imperial:
1000
Order Minimum Uom Imperial:
TH
Pack Type:
Box
Panel Thickness:
0.350 - 0.100 IN
Phillips Recess Depth:
0.255
Phillips Recess Diameter:
0.176 - 0.189
Product Group:
Fasteners
Product Height:
7.25 in
Product Length:
4.5 in
Product Weight:
6.73 lbs
Product Width:
4.5 in
Screw Point Type:
Drill Point
Sub Division:
Electrical-E H2
Thread Per Inch:
18
Thread Standard:
SAE J78 - 2013
Thread Type:
UNF
Torsional Strength:
42 lb-in minimum
Wafer Thickness:
0.025 - 0.035 IN
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Drywall Screw
Type2:
Type BSD Self-Drilling & Tapping Drywall Screw
Series:
WDS
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Drywall Screw
Product Material:
Steel Zinc

Metallics WDS4M – Frequently Asked Questions

1) Will the Metallics WDS4M wafer head screw drill into steel studs without pre-drilling?
Yes. The WDS4M is a Type BSD self-drilling and tapping screw with a drill point, so it cuts its own hole in metal stud flange without a pilot. Metallics rates the panel thickness range at 0.350 to 0.100 in. Drill time is about 2.5 seconds through a 1 mm plate, and the thread count is 18 per inch.
2) Do the Metallics WDS4M drywall screws qualify for a Buy American or ARRA-funded project?
No. The WDS4M is listed as not Buy American compliant and not ARRA compliant, so it will not satisfy domestic-content requirements on federally funded work. Specify a domestically produced self-drilling screw for those jobs.
3) What driver bit do I need for the Metallics WDS4M screws, and is one included?
A #2 Phillips bit drives them, and a free power bit ships with the box, so a crew can open it and go. The Phillips recess is 0.255 in. deep and 0.176 to 0.189 in. in diameter.
4) How many Metallics WDS4M screws come in a box?
They are boxed in 1000-piece quantities, which is the order minimum. Metallics notes other sizes and quantities are available by request.
5) Will a #8 x 1-1/4 in. self-drilling screw strip or snap when run with an impact driver?
The WDS4M carries a minimum torsional strength of 42 lb-in and a case hardness of Rockwell C32-40, made from AISI 1016-1024 steel to the SAE J78-2013 thread standard. That is the published limit, so set your clutch rather than relying on an impact's full output. Metallics notes minimum torques are the same for stainless and steel self-drill screws.
6) Are Metallics WDS4M screws suitable for exterior or wet locations?
They are steel with a zinc finish, which is a dry interior coating. For outdoor, damp or corrosive locations choose a stainless self-drilling screw instead. Country of origin is listed as multiple.
7) How much does a box of 1000 Metallics WDS4M screws weigh?
The box is listed at 6.73 lbs, with carton dimensions of 7.25 x 4.5 x 4.5 in. Useful if you are staging material by floor or shipping a pallet of boxes to a job site.
