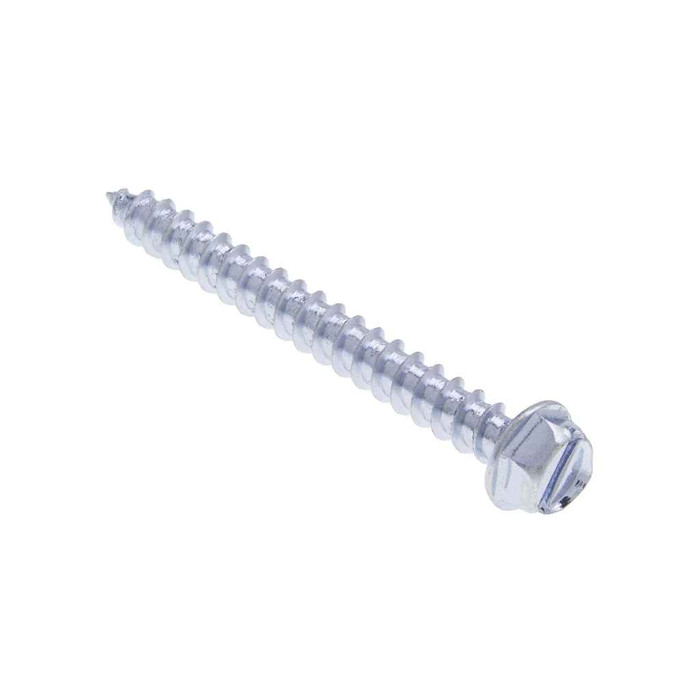

Metallics JDS154SS 8 x 1 in. 1/4 Indented Hex Head Slotted Sharp Point Tapping Screws - 18-8 Stainless - Each

Mechanically yes, but watch the metallurgy. The JDS154SS is 18-8 stainless, and fastening stainless parts to aluminum or steel can set up a galvanic couple that corrodes the softer base metal in some environments. Outdoors, in coastal air, or anywhere there is standing moisture, that matters. In dry interior work it generally does not. If the base metal is aluminum and the location is wet, an isolating washer or a matching-metal screw is the safer call.

The JDS154SS is a Type A tapping screw with a gimlet (sharp) point, so it forms its own thread as it drives. In thin sheet metal it will start on its own; in heavier gauge stock a pilot hole sized to the screw's root is still the right practice. Thread count is 15 threads per inch, which is the coarse Type A spacing meant for sheet metal rather than a machine-screw tap.

Metallics lists the JDS154SS as both Buy American compliant and ARRA compliant. Country of origin is recorded as multiple, so if your specification requires a single named origin on the submittal, that is the point to confirm with the paperwork for the lot you receive.

A 1/4 inch nut setter. The indented hex head measures 0.244 to 0.25 inch across the flats, 0.272 across the corners, with a head height of 0.096 to 0.11 inch. It is also slotted, so a flat blade works where a nut driver will not reach: slot width is 0.045 to 0.054 inch and slot depth 0.052 to 0.066 inch, which suits a thin cabinet-tip screwdriver rather than a wide blade.

They ship 100 to a jar, and 100 count is the order minimum. The packed jar weighs 0.54 lbs.

That is the intended use. The JDS154SS is a #8 diameter, 1 inch long screw with an integral washer face 0.322 to 0.348 inch in outside diameter and 0.019 to 0.031 inch thick, which spreads load over a slotted strap, box ear, or thin bracket without needing a loose washer. The 1 inch length gives enough thread for sheet metal and light framing while staying short enough not to foul anything behind the box.

Head and body dimensions follow ASME B18.6.3-2010, and the threads follow ASME B18.6.4. That means the 1/4 inch hex head and the Type A thread form are to spec and interchangeable with any other compliant #8 Type A screw. One caveat Metallics notes: dimensions for the #9 diameter in this family fall outside ASME B18.6.4.

The JDS154SS is case hardened to Rockwell C28-38, which is why it taps its own thread in sheet metal rather than deforming. 18-8 stainless is still softer than a hardened carbon steel self-drilling screw, so keep driver speed moderate and do not drive it into heavy plate. For thick structural steel, a self-drilling screw rated for that gauge is the right tool instead.

Yes. The JDS series runs other diameters and lengths beyond the #8 x 1 inch JDS154SS, and other pack quantities, available by request. Give the diameter, length, and count you need and it can be quoted against the series.
