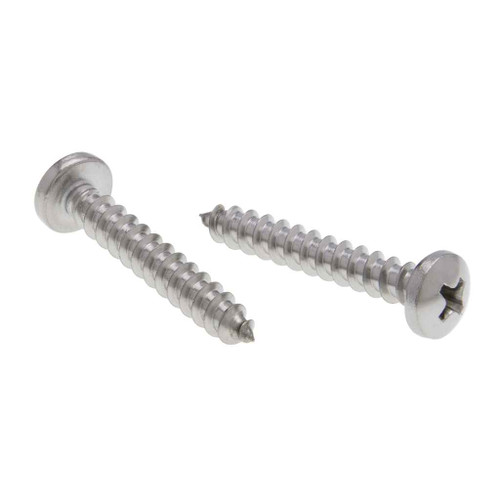

8 x 1 in. Pan Head Phillips Tapping Screws - 18-8 Stainless - 100qty
Additional Notes
- Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4
Features
- Fastening stainless steel parts to aluminum or steel can cause a type of corrosion known as a galvanic couple in some environments.
- 18-8 Stainless Material
- Pan head with Slotted Drive
- 8 Diameter, 1" Length
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 100 units
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.6.3-2013
- Division:
- Electrical H1
- Drive Type:
- Phillips
- Driver Size:
- #2
- Fastener Head Height:
- 0.105 - 0.115 in.
- Fastener Head Type:
- Pan
- Fastener Head Width:
- 0.306 - 0.322 in.
- Fastener Length:
- 1
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Height:
- 2.15 in
- Language Code:
- EN
- Length:
- 3 in
- Material:
- 18-8 Stainless
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slotted_Phillips_Self_Tap_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Phillips Recess Depth:
- 0.108
- Phillips Recess Diameter:
- 0.169 - 0.182
- Phillips Recess Width:
- 0.03
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Height:
- 54.61 MM
- Product Length:
- 76.2 MM
- Product Series:
- JSTSP
- Product Weight:
- 263 g
- Product Width:
- 76.2 MM
- Screw Point Type:
- Gimlet Point
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 15
- Thread Standard:
- ASME B18.6.4
- Torsional Strength:
- 39 lb-in minimum
- Type:
- Type A Tapping Screw
- Weight:
- 0.58 lbs
- Width:
- 3 in
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Type A Tapping Screw
- Type2:
- Type A Tapping Screw
